内容包装
| 安装支架 |
Y |
| 包括IR接收器 |
Y |
| 包括 IR 红外线发射增强器 |
Y |
技术细节
| 最大传输距离 |
70 m |
| HDCP |
Y |
| 阻抗 |
100 Ω |
| 带宽 |
10.2 Gbit/s |
| 类型 |
AV transmitter & receiver |
| 可支持的电缆类型 |
Cat5e, Cat6a, Cat5, Cat6 |
| 音频系统 |
Multichannel |
端口 & 界面
| RJ - 11端口数量 |
2 |
| 遥控器（IR）输入 |
2 |
| 遥控器（IR）输出 |
2 |
| RJ-45输入端口 |
1 |
| RJ-45输出端口 |
1 |
| HDMI输入 |
1 |
| DC-IN插口 |
Y |
重量和尺寸
| 接收器尺寸（宽 x 深 x 高） |
109 x 64 x 15 mm |
| 接收器的重量 |
170 g |
| 发射器重量 |
170 g |
| 发射器尺寸（宽x深x高） |
109 x 64 x 15 mm |
另外
| 包括 AC 适配器 |
Y |
| 开/关切换钮 |
Y |
| 以太网连接器 |
Y |
| 颜色深度 |
36 bit |

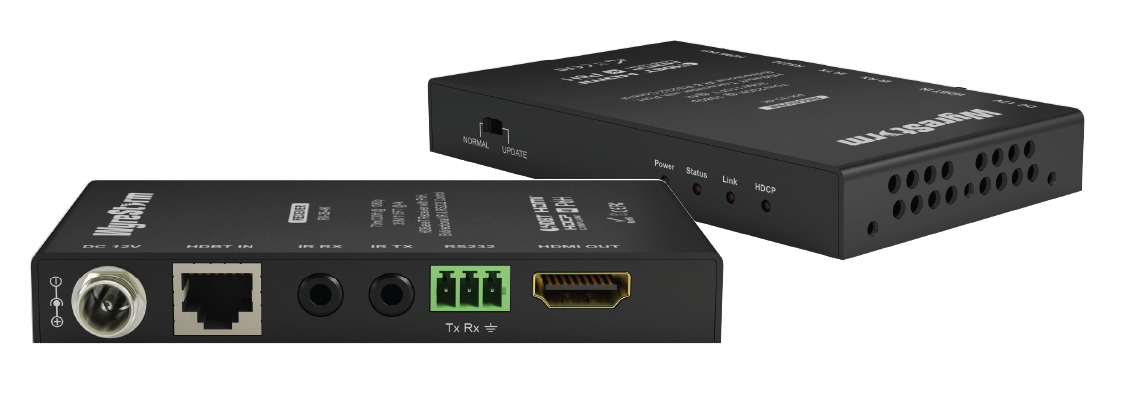

HDBaseT 4K UHD Extender Set with 2-Way IR, RS-232 and PoH (4K to 35m/114ft - 1080p to 70m/230ft)
Featuring powerful, yet cost-effective Class B HDBaseT technology for projects that demand all the benefits of HDBaseT transmission, the EX-35-4K supports 70m/230ft transmissions of 1080p@60Hz with 36bit deep color, HD audio, 100w remote power from transmitter to receiver and bidirectional IR and RS-232 pass-through, all along a single Cat5e/6 cable.
4K UltraHD resolutions of both 3840x2160 and 4096x2160 are supported up to 35m/115ft.
The switchable RS-232 port selector on both the transmitter and receiver also allows for firmware updates. 18v power connectivity is offered via a threaded DC power port for standard and locking DC power plugs.
Transmission and operational status is indicated with front panel LEDs: Power, signal status for established display connection, HDCP presence in the signal, and HDBaseT link indicator that allows the strength of transmission between source and display to be confirmed.
WyreStorm 4k UltraHD HDBaseT solutions offer the flexibility and compatibility demanded in today's wide range of applications. Combining ease of use, reliability and cost-efficiency WyreStorm is the top choice for residential or commercial integrators world-wide.
