技术细节
| 光圈范围 |
3.2 - 4.5 |
| 测量时间 |
1.5 s |
| 内置仪器协议 |
0.3 E |
| 测量几何学 |
45°/0° |
| 线性 |
+/- 0.01D |

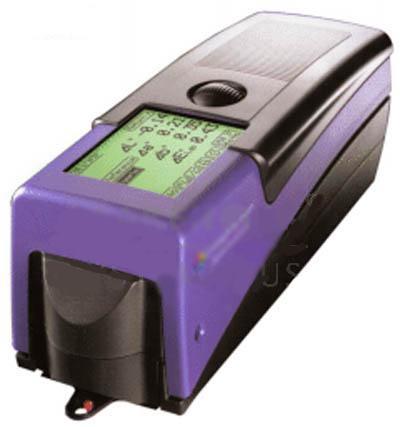

Densitometer SpectroEye UVCut
SpectroEye combines the ultimate in measurement accuracy with exceptional ergonomics and user-friendliness. This handheld, portable spectrophotometer offers all the colorimetric functions needed to accurately measure and control special colors, along with all the densitometric functions needed to quickly and easily monitor and control color on-press.
With the internal high spectral resolution of 3.3nm, SpectroEye detects even the smallest color deviations. SpectroEye is equipped with a ring illumination, so that the positioning direction of the spectrophotometer is not critical. This is very crucial in measuring on uncoated substrates. To ensure optimum measurement accuracy at all times, a white reference tile is integrated, allowing automatic calibration without user intervention.
SpectroEye is the ideal tool to help you reduce waste and stoppages. It offers all the same functions you've been performing with your densitometer - density, trapping, dot gain, and much more, as well as the time saving auto-function which automatically recognizes which measuring function was selected and shows the corresponding values for density, color trapping, or dot gain.
- Densitometric functions
- Densitometric measurement of special colors
- BestMatch function—for adjusting the color of ink on press through in thickness or concentration
- Colorimetric functions
- Color difference equations
- Metamerism
- Absolute and relative dye strength
- Whiteness and yellowness indices
