处理器
| 处理器频率 |
775 MHz |
| 图形处理器系列 |
AMD |
| CUDA |
N |
| 最大模拟分辨率 |
2048 x 1536 pixels |
| 最大数字分辨率 |
2560 x 1600 pixels |
内存参数
| 图形适配器内存类型 |
GDDR5 |
| 数据宽度 |
128 bit |
| 内存时钟速度 |
4000 MHz |
性能
| DirectX版本 |
11 |
| OpenGL版本 |
3.2 |
| 最高着色模型版本 |
5.0 |
| PhysX |
N |
| 集成电视调谐器 |
N |
| HDCP |
N |
端口 & 界面
| 接口类型 |
PCI Express 2.1 |
| DisplayPort 数量 |
1 |
| HDMI端口数量 |
1 |

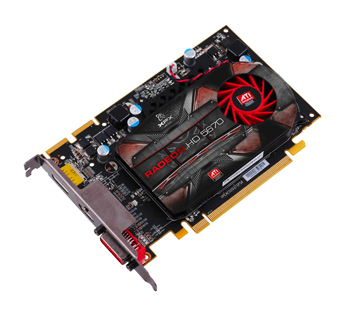

ATI Radeon HD 5670, PCI-E, 775 Mhz, 128Bit 512MB DDR5 4000 Mhz, 2560x1600
Enjoy the Best of Both Worlds
All gamers were not created equal—until now. XFX is pleased to introduce the XFX ATI Radeon™ 5670 HD Graphics Card, offering the latest technology at a price that is transforming not only how the game is played, but who’s playing it. Designed for power users who want an immersive 3D gaming experience as well as powerful content and entertainment capabilities, the XFX ATI Radeon™ 5670 HD Graphics Card delivers the ultimate work/play punch. Capable of supporting the latest DirectX® 11 games, users enjoy significant gains in gaming potential over DirectX® 10.1. And, with Microsoft® 7 support, users enjoy fast and easy video playback, editing and content transfer. Best of all, this power is packed in an energy efficient single-slot card that’s easy to install and requires no external power supply.
KEY FEATURES
- Up to 1 GB GDDR5 memory;
- ATI Eyefinity technology with support for up to three displays (1, 3);
- Windows® 7 support;
- ATI Stream technology (2);
- Designed for DirectCompute 11 and OpenCL;
- Accelerated Video Transcoding (AVT) (2, 4)
- Compliant with DirectX® 11 and earlier revisions;
- Supports Open GL 3.2;
- 40 nm Process Technology;
- ATI CrossFireX™ multi-GPU support for highly scalable performance (5, 8);
- ATI Avivo™ HD video and display technology (6, 7);
- Dynamic power management with ATI PowerPlay™ technology (6);
- DisplayPort, HDMI, 2xDualLink-DVI;
- PCI Express® 2.1 support.
1) To enable a third display you require one panel with a DisplayPort connector.
2) Requires application support for ATI stream technology.
3) ATI Eyefinity technology works with games that support non-standard aspect ratios which is required for spanning across three displays.
4) Digital rights management restrictions may apply.
5) ATI CrossFireX™ technology requires an ATI CrossFireX Ready motherboard, an ATI CrossFireX™ Bridge Interconnect(s) and may require a specialized power supply.
6) ATI PowerPlay™, ATI Avivo™ and ATI Stream are technology platforms that include a broad set of capabilities offered by certain XFX Radeon™ HD GPUs. Not all products have all features and full enablement of some capabilities and may require complementary products.
7) HD capable display required.
8) The HD 5670 1.0GB graphics card supports ATI CrossFireX. However the HD 5670 512MB graphics card does not support ATI CrossFireX.
