技术细节
| 防水深度可达 |
1 m |
| 频道/通道 数量 |
3 |
| 显示类型 |
LCD |
| 铃声数量 |
50 |
| 可充电式 |
Y |
| 操作频率 |
430 MHz |

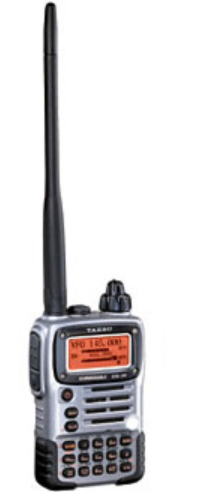

VX-7R, 50/144/430 MHz, 5 W, Dual Receive
<b>THE WORLD'S FIRST SUBMERSIBLE AMATEUR HAND-HELD</b>
Protected against water ingress by a wide array of rubber gaskets and other weatherproofing techniques, the VX-7R is rated for 30 minutes of submersion at a depth of 3 feet (JIS-7), plus a tough magnesium body with rubber bumper pads, making it ideal for outdoor use. Plus you get Dual Receive, 50/144/430 MHz operation plus wide-band receive coverage, a full color status indicator Strobe, and an "Internet" key for quick access to the exciting new WIRES™ repeater-internet linking system.
<b>Unmatched Weatherproofing</b>
The VX-7R case, keypad, speaker, and connectorts are carefully sealed to protect the internal circuitry against water damage. And the optional CMP460A Speaker/Microphone, like the transceiver itself, is rated for 30 minutes of submersion at a depth of up to three feet.
The VX-7R is available in both Silver (VX-7R) and Black (VX-7RB) versions.
<b>50/144/430 MHz: 5 Watts of Power</b>
Utilizing a reliable FET power amplifier circuit, the VX-7R provides a full 5 Watts of power output on the 50, 144, and 430 MHz Amateur bands, with bonus coverage of the 222 MHz band at 300 mW (USA version only). And for 6-meter AM enthusiasts, you also get 1 Watt of carrier power on the 50 MHz band. Four power levels may be selected, each offering its own degree of battery conservation.
<b>Dual Receive</b>
The VX-7R is capable of four modes of Dual Receive, including simultaneous reception of (1) two VHF frequencies; (2) two UHF frequencies; one VHF and one UHF frequency; or one "general coverage" frequency and one "Ham" frequency.
And you can set up the VX-7R to reduce the audio level on the "Sub" band, if you like, when a call is received on the "Main" band.
<b>The Most Memories Ever</b>
Sporting the most memory capability of any Amateur transceiver, the VX-7R includes over 900 memory channels, yet access is simple and intuitive, thanks to the 8-character labeling capability. These memories include 450 "regular" memories, 10 "One-Touch" memories, 40 programmable band-edge-limit memories 12 "Home" channels, 10 Weather Band memories, 89 Shortwave Broadcast preset memories, 280 Marine channels, and 10 "Hyper" memories that store complete transceiver configuration data.
<b>The Most Dazzling Display Ever</b>
No Amateur transceiver has a display that even compares to the VX-7R's 132 x 64 dot matrix disaply. Providing clear, easy-to-read indication of both the Main and Sub band frequencies, operating mode, and S-meters for both bands, the display includes an unparalleled array of graphical and pictorial tools that make operation a breeze.
