超低音音箱
| 超重低音扬声器类型 |
Active subwoofer |
| 超重低音功率有效值 |
100 W |
| 超重低音炮阻抗 |
6 Ω |
重量和尺寸
| 前扬声器重量 |
480 g |
| 中置扬声器尺寸（宽x深x高） |
291 x 103 x 101 mm |
| 超重低音扬声器尺寸（宽x深x高） |
262 x 299 x 264 mm |
| 超重低音炮重量 |
7000 g |
| 中央扬声器重量 |
680 g |
| 卫星扬声器重量 |
480 g |
| 卫星音箱尺寸（宽x深x高） |
115 x 88 x 176 mm |
| 前置扬声器尺寸（宽 x 深 x 高） |
115 x 88 x 176 mm |
卫星音箱
| 壁挂式卫星音箱 |
Y |
| 卫星功率有效值 |
100 W |
| 卫星音箱数量 |
2 |
| 卫星扬声器阻抗 |
6 Ω |
前置扬声器
| 前置扬声器壁挂式 |
Y |
| 前置音箱RMS功率 |
100 W |
| 前置扬声器阻抗 |
6 Ω |
中置扬声器
| 中置扬声器壁挂式 |
Y |
| 中央扬声器电源 |
100 W |
| 中央扬声器阻抗 |
6 Ω |

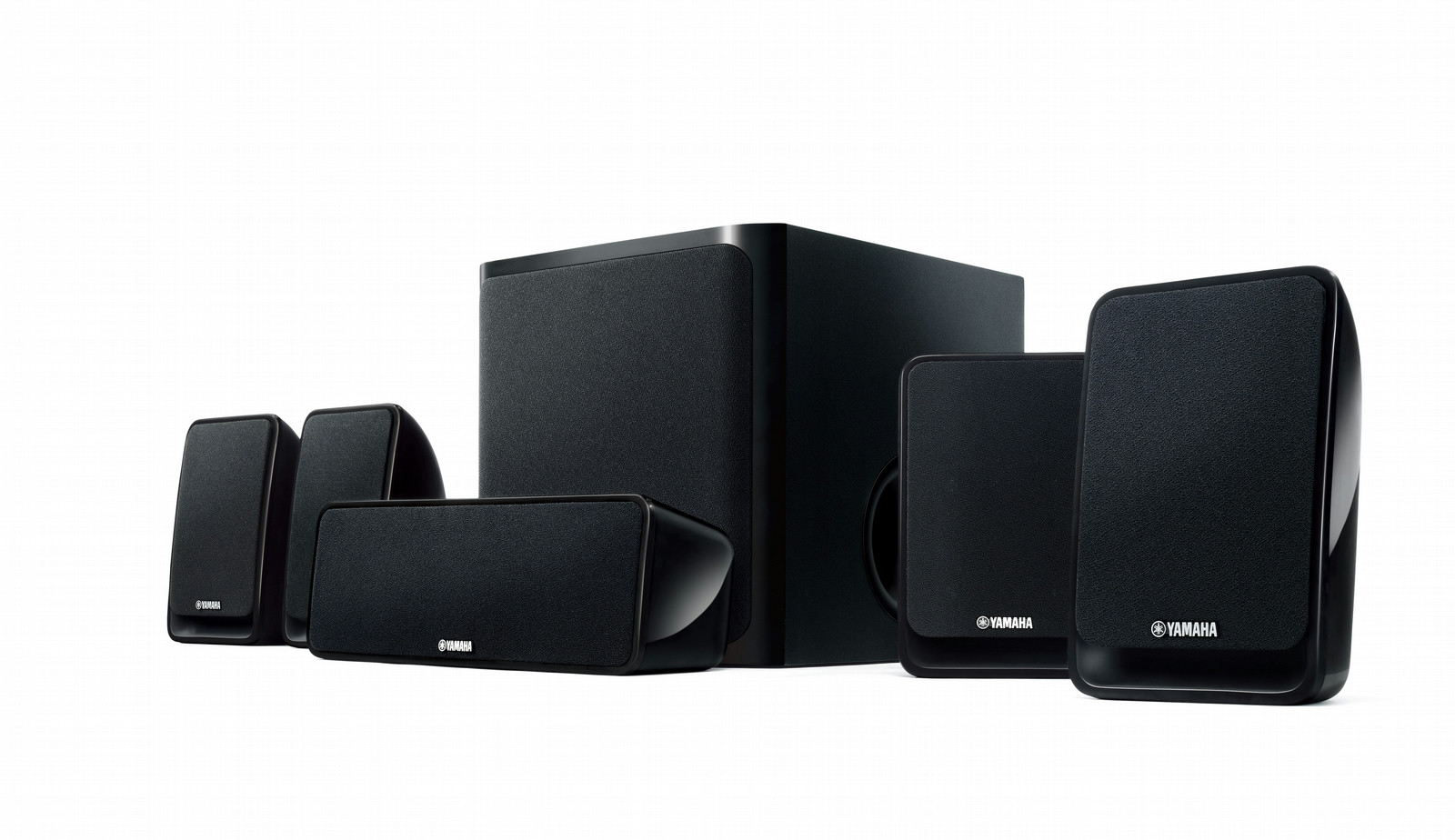

5.1, 400W RMS, 30-25000Hz, 6 ohms, 9.6kg, Black
- 5.1-channel stylish speaker package
- Stylish, curvy design looks fresh in any interior
- Glossy black cabinets match the latest TV designs
- HD Audio compatibility and good sound from stylish speakers
- Subwoofer delivers clear, expansive bass thanks to its Advanced YST design
- Wall mountable (front, center and surround)
<b>Curvy Design for Chic Interiors</b>
The surround speakers have a curved shape that blends nicely with any interior. They are just the right size for good sound quality and convenient placement in almost any location.
<b>Glossy Black Cabinets</b>
The glossy black speaker cabinets are designed to complement the appearance of most of the latest flat-screen TVs.
<b>Wall mountable (front, center and surround)</b>
Keyhole openings in the back allow these speakers to be neatly mounted on a wall.
<b>HD Audio Compatible, for Great Movie Sound</b>
Compatible with HD audio sources, the NS-P20 delivers superb music and movie sound. The speakers are tuned to deliver a clear, soft sound that is pleasant to listen to for long periods.
<b>5.1-Channel Home theater Package</b>
These suitably sized speakers deliver a fullbodied, well-balanced sound. Affordable yet high quality, the NS-P20 is an excellent choice for setting up a home theater.
<b>Advanced YST for Awesome Deep Bass</b>
Yamaha’s exclusive Advanced Active Servo Technology (Advanced YST) generates incredible bass from small speaker enclosures. Advanced YST is the ideal method of combining amplifiers and speakers for maximum performance. This system’s advanced negative impedance converter intelligently adjust the negative impedance generation as the speaker moves, creating a hard, rigid cone that prevents deep resonant waves from leaking out of the speaker cone. This means the full power of the waves is forced out through the air port, resulting in clear, powerful bass.
<b>Linear Port</b>
Advanced YST produces rich bass sound, and the addition of a Linear Port reduces extraneous noise for even higher quality.
