中置扬声器
| 中置扬声器类型 |
2-way |
| 中央扬声器灵敏度 |
82 dB |
| 中心扬声器频率范围 |
90 - 46000 Hz |
| 中央扬声器电源 |
100 W |
| 中央扬声器阻抗 |
6 Ω |
重量和尺寸
| 前扬声器重量 |
4400 g |
| 中置扬声器尺寸（宽x深x高） |
305 x 125 x 133 mm |
| 中央扬声器重量 |
1800 g |
| 卫星扬声器重量 |
1800 g |
| 卫星音箱尺寸（宽x深x高） |
150 x 99 x 305 mm |
| 前置扬声器尺寸（宽 x 深 x 高） |
259 x 205 x 1043 mm |
卫星音箱
| 壁挂式卫星音箱 |
Y |
| 卫星扬声器灵敏度 |
82 dB |
| 卫星扬声器频率范围 |
90 - 46000 Hz |
| 卫星功率有效值 |
100 W |
| 卫星音箱数量 |
2 |
| 卫星音箱类型 |
2-way |
| 卫星扬声器阻抗 |
6 Ω |
前置扬声器
| 前置扬声器壁挂式 |
N |
| 前置扬声器灵敏度 |
82 dB |
| 前置音箱RMS功率 |
100 W |
| 前置扬声器类型 |
2-way |
| 前置扬声器阻抗 |
6 Ω |
| 前置扬声器的频率范围 |
90 - 46000 Hz |

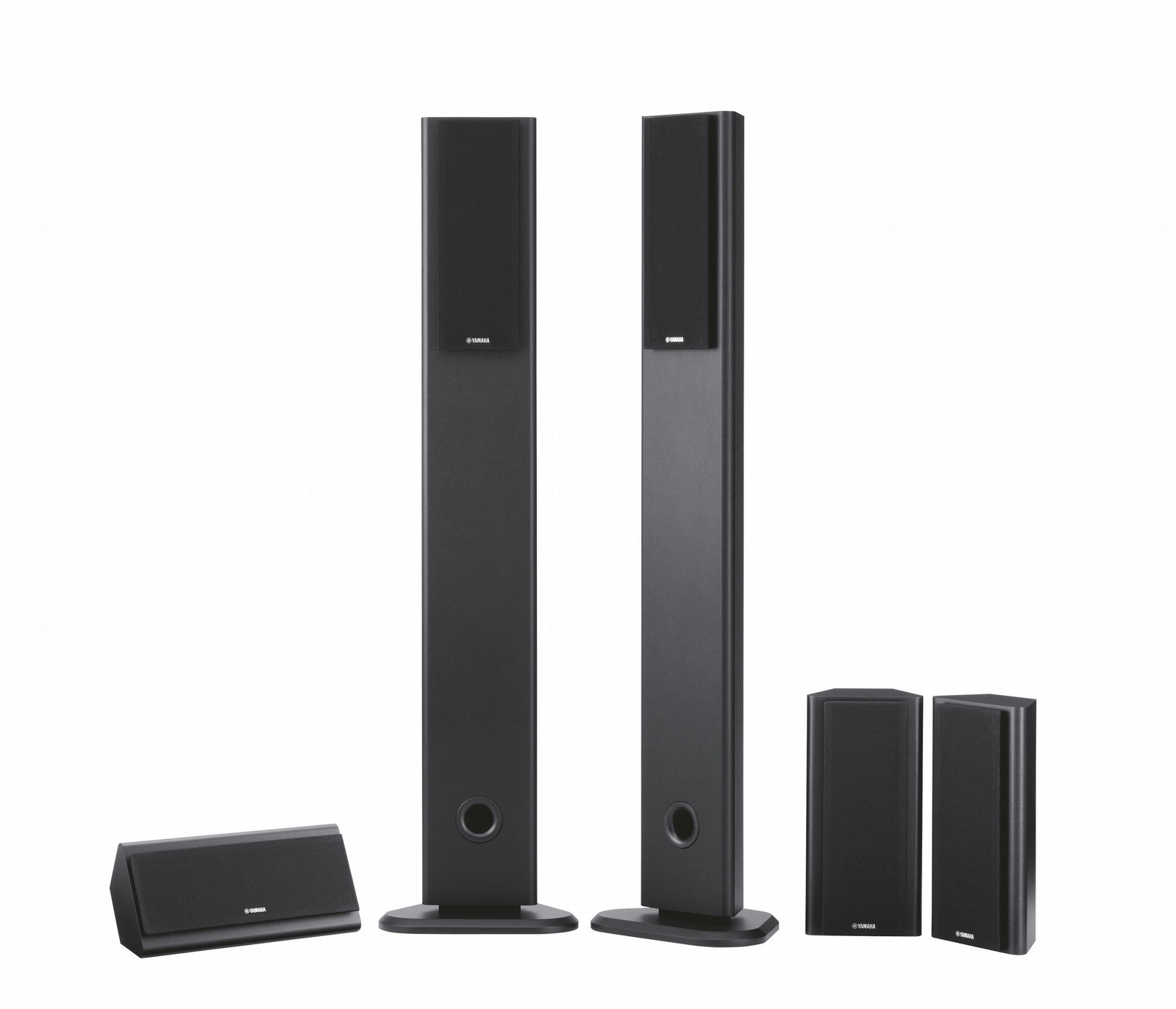

5.0, 90 Hz - 46 kHz, 6 ohms, 82 dB, 300W RMS, 8kg
<b>Stylish Design Matches Flat TVs</b>
The NS-F120 has an elegantly flat shape, measuring only 9.6cm (3-3/4”) deep. This makes it a perfect match for flat-screen TVs. Place one on each side of the TV for a stylish system that looks great in any room.
<b>Convenient Placement</b>
The NS-F120 has a triangular stand with rounded corners that makes it easy to position the speaker, even along a wall where the available space is narrow. The stand is also convenient for placing the speaker in a corner of the room.
<b>Wall Mounting (NS-B120, NS-C120)</b>
These speakers will fit easily on a rack, bookshelf or other convenient location. Their thin design also makes them easy to mount on a wall.
<b>Capable of Handling HD sources</b>
High quality parts and design enable the NS-PA120 to deliver the full sound potential of high definition sources such as Blu-ray Disc. Even if you do not currently use these sources, you may in the future, so your speakers have to be able to clearly reproduce the extra clarity that they provide.
<b>High Volume Wood Cabinet with Bass Reflex Port (NS-F120)</b>
Even with its flat shape, the NS-F120 has a large volume cabinet for powerful sound output. Made of real wood, it features a bass reflex port for enhanced bass sound. The rounded shape allows the sound to disperse smoothly for natural, full-bodied bass.
<b>High Quality Woofers and Tweeter</b>
Each speaker has two 6.5cm (2-1/2”) cone woofers and a 2cm (3/4”) silk dome tweeter. Using high quality parts, these units provide clean, faithful sound reproduction that is never harsh and will not cause listener fatigue even after hours of listening.
<b>Well-Designed Centre Speaker</b>
The NS-C120 has an angled shape that allows it to be placed facing upward, for ideal dispersion of dialogue and vocal sounds to the viewer.
<b>Large Speaker Terminals</b>
Because these speakers are designed for high quality HD sources, the speaker terminals are also high quality. They are large, threaded and gold-plated, for maximum signal transmission quality.
