超低音音箱
| 超重低音扬声器类型 |
Active subwoofer |
| 超重低音功率有效值 |
50 W |
技术细节
| 频率范围 |
30 - 30000 Hz |
| 阻抗 |
6 Ω |
重量和尺寸
| 前扬声器重量 |
3600 g |
| 中置扬声器尺寸（宽x深x高） |
276 x 118 x 111 mm |
| 超重低音扬声器尺寸（宽x深x高） |
290 x 327 x 292 mm |
| 超重低音炮重量 |
8000 g |
| 中央扬声器重量 |
730 g |
| 卫星扬声器重量 |
590 g |
| 卫星音箱尺寸（宽x深x高） |
112 x 116 x 176 mm |
| 前置扬声器尺寸（宽 x 深 x 高） |
230 x 230 x 1000 mm |
前置扬声器
| 前置扬声器灵敏度 |
85 dB |
| 前置音箱RMS功率 |
60 W |
| 前置扬声器类型 |
2-way |
中置扬声器
| 中央扬声器灵敏度 |
84 dB |
| 中央扬声器电源 |
30 W |

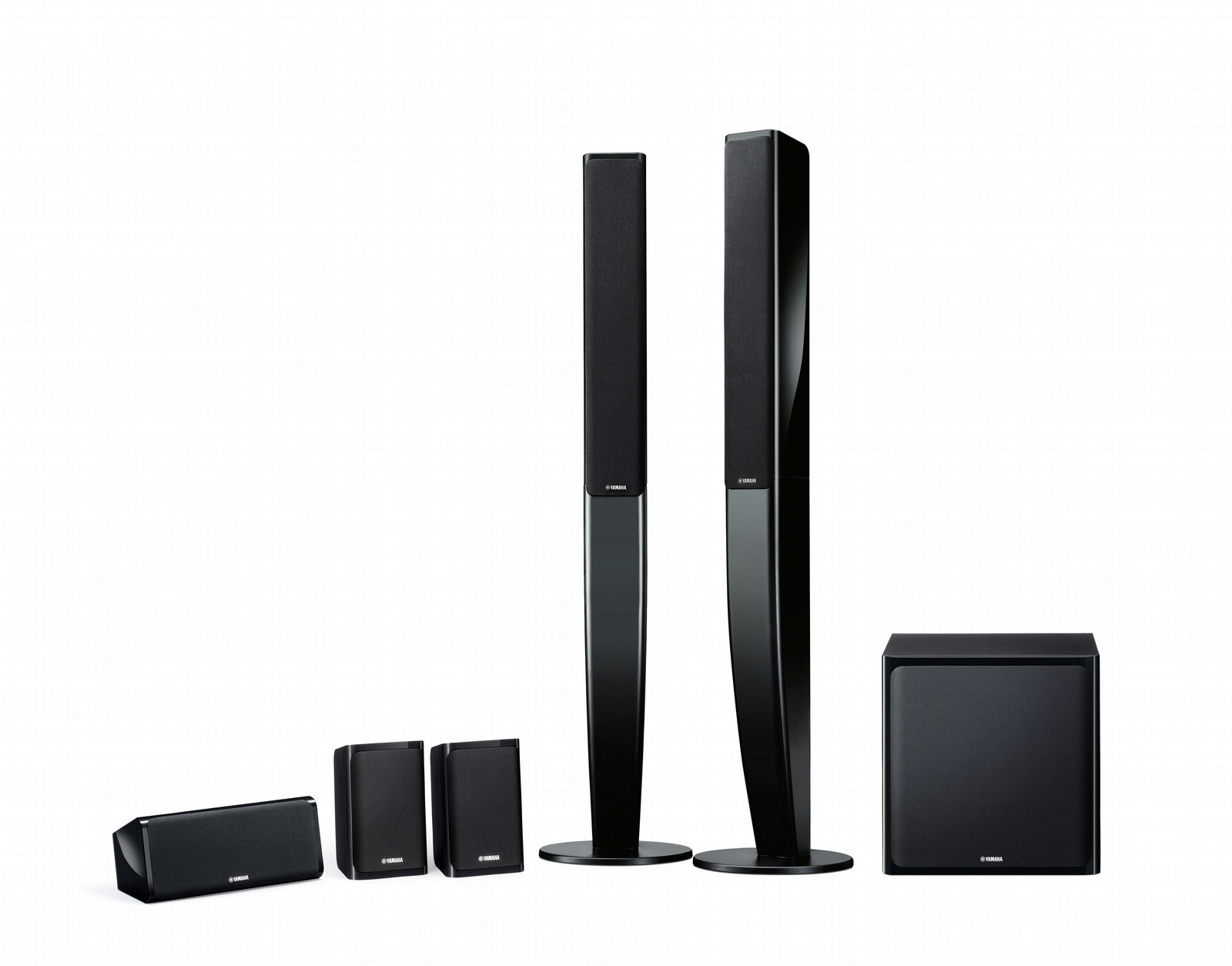

NS-PA40 - 5.1 Channel, 30 Hz–30 kHz, 50 W Subwoofer, Black
<b>5.1-Channel Speaker System Compatible with HD Audio Sources</b>
In addition to being able to reproduce multichannel (5.1-channel) audio, these speakers are capable of the high performance necessary to fully convey the power and detail of high definition audio sources.
<b>2-Way, 3-Speaker Front Speakers Deliver Rich Lows, Clear Dialogue and Expressive Vocals</b>
The front speakers have dual woofers tuned to match the centre and surround speakers, and a balanced dome tweeter, ensuring that they cover a wide frequency range. Utilising high quality materials and parts, they deliver strong, punchy bass, clear dialogue and vocals and clear highs, for maximum enjoyment of any source.
<b>Advanced YST II Produces Awesome Bass</b>
Advanced YST II combines negative-impedance and constantcurrent principles to drive the speaker cone with tight control. It optimises effective speaker impedance to maintain stable and accurate low range response and high sound pressure levels, for more natural and energetic bass reproduction.
<b>Front Speakers Have Slim, Strikingly Attractive Design</b>
Just 90mm (3-1/2") wide, and with round stands, the front speakers are easy to position in any room. The curvilinear form has the elegant beauty of a fine musical instrument and will add a smart touch to the interior.
<b>Designed to Enable Clean and Neat Wiring</b>
No unsightly cables hanging down from the front speakers — they are designed so that the cable will be hidden inside the speaker and come out from the back of the stand.
