输出
| 遥控器（IR）输出 |
2 |
| 超级视频输出 |
1 |
| 数字音频光学输出 |
1 |
| 复合视频输出 |
1 |
| 耳机输出端口 |
1 |
| 分量视频(YPbPr/YCbCr)输出 |
1 |
技术细节
| AirPlay |
Y |
| x.v.Color支持 |
Y |
| 支援色深技术 |
Y |
| 与苹果产品对接兼容性 |
Not supported |
| 音频回传通道（ARC） |
Y |
| RS - 232接口 |
Y |
| 屏幕显示 |
Y |
| 移动高畫質連結技术（MHL） |
Y |
| 手持式遥控器 |
Y |
无线电
| FM波段 |
87.5 - 108 MHz |
| AM波段范围 |
522 - 1.620 kHz |
| 支持波段 |
AM, FM |
音频
| 动态功率每声道（4Ohm） |
285 W |
| 动态功率每声道（8Ohm） |
165 W |
| 每通道输出功率(20-20KHz@8 Ohm) |
140 W |
| 前通道 |
7.2 |
| 前连接 |
Y |
| 音频数字/模拟转换器 |
24-bit/192kHz |
输入
| 遥控器（IR）输入 |
2 |
| HDMI输入 |
8 |
| 数字音频同轴i输入 |
3 |
| USB 端口数量 |
1 |
| 复合视频 |
5 |

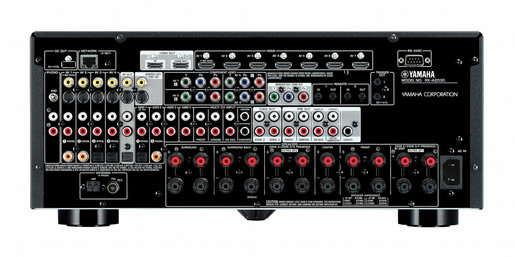

AVENTAGE RX-A3020 9.2-channel Network AV Receiver
- AVENTAGE AV Receivers: Designed to Deliver the Highest Levels of Audio Performance
- Aluminium Front Panel Offers Visual and Aural Benefits
- Anti Resonance Technology (A.R.T.) Wedge helps to ensure that vibrations do not affect sound quality
- H-shape cross member frame and rigid bottom frame
- Professional quality digital audio by ESS DAC
- 9-channel powerful surround sound and full discrete amp configuration
- 220 W per channel (4 ohms, 1 kHz, 0.9 % THD, 1 ch driven [European Model])
- 140 W per channel (8 ohms, 20 Hz-20 kHz, 0.09 % THD, 2 ch driven)
- 220 W per channel (8 ohms, 1 kHz, 10 % THD, 1 ch driven, JEITA)
- MHL supports full HD video and audio from mobile phones and portable devices
- Network functions such as AirPlay, Napster®* music streaming service (*Music service availability varies by region.)
- AV Controller app for operating various functions from a smartphone or tablet
- FLAC or WAV 192kHz / 24-bit audio playback
- High-resolution Music Enhancer further heightens musicality from the original content
- Advanced HDMI Zone Switching allows unprecedented AV switching to multiple zones
- HDMI (8 in [1 on front] ) / 2 out) with 3D and Audio Return Channel
- 4K Ultra HD Pass-through and Upscaling
- YPAO R.S.C. (Reflected Sound Control) sound optimisation with multi-point measurement
- Yamaha video processing optimises video content
- Versatile Zone control such as Zone 2 / 3 / 4 on / off, Zone GUI, Zone 2 / 3 video assign and Party mode
- ECO mode operation for about 20% less power consumption
