音箱棒音
| Full-range driver diameter (imperial) |
2 " |
| 音箱棒RMS功率 |
50 W |
| 全频驱动器数量 |
2 |
| 总谐波失真 |
10% |
| 阻抗 |
6 Ω |
超低音音箱
| 超重低音功率有效值 |
100 W |
| 无线低音炮 |
Y |
| 超重低音炮阻抗 |
5.5 Ω |
| 低音反射 |
Y |
| 超重低音箱位置 |
Separate |
| 超重低音扬声器类型 |
Active subwoofer |
| 含超重低音炮 |
Y |
重量和尺寸
| 音箱棒重量 |
2900 g |
| 超重低音炮重量 |
8100 g |
联网
| 蓝牙版本 |
2.1+EDR |
| 蓝牙 |
Y |
| 蓝牙模式 |
A2DP, SPP |
其他功能
| 超重低音扬声器尺寸（宽x深x高） |
290 x 292 x 316 mm |
| 音箱棒尺寸（宽x深x高） |
886 x 79 x 121 mm |
技术细节
| 手持式遥控器 |
Y |
| 频率范围 |
35 - 10000 Hz |
| Apple docking |
Y |
| 墙壁支架 |
Y |
| 推荐使用 |
TV |

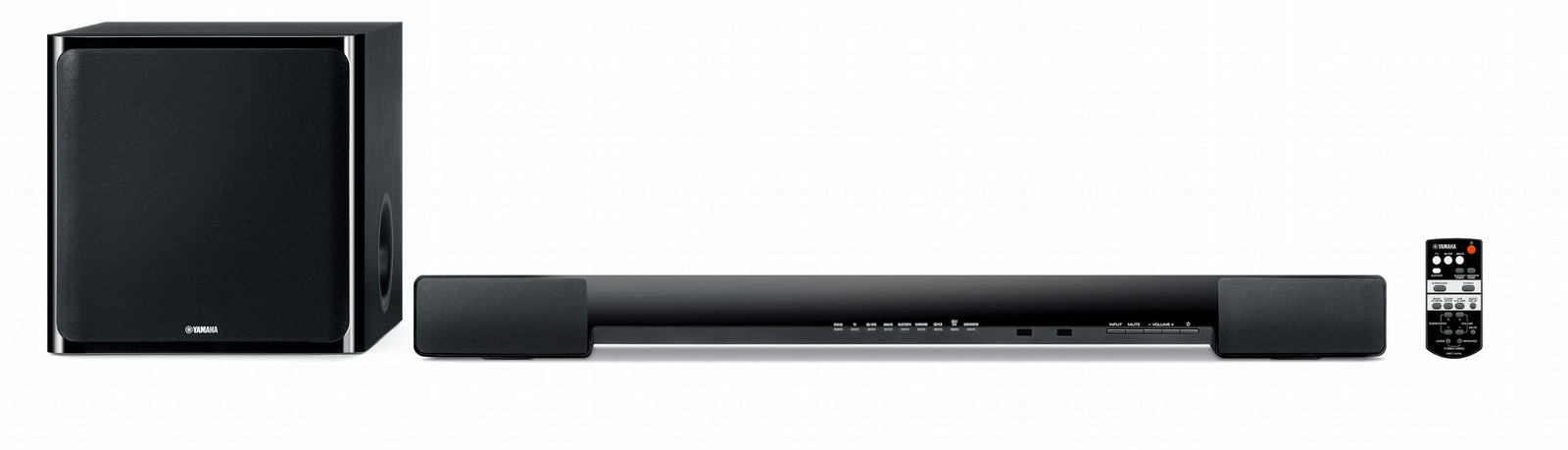

speaker system (2-1/8”), subwoofer (6-1/2”), 200W, ASX, DD/DPL, DTS, Advanced YST, Bluetooth 2.1 + EDR, Black
AIR SURROUND XTREME Provides Spacious Home Theatre Experience
AIR SURROUND XTREME is Yamaha’s unique virtual surround technology, delivering full, rich sound with a cohesive sense of surround placement. Enjoy immersive surround sound from all kinds of audio sources, from music to movies and sports.
Soundbar Produces Expansive and Clear Surround Sound
The soundbar houses a digital amp and two 5.5cm (2-1/8”) cone speakers with large magnets to ensure high sound clarity. Its superb structural design allows high capacity cabinet volume for very powerful and clear sound, even though the body is very slim. Yamaha’s original Advanced Bass Extension Processing delivers a surprising abundance of bass for the size, so you never feel the lack of strong bass sound.
Wireless Subwoofer with A-YST II Reproduces Deep Bass with Clarity and Power
This 16cm (6-1/2”) subwoofer features a large magnet and a front-firing configuration. Its high sound quality design takes advantage of Yamaha’s proprietary Advanced YST II and a Linear Port to produce deep and smooth bass. The circuit board has an ideal grounding pattern that ensures stable current supply for prodigious bass output. This subwoofer is capable of delivering powerful movie effect sounds and rich, deep bass.
Clear Voice Makes Dialogue and Narrations Easy to Listen to
Clear Voice raises the level of dialogue and narrations while maintaining overall sound quality. Movies and TV shows, sports commentary and news broadcasts are more clearly audible.
UniVolume Maintains the Same Volume Level
This welcome feature, made possible by Yamaha-developed technology, maintains a consistent volume level between different channels, or different network sources such as YouTube.. It can be switched on and off.
HOME THEATER CONTROLLER App for Easy Operation
The YAS-203 is compatible with a free app controller for iOS and Android. Its easy-to-see and easy-to-use operating screen uses icons to let you easily perform a variety of operations including setting surround programmes or sound quality while watching your smartphone or tablet screen.
Bluetooth Wireless Music Streaming from Your Smartphone or Tablet
Enjoy music from your smartphone or tablet wirelessly, with the full surround sound experience of the YAS-203 And with support for aptX™ audio coding, Bluetooth performance is better than ever, delivering full audio bandwidth for sound quality the same as wired listening with both compressed and non-compressed sources. In addition, a Bluetooth standby mode provides the convenience of having the YAS-203 turn on and off automatically.
IR Flasher for TV Remote Signal Transmission
Sending the TV’s remote signal through the sound bar (TV Remote Repeater function) This function should be enabled when you place the sound bar in front of your TV and you cannot operate your TV with the TV’s remote control.
Learning Function Allows Operation with the TV Remote Control
The YAS-203 can “learn” the TV remote control signal, so you can use the TV remote control to turn the YAS-203 on and off, adjust its volume, and even control the mute function.
Stylish Design Brings Both Elegance and Quality
The elegant and sophisticated design is exemplified by the gently curved lines of the front panel. The top panel features a high-quality contrasting textured and gloss finish, highlighting the presence of the left and right cabinets. Bring elegance and quality to the space around your TV.
Wireless Subwoofer Allows Flexible Placement
The Wireless Subwoofer does not have to be connected to the Soundbar, so setup and placement are faster and easier. This is a convenient subwoofer that delivers powerful, high quality bass sound.
Low Style Design Further Reduces Height, for Convenient Positioning in Front of a TV Set
With a height of only 79mm (3-1/8"), the Soundbar can be easily positioned in front of a TV. If you would like the Soundbar to straddle the TV stand, you can attach the stand to the Soundbar.
The Soundbar Can Also Be Mounted on a Wall
If the TV is mounted on a wall, you can mount the Soundbar just below it for a neat, elegant appearance.
