超低音音箱
| Subwoofer driver diameter (imperial) |
6.5 " |
| 超重低音功率有效值 |
50 W |
| 无线低音炮 |
N |
| 超重低音扬声器的峰值功率 |
100 W |
其他功能
| Satellite speaker driver diameter |
2.75 " |
| Centre speaker driver diameter |
2.75 " |
| 环绕扬声器尺寸（宽x高x深） |
112 x 176 x 116 mm |
| 环绕扬声器重量 |
590 g |
中置扬声器
| Center speaker woofer diameter (imperial) |
2.75 " |
| 中央扬声器电源 |
30 W |
| 中央扬声器灵敏度 |
84 dB |
| 中置扬声器类型 |
1-way |
| 中置扬声器峰值功率 |
100 W |
音频
| 音频数字/模拟转换器 |
24-bit / 192kHz |
| 总谐波失真 |
0.9% |
卫星音箱
| 卫星功率有效值 |
30 W |
| 卫星扬声器灵敏度 |
83 dB |
| 卫星音箱峰值功率 |
100 W |
| 卫星音箱类型 |
1-way |
端口 & 界面
| 复合视频 |
5 |
| 分量视频(YPbPr/YCbCr)输出 |
1 |
| 数字音频光纤入 |
2 |
| 数字音频同轴i输入 |
2 |
| 耳机输出端口 |
1 |
| 复合视频输出 |
1 |
| 分量视频(YPbPr/YCbCr)输入 |
2 |
| HDMI输入 |
4 |
重量和尺寸
| 前置扬声器尺寸（宽 x 深 x 高） |
112 x 116 x 176 mm |
| 卫星音箱尺寸（宽x深x高） |
112 x 116 x 176 mm |
| 卫星扬声器重量 |
590 g |
| 中央扬声器重量 |
730 g |
| 超重低音炮重量 |
8000 g |
| 超重低音扬声器尺寸（宽x深x高） |
290 x 327 x 292 mm |
| 中置扬声器尺寸（宽x深x高） |
276 x 118 x 111 mm |
| 前扬声器重量 |
590 g |
| 主机身尺寸（宽 x 深 x 高） |
435 x 315 x 161 mm |
| 主机重量 |
8100 g |
光盘驱动器
| 包含DVD播放器/录音机 |
Not included |
| 光盘类型支持 |
N |
前置扬声器
| 前置扬声器类型 |
1-way |
| 前置音箱RMS功率 |
30 W |
| 前置扬声器灵敏度 |
83 dB |
| 前置扬声器峰值功率 |
100 W |
技术细节
| 卡拉 OK |
N |
| 频率范围 |
30 - 25000 Hz |
| 与苹果产品对接兼容性 |
Not supported |
| 支援色深技术 |
Y |
| x.v.Color支持 |
Y |
| 屏幕显示 |
Y |

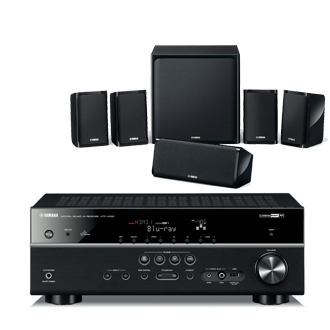

YHT-498 - 5.1 Channel, 1650W output power (HTR-4065), DLNA 1.5, Dolby TrueHD, HDMI, FM/AM Tuner, Black
Home Cinema Set includes AV-Receiver HTR-4065 and 5.1-Channel Home Theatre Speakerset NS-P40
[HTR-4065] Audio Features
- 5-channel powerful surround sound
- 575 W = 115 W x 5 (6 ohms, 1 kHz, 0.9 % THD, 1 ch driven)
- 400 W = 80 W x 5 (6 ohms, 20 Hz-20 kHz, 0.09 % THD, 2 ch driven)
- 675 W = 135 W x 5 (6 ohms, 1 kHz, 10 % THD, 1 ch driven, JEITA)
- HD Audio format decoding: Dolby TrueHD and DTS-HD Master Audio; Dolby Digital Plus and DTS-HD High Resolution Audio
- Discrete amp configuration
- Burr-Brown 192 kHz/24-bit DACs for all channels
- Direct Mode for high quality sound reproduction
- Low jitter PLL circuitry helps optimise sound imaging
[HTR-4065] Video Features
- 4K pass-through for next generation super high resolution images
- HDMI (4 in/1 out) with 3D and Audio Return Channel
- Supports Deep Colour (30/36 bit), x.v.Colour, 24 Hz Refresh Rate and Auto Lip-Sync compensation
[HTR-4065] Advanced Features
SCENE buttons with direct power on (BD/DVD, TV, Net and Radio)
- Quick and simple to use
- HDMI CEC powers up compatible TVs and Blu-ray Disc™ players
Network functions
- AirPlay allows music streaming from Mac, PC, iPod, iPhone, iPad
- AV Controller App for operating various functions from an iPod, iPhone, iPad or Android phones
- Access to: Internet Radio (vTuner): MP3, WMA Music files on PC/NAS: WAV, MP3, WMA, AAC, FLAC
- DLNA 1.5 certified
- Front panel USB Digital Connection for iPod, iPhone and iPad
- Charging of iPod, iPhone and iPad via USB when AV Receiver is off
- iPod/iPhone song titles displayed in English and Western European languages on the front panel
- Multi language colour OSD for improved visibility (English, German, French, Spanish, Russian and Chinese)
- HDMI CEC with versatile control from AV Receiver remote control
- YPAO sound optimisation for automatic speaker setup
- Audio input assign capability for HDMI and component video input
- Ability to change HDMI input while in Standby Through mode
- Audio Delay for adjusting Lip-Sync (0-250 ms)
- 40-station preset tuning/Auto preset tuning
- Preset remote unit
- Background Video feature (for Radio only)
[HTR-4065] Surround Realism
- HD Audio decoding with CINEMA DSP 3D (17 DSP programmes)
- Compressed Music Enhancer with CINEMA DSP
- Virtual Presence Speaker function for CINEMA DSP 3D surround without Front Presence Speakers
- Adaptive DRC (Dynamic Range Control) and Adaptive DSP level
- SILENT CINEMA and Virtual CINEMA DSP
[HTR-4065] Eco-Friendly Design
- ECO mode operation for about 20 % less power consumption
- Auto power down function with variable time setting
- Low standby power consumption of 0.1 W
[NS-P40] Features
- Ideal combination for HD 5.1-channel movie sound formats
- Excellent sound quality and elegant design to match flat screen TVs
- Compact design and flexible placement
- Advanced YST II subwoofer with Linear Port
- glossy black cabinet matches the latest TVs
