音箱棒音
| 低音炮 寸法 |
4.37 " |
| 高频扬声器直径 |
1.62 " |
| 高音喇叭驱动器数量 |
40 |
| 音箱棒RMS功率 |
120 W |
| 低音单元驱动器数量 |
2 |
| Woofer diameter |
110.9 mm |
| Tweeter diameter |
41.1 mm |
端口 & 界面
| 复合视频 |
3 |
| 分量视频(YPbPr/YCbCr)输出 |
1 |
| 复合视频输出 |
1 |
| 分量视频(YPbPr/YCbCr)输入 |
2 |
| RS - 232接口 |
Y |
其他功能
| 音箱棒尺寸（宽x深x高） |
1030 x 117.4 x 193.6 mm |
技术细节
| 手持式遥控器 |
Y |
| 与苹果产品对接兼容性 |
Not supported |

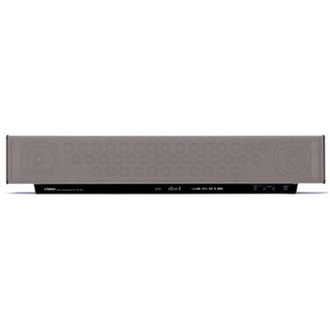

YSP-1100 - 120W, 40x Beam Drivers, RS-232C, DTS, On-Screen Display, 12.7kg, Silver
Multi-channel Surround Sound enjoyment from a single component! — A perfect match for 42” flat TVs and monitors.
Digital amplifier individually drives 40 sound beam drivers and two woofers to deliver true multi-channel surround sound for an elegant home theater system.
True surround sound
Sensational multi-channel sound from DVDs, other digital sources and even TV Digital amplifier built-in Large range of optimum listening positions thanks to a wider soundstage 7 CINEMA DSP programs Two Volume Mode with Night Listening Enhancer and TV Equal Volume mode Dolby Digital, DTS, Dolby Pro Logic II and DTS Neo:6 compatibility TruBass for more dynamic bass sound
Elegant, space-saving design
No need for numerous speakers and cables Slim profile matching for 42” flat TVs and monitors Can be wall mounted or placed in a shelf or rack Design is more elegant, less obtrusive than multiple speaker boxes
Advanced technology and functions
IntelliBeam automated system calibration with Direct Start My Beam mode directs the sound to listener's position at the touch of a button Four other sound modes: 5 Beam, 3 Beam, 3 Beam + Stereo, Stereo Custom installation with IR pass through, remote in and RS-232C interface Multi-language on-screen display (English, Spanish, French and German) Turn On Volume presets volume level at power on
OTHER NOTABLE FEATURES
TruBass: Uses harmonics to make the bass from small speakers deeper and richer Turn On Volume: volume comes on at a preset level when power is turned on Max volume Memory save lock 0.1W standby power consumption Preset Remote Control Detachable power cable Preset remote unit
Simple Connection and Video Input Selection with Multi-Language On-Screen Display
Connecting the YSP-1100 is much simpler than connecting conventional home theater systems because multiple speaker cables are not necessary.Placement is flexible — the component can be positioned above or below the display in the frontcenter of the room, or in either of the front corners. It is compact enough that space should not be a problem in almost any setting. It can also be wallmounted, or placed on a shelf or rack. And, through this component alone, video input can be selected from any of two component inputs to a component output, or from three composite inputs to a composite output with superimposed on-screen display menus. It also offers four languages (English, French, German and Spanish).
IntelliBeam™ Automated Calibration System
This Yamaha exclusive feature ensures optimum multi-channel sound reproduction with accurate image location. By monitoring and analyzing the sound with the microphone included with the YSP-1100, IntelliBeam automatically sets the best beam angles and modes, while optimizing the level and frequency response of each beam. It also offers Direct Start function via remote unit. This makes initial setup both extremely simple while acoustically perfect. Manual setup is also possible.
