超低音音箱
超重低音功率有效值 |
130 W |
无线低音炮 |
Y |
超重低音箱位置 |
Separate |
含超重低音炮 |
Y |
技术细节
扩展坞接口类型 |
Not supported |
支援色深技术 |
Y |
x.v.Color支持 |
Y |
与苹果产品对接兼容性 |
Not supported |
推荐使用 |
Universal |
墙壁支架 |
Y |
重量和尺寸
音箱棒重量 |
4000 g |
超重低音炮重量 |
7900 g |
联网
蓝牙版本 |
2.1+EDR |
蓝牙 |
Y |
蓝牙模式 |
A2DP, SPP |
音箱棒音
中端驱动数量 |
16 |
音箱棒RMS功率 |
32 W |
低音单元驱动器数量 |
2 |
Mid-range driver diameter |
2.8 mm |
Woofer diameter |
100 mm |
端口 & 界面
数字音频光纤入 |
2 |
数字音频同轴i输入 |
1 |
耳机输出端口 |
1 |
HDMI输入 |
3 |
HDMI端口数量 |
4 |
其他功能
超重低音扬声器尺寸(宽x深x高) |
147 x 353 x 444 mm |
音箱棒尺寸(宽x深x高) |
944 x 144 x 73 mm |

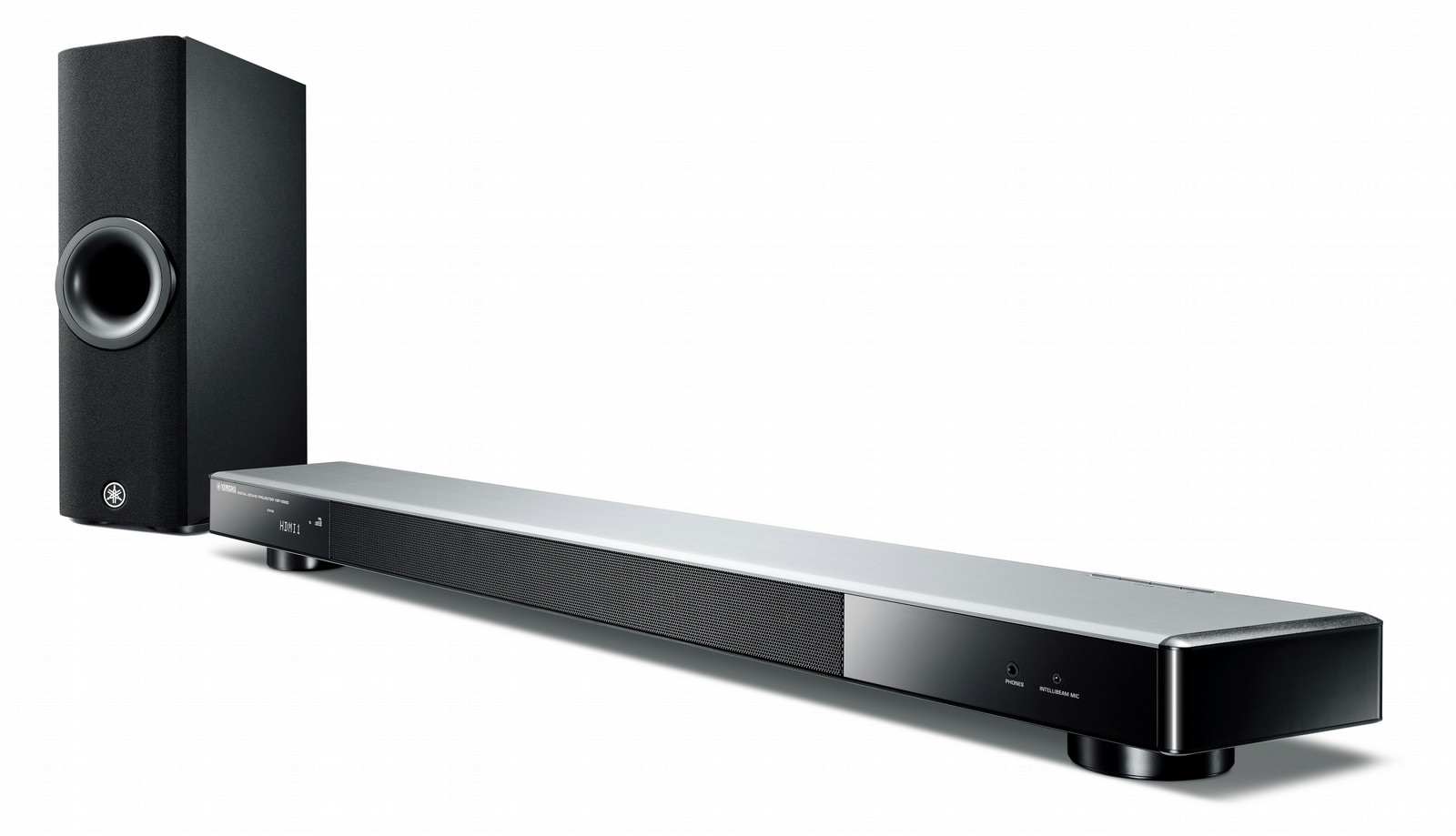

7.1, 162W, Bluetooth 2.1 + EDR, Silver
- Reproduces overwhelmingly real surround sound, different from virtual surround
- Digital sound projector technology for high precision sound control
- Sixteen array speakers that deliver targeted sound beams
- Versatile Beam modes that can be chosen according to source content
- IntelliBeam automatically sets the optimum sound field
- Highly rigid aluminium chassis with thich aluminium top panel to ensure clear and rich sound
- Wireless Active Subwoofer for rich and crisp bass
- Two 10 cm woofer units with dynamic power 130W analogue amp
- Wireless compatible, can be installed horizontally or vertically, allowing flexible placement
- High sound quality wireless music streaming with Bluetooth
- Advanced HOME THEATER CONTROLLER app enables detailed setting and easy operation
- Latest HDMI (3 in/1 out) with 4K 50/60p Pass-Through, 3D and HDMI CEC
- Support for HDMI 2.0 Specification
- Easy-to-see On Screen Menu viewable in ten languages
Yamaha’s Proprietary Surround System – YSP –
YSP creates beams of sound by combining the sound projector’s many speaker groups via digital signal processing and reflects them off the walls of the room, actually reproducing a realistic surround effect with the sound coming from the left and right and even from the rear. The listening area is expanded so you enjoy an extremely powerful, natural sense of presence unobtainable with virtual surround methods.
Sound Beams Reproduce Amazingly Real Surround Sound
The front unit of the YSP-2500 is equipped with 16 2.8 cm high sound quality array speakers which create beams of sound. It optimises the layout of its array speakers, boosting the reflection properties of the beams to maximise sound quality. And by having the subwoofer as a separate unit, it achieves a superior sense of sound orientation and powerful bass. The result is 7.1ch surround sound with incredibly high sound quality.
IntelliBeam Automatically Sets the Optimum Sound Field
The acoustic properties (size and shape of room, type of wall material), which differ according to the listening environment, are measured by a specialised microphone. The volume and sound quality of the YSP, and the angle of the beams, the focal lengths, route lengths and other fine adjustments matched to the listening point are automatically optimised. You can achieve the ideal listening environment by simple operations: just pushing buttons while following the screen instructions.
