其他功能
| 可选风扇 |
1 x 80mm, 1 x 92mm |
| 外部驱动器托架 |
1 x 5.25" |
| 内部驱动器托架 |
5 x 3.5" |
| 通风扇 |
2 x 80mm |
| 扩展插槽 |
7 |
| 电源类型 |
ATX |
端口 & 界面
| IEEE 1394/Firewire(火线)端口数量 |
1 |

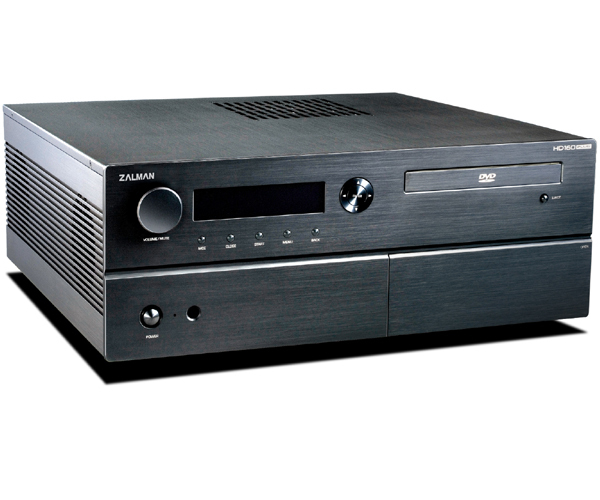

HD160 Plus, HTPC Case, Black
Optimized for High Performance Ultra Quiet HTPC Operation
Designed for High TDP Processors
Opening the Air Vent on the top of the case will facilitate the inflow of cool air from the outside for cooling the CPU.
The 3 ultra quiet, high-capacity fans are designed for the quick discharge of heated air.
Designed for High Performance Power Supplies
A Dedicated Air Vent allows cool air intake from outside the enclosure directly into the power supply, minimizing its noise level and facilitating the highest possible efficiency.
PSU Brackets are also provided to allow a stronger and more stable PSU Installation.
Designed for Optimal Graphic Card Performance
An Air Vent near the VGA card reinforces its cooling for optimal operation of the VGA card.
Designed to Maximize HDD and LCD Lifespan
Carefully positioned fans quickly release air heated by the hard disks and LCD to maximize their life span.
Diverse Functions and Accommodations
The front panel DFSTN LCD provides user access to various features such as the Graphic Equalizer, Volume, Power, HDD Operation, Time etc.
The front panel’s USB, IEEE 1394(Firewire), and audio I/O ports, provide easy access to a variety of media content and facilitate the connection of headphones and a microphone.
The buttons for the keyboard and application programs are located in the front of the enclosure, providing convenience when using a multimedia program. (Arrow Keys, Enter, Backspace)
Windows VISTA-Compatible Remote Control and Multimedia Software are provided. This enables the user to easily control the PC and execute various multimedia software.
Sliding HDD and ODD Chassis provide easy installation and removal.
Elegant Design
DFSTN Negative LCD enhances customer satisfaction (supports different languages depending on the user’s OS).
Pure aluminum Components including the Front Panel Volume Knob allow the enclosure to easily blend in with other home theatre and Hi-Fi equipment.
Placement of the Memory Card Reader and IO (USB, 1394, Audio Port) behind the Front Panel Door provides a sleek exterior.
Excellent Expandability
Five 3.5” bays and one 5.25” bay provide the user with the highest level of expandability compared to other enclosures of identical size.
Ideal Home Theatre PC
The ultimate high performance ultra quiet home theatre PC can be built with Zalman’s CPU Coolers, VGA Coolers, Power Supplies, and Northbridge Coolers. (CNPS9500, VF700, VF900, ZM460B-APS, ZM600-HP, ZM-NBF47)
