协议
| 动态主机配置协议服务器 |
Y |
| 动态主机配置协议客户 |
Y |
能量控制
| 输入电流 |
0.6 A |
| 支持以太网（PoE） |
N |
| 输入电压 |
48 V |
| 电源类型 |
DC |
性能
| 支持服务质量（QoS） |
Y |
| 频段 |
2.412 - 2.484 GHz |
| 以太网的数据传输率 |
10, 100, 1000 Mbit/s |
其他功能
| 遵守工业标准 |
IEEE 802.11n |
| 连通的液晶显示器 |
Y |
| 运行温度范围（T - T） |
-4 - 122 °F |
另外
| 以太网路(RJ-45)连接接口数量 |
3 |
| 数据传输率（最大） |
300 Mbit/s |

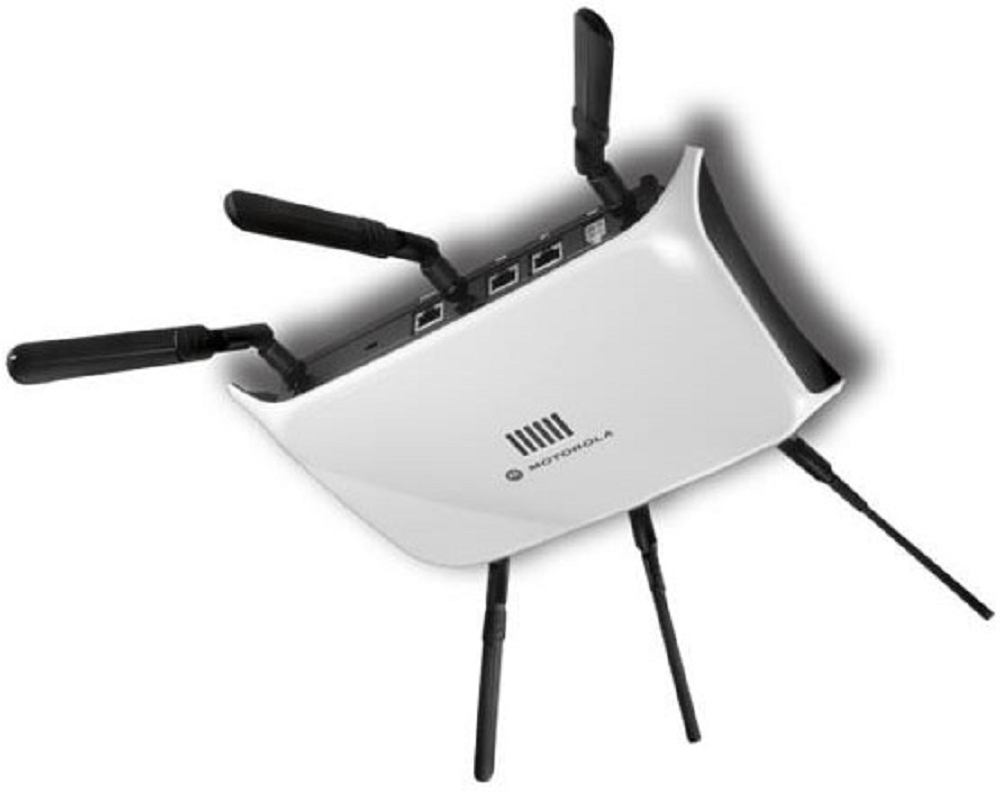

AP 7131 - Single Radio 802.11n Access Point, 6 element Façade antenna Module, with QIG, 300 MB/s, 2.412 - 2.484 GHz, 14 channels, QoS, 6 LEDs
<b>Unmatched RF performance</b>
Conducted transmit power of 27.7dBm and superior receive sensitivity provide best in class range, coverage and application performance, even in harsh RF conditions
<b>802.11n support with 3X3 MIMO</b>
Delivers maximum wireless network throughput to support virtually any enterprise application, including voice and video
<b>Band-unlocked dual band design</b>
The ability to dedicate multiple radios to multiple functions increases security without increasing costs; band-unlocked radios enable 24x7 dual band Wireless IPS sensing on both 2.4GHz and 5GHz with concurrent 802.11a/b/g/n client access and mesh
<b>Gap-free dedicated 24x7 sensing via triple methodology rogue AP detection: on-channel, mobile unit and dedicated radio dual-band scanning</b>
Around the clock network protection through instant rogue detection
<b>Spectrum Analysis</b>
The ability to place a remote AP-7131 in Spectrum Analysis mode allows remote identification of local RF interference, enabling remote troubleshooting and issue resolution from the Network Operation Center (NOC) or other centralized location
<b>Adaptive AP: extending the enterprise</b>
Enables centralized management of mesh access points at remote sites including automatic firmware upgrades; provides site survivability for remote locations with 802.11a/b/g/n networks for unparalleled resiliency
<b>802.3af dual-radio support</b>
Standard Power-over-Ethernet (PoE) provides power for both radios; intelligent power management enables self-configuration based on available power; eliminates the need to upgrade the PoE infrastructure
<b>Integrated Router, DHCP server, Stateful Packet Inspection Firewall, AAA server, NAT, and Hotspot Gateway</b>
Eliminates need to purchase and manage additional equipment; simplifies provisioning of network services and public access
<b>Mesh networking</b>
Allows wireless extension of existing wired or wireless networks in remote or outdoor locations
<b>802.11i, WPA2, WPA and IPSec encryption</b>
End-to-end enterprise class wired and wireless security
