性能
| 处理器频率 |
624 MHz |
| 光照强度（阳光直射） |
4842 - 86080 lx |
端口 & 界面
| 蓝牙版本 |
2.1 |
| 接口 |
USB, RS-232, RS-485 |
| 操作频率 |
2402 - 2480 MHz |
| 蓝牙 |
Y |
扫描
| 解码标准 |
1D: UPC/EAN, Code 39, GS1 DataBar, GS1-128, Code 128, Code 93, Codabar, Interleaved 2/5, Discrete 2/5, Codell, IATA, Bookland EAN, Code 32\nPDF417: microPDF417\n2D: TLC-39, Aztec, MaxiCode\nPostal: U.S. Postnet, U.S. Planet, U.K. Postal, Japan Postal, Australian Postal, Dutch Postal, 4 State Postal |
| 偏航阅读角 |
-60 - 60 ° |
| 间距阅读角 |
-65 - 65 ° |
| 波长 |
650 nm |
| 最大范围 |
100 m |
另外
| 扫描类型 |
1D/2D |
| 连接方式 |
Wired |
| 电池性能 |
2200 mAh |
650 nm, 1D, 2D, PDF417, Bluetooth 2.1, RS-232, RS-485, 2.402 - 2.480 GHz, 33 - 100 m, 2200 mAh, 414 g, Grey/Yellow

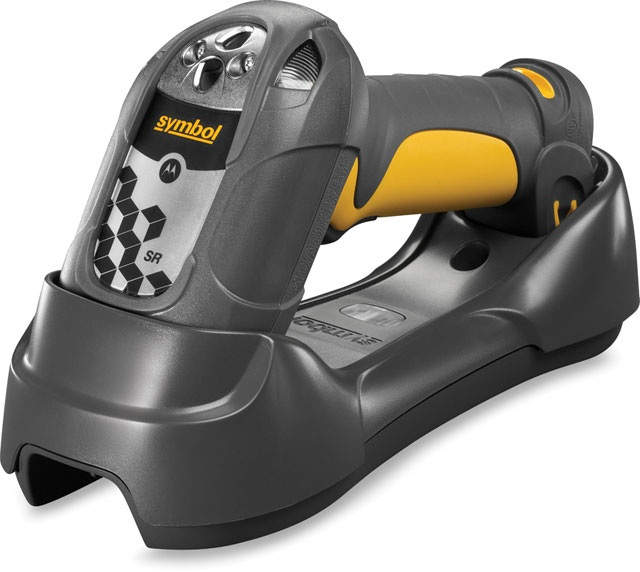

The DS3578 Series of rugged, cordless, omni-directional 1D/2D imager scanners bring comprehensive, high-performance data capture to harsh industrial environments. Engineered with breakthrough digital imaging technology, this scanner family delivers extremely fast and accurate data capture of 1D/2D bar codes, direct part marks (DPM) and images, and supports Item Unique Identification (IUID). Integrated Bluetooth provides cordless freedom, improving productivity.
Ability to read both 1D and 2D bar codes, and capture and transfer images
Increases productivity by providing one device that can read all industry-standard bar codes and capture images.
Powerful 624 MHz processor, fast sensor shutter speed and patent pending fast pulse illumination
Superior performance on 1D and 2D bar codes, improving productivity in a wide variety of applications.
Government grade security: FIPS 140-2 validation
Meets the most stringent federal government and industry security regulations
Integrated Bluetooth Class II, Version 2.1
Cable-free convenience; secure wireless transmissions; reduces repairs due to cable failure.
Rugged design: IP65-rated sealing; withstands multiple 6.5 ft./2 m drops to concrete
Ensures maximum reliability with less downtime.
Multiple on-board interfaces and universal cable set
Ensures flexible connectivity with different hosts; provides investment protection.
Exceptional motion tolerance; omni-directional scanning
Enables extraordinary scanning speed for all bar codes, increasing throughput and productivity.
7-to-1 pairing
Pair seven scanners to a single cradle, greatly reducing cradle costs (scanners and cradle must be FIPS validated).
Supports 123Scan2 scanner configuration tool and RSM (Remote Scanner Management)
Enables rapid and easy customized set-up; enables centralized management, lowering IT expenses.
