扫描
| 读取速度（最大） |
60 reads/s |
| 倾斜角度的阅读 |
-180 - 180 ° |
| 解码标准 |
UPC/EAN\nCode 39\nCode 39 Full ASCII\nCode 39 Trioptic\nCode 128\nCode 128 Full ASCII\nUCC/EAN-128\nISBT-128\nCode 93\nCodabar/NW7\nCode 11\nCode 11 Matrix 2/5\nMSI Plessey\nI 2/5\nDiscrete 2/5\nIATA\nChinese 2/5\nGS1 DataBar\nBase 32\nPDF417\nMicroPDF417\nTLC-39\nAztec\nMaxiCode\nDataMatrix/ECC 200\nQR Code |
| 偏航阅读角 |
-60 - 60 ° |
| 间距阅读角 |
-65 - 65 ° |
其他功能
| 安全 |
UL6950-1, CSA C22.2 No. 60950-1, EN60950-1 / IEC60950-1, EN 60825-1,IEC 60825-1, 21CFR1040.10, CDRH Class II, IEC Class 2 |
| 光源 |
650 nm |

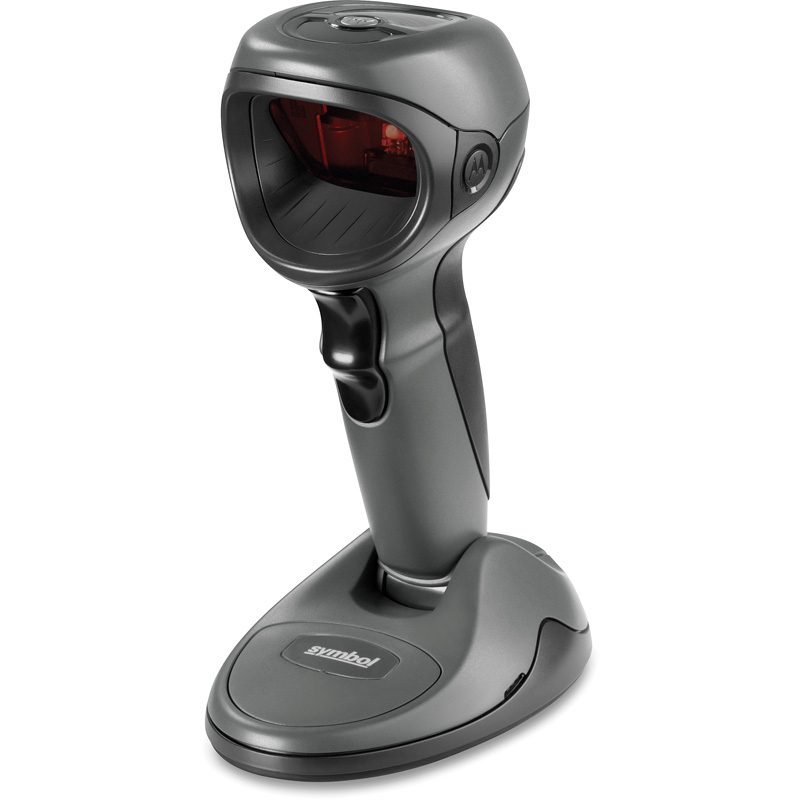

DS9808 - 650nm, 39° H x 25° V, USB 2.0, RS-232, 340g, Black
Achieve a new level of productivity and throughput at the checkout stand with the DS9808. Designed to deliver a new level of versatility, functionality and performance, the DS9808 features a one-of-a-kind hybrid form factor that provides superior comfort and ease of use in both handheld and hands-free scanning modes. Inside, it offers the latest scanning technology, delivering record swipe speeds for 1D and 2D bar codes, as well as the ability to capture images and signatures, and read bar codes on mobile phone displays. Available in standard and long range models, the hands-free decode range on both can be adjusted to meet your needs, for example, to match EAS deactivation range or prevent inadvertent scanning of items nearby.
Innovative hybrid design
Truly designed for ease of use for both hands-free and handheld scanning; dynamically switches between modes.
Comprehensive data capture: 1D, 2D and PDF417 symbologies; image capture; signature capture and RFID
Delivers application flexibility; eliminates need for multiple devices — and associated costs; future proof — built-in support for the applications of tomorrow.
EAS compatible
Enables automatic deactivation of EAS security tags.
Omni-directional scanning; wide working range, laser aiming pattern
Easy to use; no need to align item and scanner; virtually no training required.
Withstands multiple 5 ft./1.5m drops to concrete
Designed to endure the rigors of everyday use for maximum reliability and uptime and a low total cost of ownership.
Swipe speed programmable up to 100 inches/254 cm per second
Optimized scanning speed delivers robust performance and accurate capture of a wide variety of bar codes.
Flexible working range
Two models to best meet your working range requirements: DS9808-SR up to 10.5 inches/26.7 cm and DS9808-LR up to 18 inches/ 45.7 cm (in handheld mode).
Supports RSM (Remote Scanner Management)
Lowers IT expenses and TCO by enabling remote management from a central location.
Multiple on-board interfaces; universal cable compatible
Easy to install; future-proof — today’s scanner can connect to tomorrow’s host.
Extra loud beeper
Audible in the loudest environments.
Extra large LED indicator
Clearly visible from all scanning positions.
Rubberized handle
Provides workers with a comfortable, sure grip.
Recessed connector in the base
Minimizes the scanner footprint.
