能量控制
输入电压 |
100 - 240 V |
输出功率 |
96 W |
48- Ports ADSL2+ (BRCM), ANNEX A, 900 OHM Splitters (REV 2), 2+2 FE/GE, NA AC Power

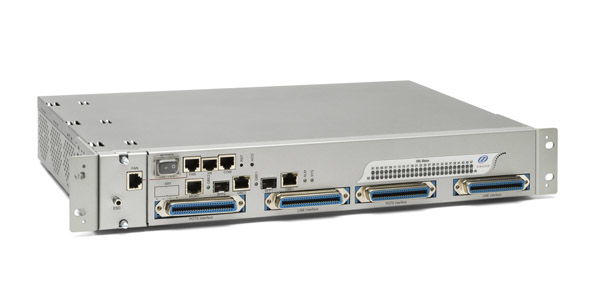

<b>ADSL2+ IP-DSLAM featuring IP/Ethernet service-aware; AC or DC models available</b>
The Bitstorm-RP family of compact IP-DSLAM products offer feature-rich IP and Ethernet functions and support Triple Play Services over single or bonded ADSL2+ lines. The Bitstorm-RP family features forty-eight (48) ADSL2+ ports with integrated splitters (600/900 Ohm-POTS/ISDN), two (2) integrated 100/1000BaseT and two (2) SFP based Gigabit Ethernet fiber uplink interfaces. Products in this family are available in DC or AC powered models. The compact form-factor (1.5U) and temperature hardened design of the Bitstorm-RP DC models allow deployment in remote cabinets, effectively shortening the local loop and providing high bandwidth connections to subscribers.
The Bitstorm-RP family delivers line-rate performance and triple play services supported by advanced L2/L3 features such as - DHCP Option 82, IGMP Snooping/Proxy, QoS and Security/Filtering in either Bridged or VLAN Switched operating modes. In addition, the Bitstorm-RP now supports Cabinet Mode, which is normally used on systems located in outside plant (i.e. street) cabinets which share the same binder group as DSL services originating from the CO. When configured on a DSL port, the Cabinet Mode feature disables the use of all downstream frequencies below a specified cut-off frequency and can be used to minimize cross talk and interference with CO-based DSL services.
The Bitstorm-RP features an intuitive Web Graphical Interface (GUI) with online configuration help for device management. It also supports a complete set of ADSL MIBs for SNMP based management along with ZMS integration for device fault identification, database backup and restoration.
Field-replaceable fan and filter units provide serviceability and ensure longevity in harsh environments. The Bitstorm-RP DC models are temperature hardened to operate in -40ºC to +65ºC range of temperature.
