能量控制
| 功率因数 |
0.9 |
| 输入工作电压（最大值） |
295 V |
| 输入工作电压（最小值） |
165 V |
| 效率 |
91% |
| 紧急电源关闭(EPO) |
Y |
| 最大电流 |
10 A |
| 电源输入频率 |
40/70 Hz |
| 输出功率（瓦特－安培） |
1500 VA |
| 波峰因数 |
5:1 |
| 输出工作电压（最小值） |
208 V |
| 输出工作电压（最大值） |
240 V |
| 输出功率 |
1350 W |
设计
| 机架容量 |
2U |
| 格式要素 |
Rackmount/Tower |
| 显示器 |
LCD |
端口 & 界面
| 交流电（AC）插座类型 |
C13 coupler |
| 调制解调器 (RJ-11)接口 |
2 |
| USB2.0端口的数量 |
1 |
| 电源插头 |
C19 coupler |
| 交流电（AC）插座数量 |
8 AC outlet(s) |
电池
| 电池技术 |
Sealed Lead Acid (VRLA) |
| 电池充电时间 |
4 h |
重量和尺寸
| 深度 |
480 mm |
| 重量 |
17600 g |
| 宽度 |
438 mm |
| 高度 |
88 mm |
性能
| 噪音水平 |
50 dB |
| 发声警报器 |
Y |
| EMI / RFI噪声滤波 |
Y |
| 冷却方式 |
Active |
| 电源保护功能 |
Overheating, Overload, Short circuit, Under current |
其他功能
| 包装尺寸(宽度 × 深度 × 高度) |
565 x 700 x 240 mm |
另外
| 产品色彩 |
Black |
| RS-232接口 |
1 |
| 运行温度范围（T - T） |
0 - 40 °C |

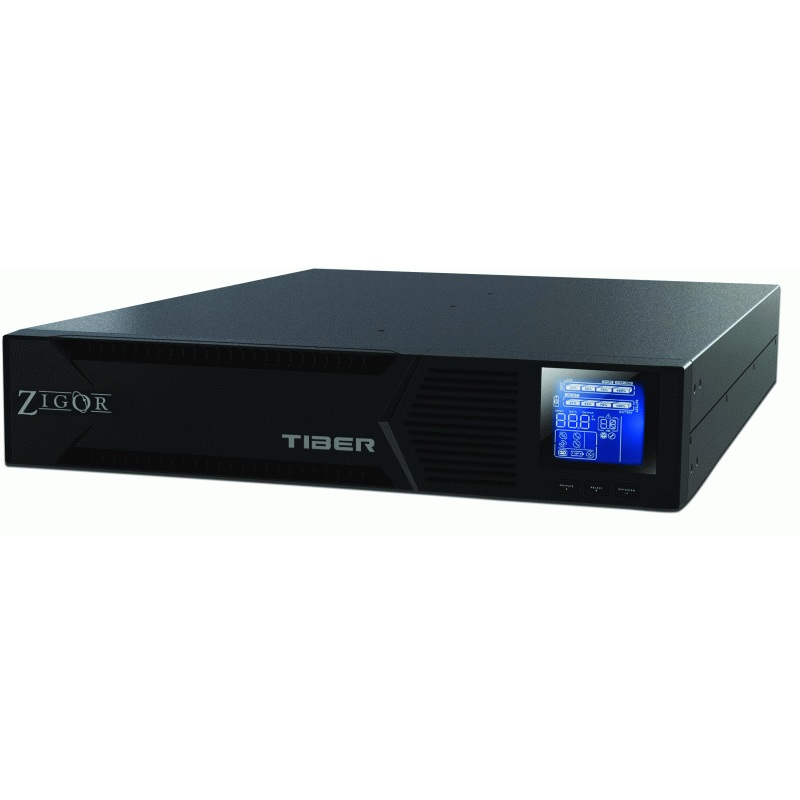

TIBER 1.5KVa, 2U Rack/Tower, 1350W, LCD, EPO, 17.6kg
SINGLE PHASE INPUT/SINGLE PHASE OUTPUT
On-line UPS double conversion high frquency from 1 to 3 KVA
The Tiber is an on-line double conversion high frequency UPS available in either 2U Rack or Tower from 1kVA to 3kVA. With internal batteries and optional extended run time models, they can be maintained or replaced via the front panel without removing the UPS from the rack mount.
The user-friendly LCD display panel can be easily rotated vertically or horizontally to suit the installation format. Users can manage the load, examine the UPS and gather remaining back-up time information via this function.
General technical features UPS online double conversion
- Output power factor 0.9.
- User friendly and easy-shift LCD display.
- 19" rack-mounting/Tower design.
- ECO and advanced ECO mode for energy saving: It allows UPS to operate in high efficiency up to 97% in energysaving ECO mode and even up to 98%. In this operation mode, load is supplied by the mains. In the event of mains failure, the inverter takes over the loadand provides supply continuity to the connected systems.
- Output voltage regulation < 1%.
- Higher output crest ratio perfect for generator and compressor 5:1.
- Programmable power management outlets.
- Emergency power off function (EPO): This feature can secure the personnel and equipment in case of fires or other emergencies.
- Additional extended run time battery modules are available in a matching design for long backup applicationes.
