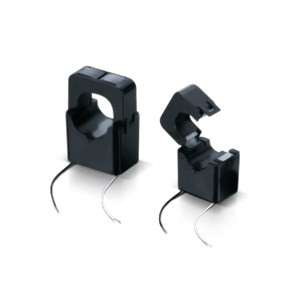

Amper meter clamp
The split-core current transformer (ampclamp35) is used for energy efficiency monitoring and automation applications. This includes sub-metering cost allocation, dynamic energy consumption and peak load analysis. Split-core current transformer is simple to use, compact split-core design which is easily installed for metering applications. This is ideal for distributed measurement systems and can be retro fitted into existing installations and non - interruptable equipment as there is no requirement for disconnection and re-connection of wiring.
- Energy sub - meter
- Power meters
- Power quality monitoring
- HVAC&Pumps, etc
- Distributed measurement system
- Nylon-spring, output-terminal, secure locking hinge, one-touch structure make easy to install to the existent equipment such as a power distribution boards.
- Isolated plastic case recognized according to UL94-VO
- UL / EN 61010 - 1 certifed
- Model: JC16F Ø16
- Current ratio: 120A/40MA
- Current range: 0.01~120A (RL=10Ω)
- Max.continuous current: 200A
- Nominal phase angle error: +1.0±1°
- Nominal linearity error: -1±1%
- Turns ratio: 3000:1
- DCR 280±20Ω
- Protection level: 7.5V0-P
- Insulation category: CAT III
- Operating condition: -20°C~+50°C,≤85%RH, no condensation, in-house and any direction installable storage condition
