ADSL的特点
| 下行数据率 |
8 Mbit/s |
| 上行数据速率 |
1 Mbit/s |
| ADSL说明书 |
G.992.1, G.992.2, ITU G.992.3, G.992.5 |
| xDSL连接类型 |
ADSL |
协议
| DMZ支持 |
Y |
| 管理协议 |
TR-69, UPnP, HTTP, UBR |
| 动态主机配置协议客户 |
Y |
| 动态主机配置协议服务器 |
Y |
另外
| 以太网连接器 |
Y |
| 连接方式 |
Wired |
| 以太网路(RJ-45)连接接口数量 |
1 |
ADSL 2/2+ Modem + Router + Gateway with Ethernet Interface

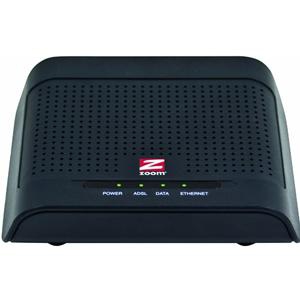

The Zoom ADSL X3 Gateway, Model 5760, is a full-rate ADSL 2/2+ modem and a powerful gateway/ router in a single affordable product.
The Zoom Model 5760 delivers up to 24 Mbps data speeds over existing telephone wires and is suitable for use in homes or small offices. The Model 5760 is compatible with older ADSL protocols as well as the new ADSL 2/2+ standards for higher data speeds and extended distances at which high data rates can be delivered.
An Ethernet interface on the X3 provides connection to a computer running most operating systems, including Windows as well as Linux, Unix and Mac Operating systems. The X3 can also be plugged into a hub or wireless access point to provide concurrent Internet access for up to 253 networked computers.
Security features include Network Address Translation (NAT) and Stateful Packet Inspection (SPI) Firewall. The NAT firewall hides computers on the local area network from uninvited access through the Internet. SPI assesses the protocol and packet addresses being received to determine if the information should be passed through the firewall to the connected computers. SPI and NAT protect against Internet worms and Denial of Service attacks, some of the most publicized forms of malicious intrusion from the Internet.
Setup is easy using any authorized local or remote computer's Web browser and the intuitive graphical user interface. An auto configuration option automatically establishes the protocol and encapsulation used by the ADSL service.
Zoom ADSL gateways are backed by a two year warranty and over 30 years of experience in the design and support of communication products.
