性能
| 主板元件 |
Micro ATX |
| 主板芯片组系列 |
Intel |
| 音频系统 |
HD |
| 组件应用 |
PC |
内存参数
| 可支持内存时钟速度 |
1333 MHz |
| 支持的内存类型 |
DDR3-SDRAM |
| 内存插槽类型 |
DIMM |
| 內存插槽数量 |
2 |
| 最大内部存储 |
16 GB |
背板输出端口
| 串口数量 |
1 |
| PS/2连接埠数量 |
2 |
| 耳机输出端口 |
1 |
| 麦克风/音频输入插孔 |
Y |
| VGA(D-SUB)端口数量 |
1 |
内置输入/输出系统
| USB 2.0接口 |
8 |
| 串列ATA连接器数量 |
4 |
| ATX电源接头 |
Y |
| 风扇电源接头 |
Y |
| SATA II连接器数量 |
4 |
| CPU风扇接口 |
Y |
| 机箱风扇接头数量 |
2 |
| 前面板音频接头 |
Y |
扩展槽
| PCI Express x16 插槽 |
1 |
| PCI Express × 1插槽 |
2 |
另外
| 主板晶片 |
Intel H61 |
| 英特尔® 高保真音频技术 |
Y |
| 以太网连接器 |
Y |
| 以太网路(RJ-45)连接接口数量 |
1 |

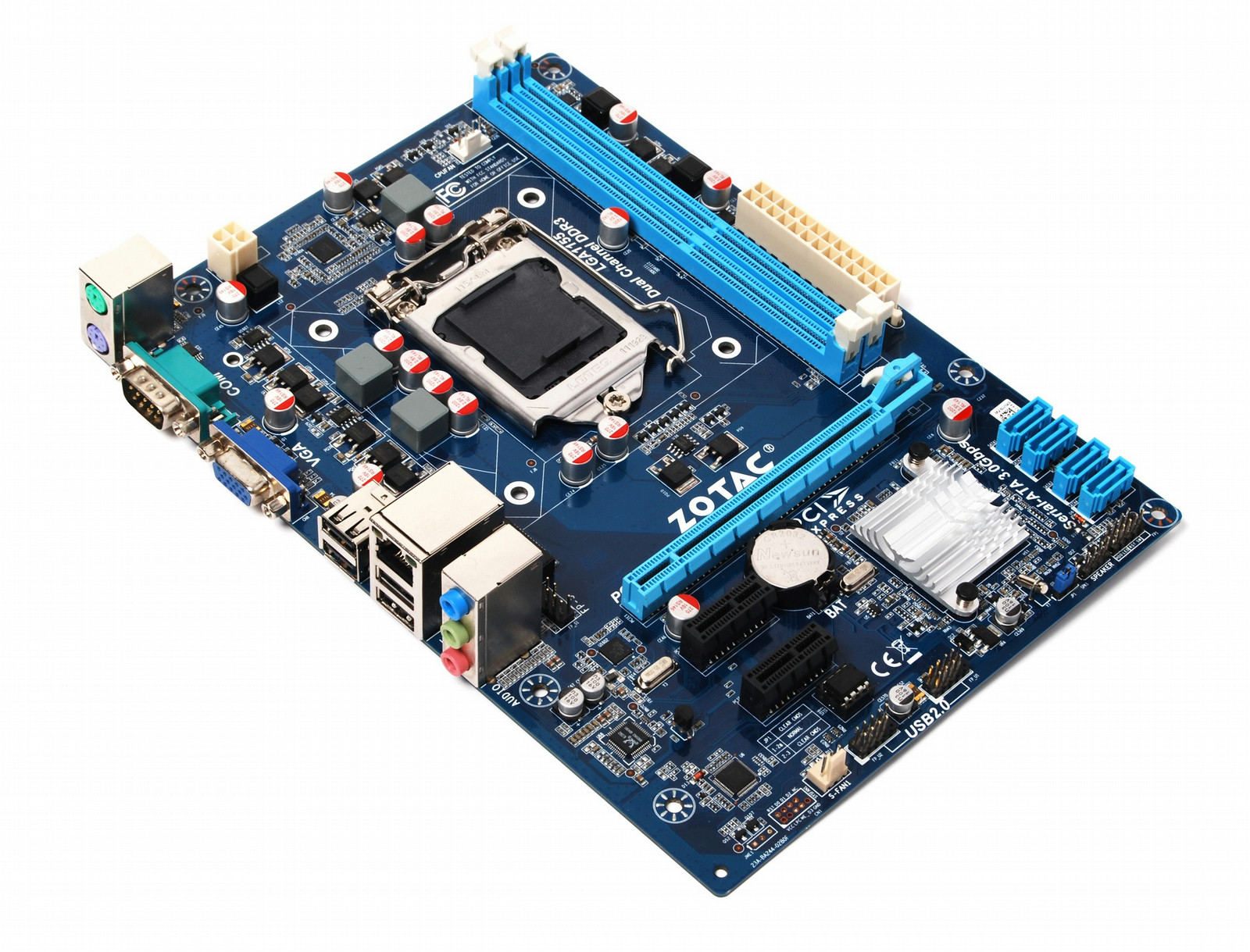

microATX, Intel H61 Express, LGA 1155, 2 x 240 pin DDR3 DIMM, 1x PCI Express x16, 2x PCI Express x1, 4x SATA, 8x USB 2.0, 1x LAN, 1x VGA, 1x HD Audio, 1x Serial, 1.55 kg, Blue
Embrace the compact micro-ATX form factor and high-performance Intel® Core™ i3, i5 and i7 processors with the ZOTAC® H61 platform. Compatibility with Intel® processors with HD Graphics enables the ZOTAC® H61 platform to function as an affordable high-performance platform when paired with Intel® Core™ i3 and i5 processors with HD graphics or a supercharged gaming system when combined with an Intel® Core™ i7 processor and a ZOTAC® graphics card.
The ZOTAC® H61 is the ultimate micro-ATX solution for your compact computing needs. Expansion with the ZOTAC® H61 is plentiful with two DDR3 DIMM, PCI Express x16 and two PCI Express x1 slots, 4 SATA 3.0Gb/s ports and four standard USB 2.0 ports while high-definition 6-channel audio and Ethernet round out the overall package.
