内存参数
| 可支持内存时钟速度 |
667, 800 MHz |
| 支持的内存模块容量 |
1GB, 256MB, 2GB, 512MB |
| 內存插槽数量 |
2 |
| 最大内部存储 |
4 GB |
背板输出端口
| 串口数量 |
1 |
| WiFi-AP天线端子 |
1 |
| PS/2连接埠数量 |
1 |
| 耳机输出端口 |
1 |
| S/PDIF输出接口 |
Y |
| 麦克风/音频输入插孔 |
Y |
| HDMI端口数量 |
1 |
| VGA(D-SUB)端口数量 |
1 |
内置输入/输出系统
| USB 2.0接口 |
2 |
| S/PDIF输出端口 |
Y |
| 串列ATA连接器数量 |
2 |
扩展槽
| Mini PCI Express插槽 |
2 |
| PCI Express × 1插槽 |
1 |
另外
| 图形适配器 |
GMA 3100 |
| 以太网路(RJ-45)连接接口数量 |
1 |

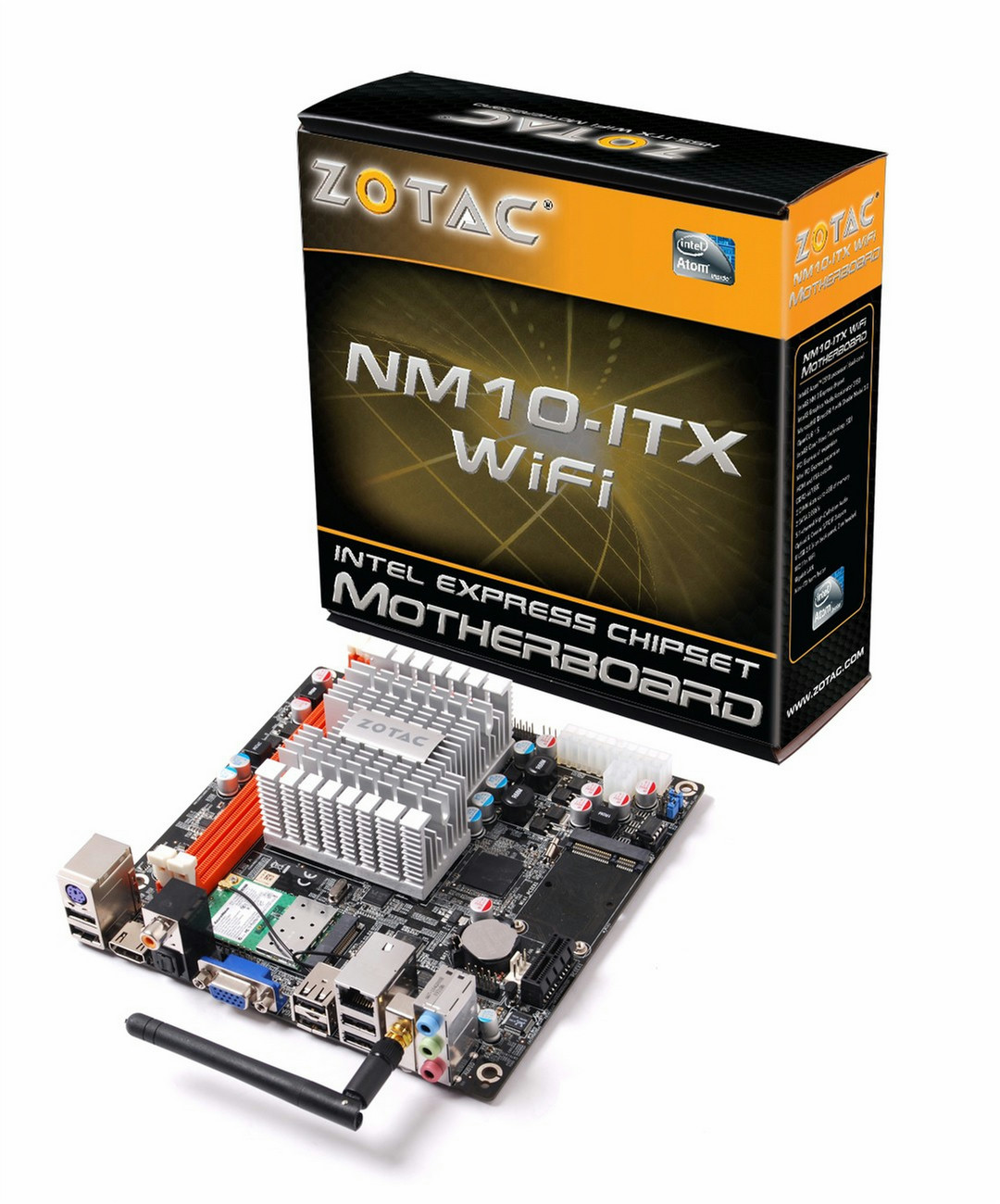

Intel NM10, Intel Atom D525 (1M Cache, 1.66 GHz), Intel GMA 3150, 2x 240-pin DDR2 DIMM, SATA, PCI-E, mini PCI-E, Fast Ethernet, 802.11n, Mini-ITX
Experience energy-efficient computing in a miniature with the ZOTAC NM10-ITX WiFi mini-ITX platform. The ZOTAC NM10-ITX WiFi platform delivers plenty of performance for everyday tasks such as web browsing and e-mail while consuming minimal amounts of energy for true eco-friendly computing that’s smart and sensible.
The ZOTAC NM10-ITX WiFi packs everything you need into a mini-ITX including an Intel® Atom processor and Intel® NM10 Express chipset – a combination that delivers class-leading energy-efficiency and performance. From the Microsoft® DirectX® 9 and OpenGL® 1.5 compatible Intel® Graphics Media Accelerator 3150 graphics processor to the PCI Express x1 and mini PCI Express expansion slots, the ZOTAC NM10-ITX WiFi is the best choice for a no compromise eco-friendly computing experience.
