存储介质
硬盘尺寸 |
2.5 " |
硬盘容量 |
250 GB |
硬盘转速 |
5400 RPM |
兼容性内存条 |
Memory Stick (MS), MMC, MS PRO, SD, SDHC, xD |
总存储容量 |
250 GB |
集成读卡器 |
Y |
儲存裝置 |
HDD |
安装的硬盘驱动器的数量 |
1 |
其他功能
SMP(适用于表面安装的封装形式)处理器的最大数量 |
1 |
以太网接口类型 |
Gigabit Ethernet |
图形适配器系列 |
AMD |
处理器生产厂商 |
AMD |
Mac兼容性 |
N |
无线技术 |
Wi-Fi |
以太网铜缆技术 |
1000BASE-T, 1000BASE-TX, 100BASE-T, 100BASE-TX, 10BASE-T |
平台 |
PC |
遵守工业标准 |
IEEE 802.3, IEEE 802.3u, IEEE 802.3ab |
网路功能 |
Gigabit Ethernet |
冷却方式 |
Active |
联网
布线技术 |
10/100/1000Base-T(X) |
以太网的数据传输率 |
10, 100, 1000 Mbit/s |
无线局域网连接 |
Y |
处理器
处理器安装数量 |
1 |
处理器高速缓存 |
2 MB |
处理器高速缓存类型 |
L2 |
核心的处理器数量 |
2 |
处理器频率 |
1.6 GHz |
端口 & 界面
DVI端口 |
Y |
耳机输出端口 |
1 |
S/PDIF输出接口 |
Y |
麦克风/音频输入插孔 |
Y |
eSATA端口数量 |
1 |
USB 3.0(第 1代3.1)Type-A 端口数量 |
2 |
HDMI端口数量 |
1 |
DC-IN插口 |
Y |
图像
板载图形适配器 |
Y |
板载图形适配器系列 |
AMD Radeon HD 6000 |
独立显卡类型 |
Not available |
性能
音频输出通道数量 |
7.1 channels |
音频系统 |
HD |
内存参数
内存时钟速度 |
1066 MHz |
内存布局 |
1 x 2 GB |
内存类型 |
DDR3-SDRAM |
内存插槽数量 |
2x SO-DIMM |
最大内部存储 |
8 GB |
内置存储器 |
2 GB |
另外
主板晶片 |
AMD M1 |
以太网连接器 |
Y |
以太网路(RJ-45)连接接口数量 |
1 |
ZBOX AD02 PLUS, AMD Dual-Core E-350 (1.6GHz, 2MB Cache L2), 2GB DDR3, 250GB HDD, 6-in-1, AMD Radeon HD 6310, Gigabit Ethernet, 802.11 n/g/b, Black/Silver

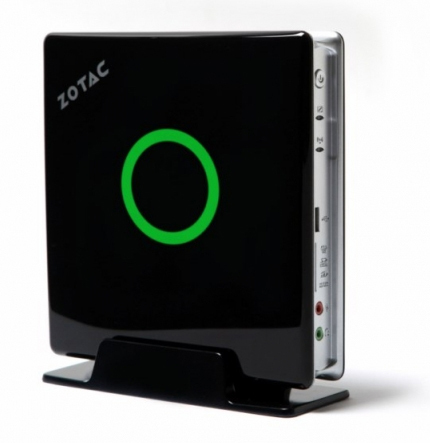

ZOTAC ZBOX AD02 PLUS
Raise your performance expectations for energy-efficient computing with the digital media friendly ZOTAC ZBOX AD02 PLUS Plus mini-PC powered by the AMD E-350 APU platform. Paired with AMD Radeon™ Discrete-Class Graphics, the ZOTAC ZBOX AD02 PLUS Plus delivers the perfect synergy of GPU and CPU performance for a rich multimedia computing experience with flawless high-definition video playback capabilities and ultra-fast responsiveness for regular day-to-day computing tasks.
High performance energy-efficient computing is only two thumb screws away with the ZOTAC ZBOX AD02 PLUS Plus mini-PC thanks to a user friendly design that makes mastering the mini-PC quick and easy. Space for a 2.5-inch hard drive and 2 204-pin DDR3-1066 SO-DIMM slots enables users to customize the internals of the ZOTAC ZBOX AD02 PLUS Plus to their own needs – a 250GB hard drive and 2GB of DDR3-1066 are included -- while USB 3.0 and USB 2.0 ports, a 6-in-1 memory card reader (SD/SDHC/MS/MS Pro/xD/MMC) and eSATA port provide greater external expansion capabilities for perfect energy-efficient computing.
