联网
| 以太网的数据传输率 |
1000, 10, 100 Mbit/s |
| 无线局域网连接 |
Y |
| 蓝牙 |
Y |
| 布线技术 |
10/100/1000Base-T(X) |
| 网路唤醒功能 |
Y |
| 蓝牙版本 |
4.0 |
端口 & 界面
| Line-out |
Y |
| 耳机输出端口 |
1 |
| S/PDIF输出接口 |
Y |
| 麦克风/音频输入插孔 |
Y |
| USB 3.0（第 1代3.1）Type-A 端口数量 |
2 |
| HDMI端口数量 |
1 |
| DC-IN插口 |
Y |
| DVI端口 |
Y |
| Line-in |
Y |
存储介质
| 集成读卡器 |
Y |
| 儲存裝置 |
HDD |
| 硬盘接口 |
Serial ATA |
| 硬盘尺寸 |
2.5 " |
| 兼容性内存条 |
MMC, SD, SDHC, SDXC |
图像
| 独立显卡适配器內存 |
512 GB |
| 板载图形适配器 |
N |
| 独立显存类型 |
GDDR3 |
| 独立显卡类型 |
NVIDIA GeForce GT 610 |
内存参数
| 内存类型 |
DDR3-SDRAM |
| 内存时钟速度 |
1333 MHz |
| 内存插槽数量 |
2x SO-DIMM |
| 最大内部存储 |
16 GB |
另外
| 以太网连接器 |
Y |
| 以太网路(RJ-45)连接接口数量 |
2 |
| 主板晶片 |
Intel NM70 Express |
Intel Dual-Core 1.1 GHz, NVIDIA GeForce GT 610 512MB DDR3, 2 x Gigabit Ethernet, 2 x 802.11b/g/n, Bluetooth 4.0, HDMI 1.4a, DVI, 2 x USB 3.0, USB 2.0, Black/White

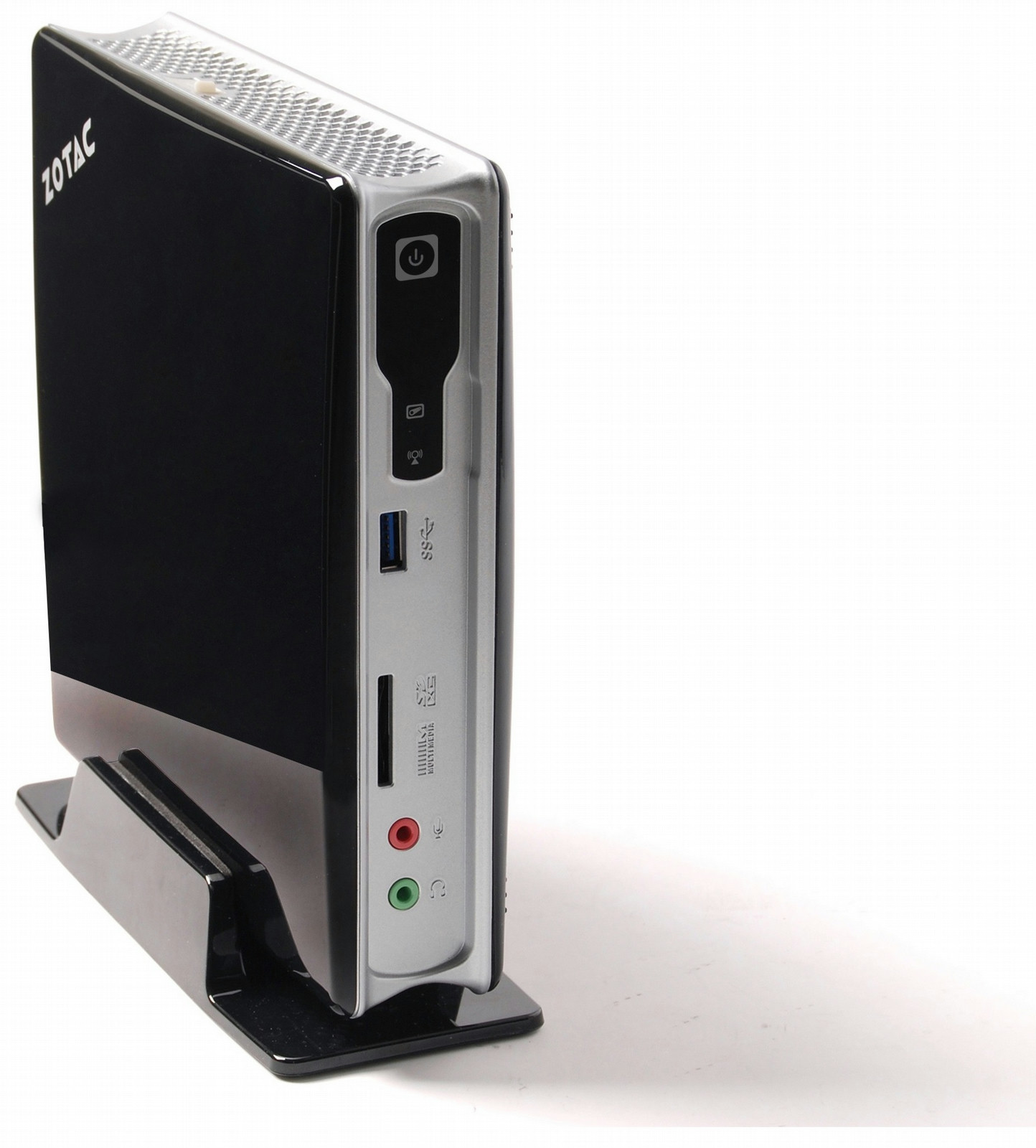

Enjoy eco-friendly computing with superior energy-efficiency and performance with the ZOTAC ZBOX ID42 mini-PC powered by an NVIDIA GeForce GT 610 graphics processor and Intel Core Processor. NVIDIA GeForce GT 610 graphics deliver unrivaled levels of performance and high definition video decode capabilities to the ZOTAC ZBOX ID42 mini-PC with NVIDIA CUDA, hardware-accelerated HD video decode and HDMI 1.4a technologies for eco-friendly computing with premium audio and video capabilities.
High performance eco-friendly computing is only two thumb screws away with the ZOTAC ZBOX ID42 mini-PC thanks to a user friendly design that makes mastering the mini-PC quick and easy. Space for a 2.5-inch hard drive and 2 204-pin DDR3-1333 SO-DIMM slots enable users to customize the internals of the ZOTAC ZBOX ID42 to their own needs while USB 3.0, USB 2.0 ports and a 4-in-1 memory card reader (SD/SDHC/SDXC/MMC) provide greater external expansion capabilities for perfect eco-friendly computing.
