内存参数
可支持内存时钟速度 |
1066 MHz |
支持的内存类型 |
DDR3-SDRAM |
内存插槽类型 |
SO-DIMM |
內存插槽数量 |
2 |
最大内部存储 |
4 GB |
存储介质
可支持的存储驱动器数量 |
2.5 " |
可支持的存储驱动器数量 |
1 |
兼容性内存条 |
Memory Stick (MS), MMC, MS PRO, SD, SDHC, xD |
光驱类型 |
N |
集成读卡器 |
Y |
Motherboard
支持处理器频率(最大) |
2.13 GHz |
可支持处理器数量 |
1 |
图像
最大图形显示内存 |
512 MB |
板载图形适配器 |
Y |
图形适配器系列 |
NVIDIA |
端口 & 界面
DVI端口 |
Y |
组合耳机/麦克风接口 |
N |
耳机输出端口 |
1 |
S/PDIF输出接口 |
Y |
麦克风/音频输入插孔 |
Y |
USB 3.0(第 1代3.1)Type-A 端口数量 |
2 |
HDMI端口数量 |
1 |
DC-IN插口 |
Y |
处理器
处理器光刻 |
32 nm |
散热设计功耗 (TDP) |
10 W |
核心的处理器数量 |
2 |
处理器频率 |
2.13 GHz |
处理器的特殊功能
执行禁止位 |
Y |
英特尔®中小企业通锐软件(SBA) |
N |
英特尔®64 |
Y |
英特尔®智能响应技术 |
N |
英特尔® 双显示功能技术 |
Y |
可选用的嵌入式选项 |
N |
英特尔®直接输入/输出硬件辅助虚拟化技术 (Intel® VT-d) |
N |
英特尔®身份保护技术 |
N |
英特尔®超线程技术 |
Y |
英特尔®Turbo Boost技术 |
N |
英特尔®vPro™ 技术 |
N |
增强型英特尔®SpeedStep动态节能技术 |
N |
英特尔®基于需求开关 |
N |
英特尔®无线显示(WiDi)技术 |
N |
另外
主板晶片 |
Intel NM10 |
英特尔® 高保真音频技术 |
Y |
图形适配器 |
GeForce GT 520M |
以太网连接器 |
Y |
开/关切换钮 |
Y |
包括 AC 适配器 |
Y |
以太网路(RJ-45)连接接口数量 |
1 |

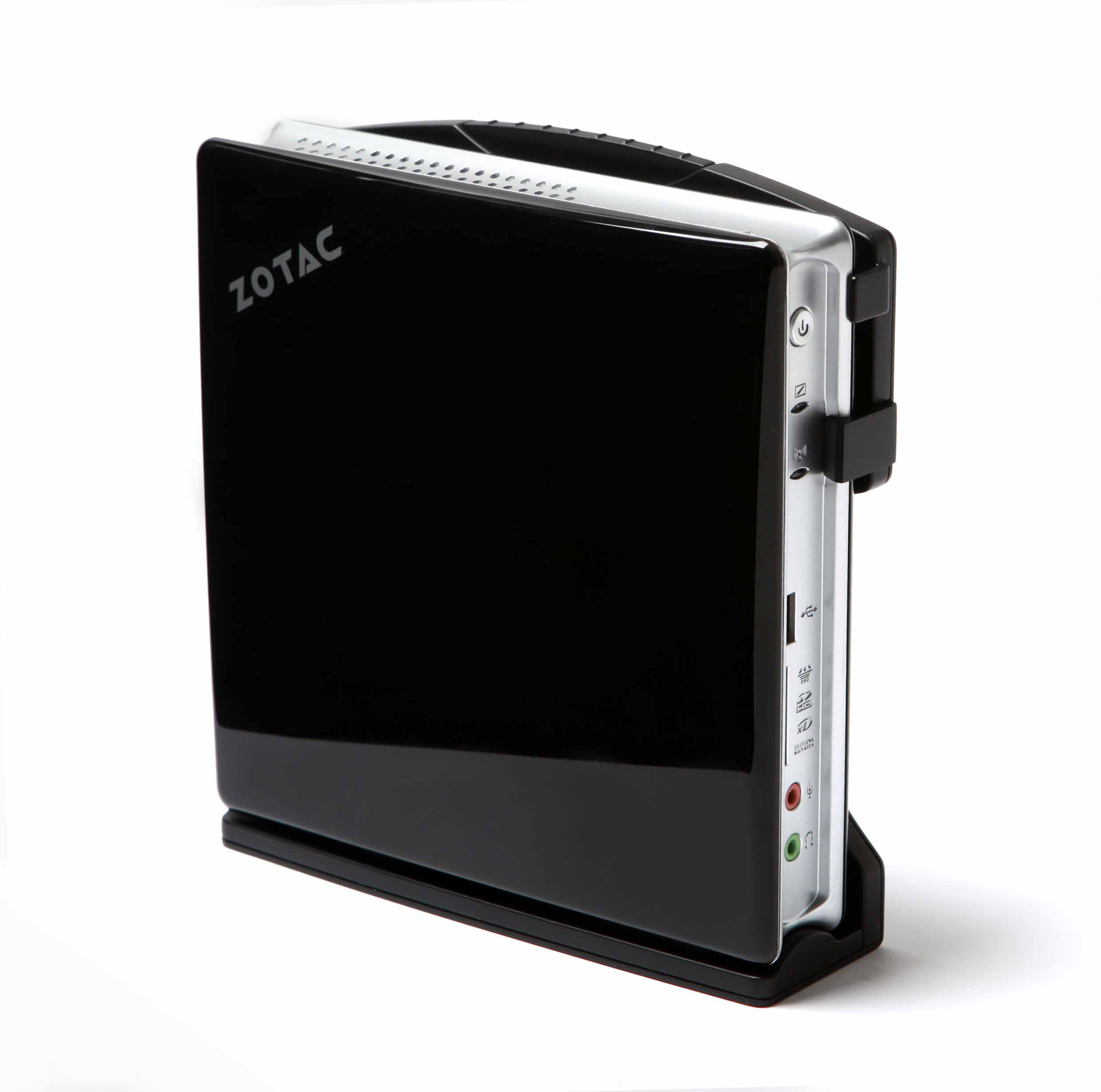

ZBOX-ID80-U, Intel Atom D2700, Intel NM10, NVIDIA GeForce GT 520M , 2 x SO-DIMM DDR3, Gigabit Lan, WiFi 802.11 b/g/n, 1 x 2.5" SATA 3.0Gbps, 2 x USB3.0, 4 x USB2.0, 1 x DVI, 1 x HDMI, 6-in-1 CardReader, 4.61kg, Black/Silver
Enjoy eco-friendly computing with superior energy-efficiency and performance with the ZOTAC ZBOX ID80 mini-PC powered by an NVIDIA® GeForce® GT 520M graphics processor and Intel® Atom™ processor. NVIDIA® GeForce® GT 520M graphics deliver unrivaled levels of performance and high definition video decode capabilities to the ZOTAC ZBOX ID80 mini-PC with NVIDIA® CUDA™, PureVideo™ HD and HDMI 1.4a technologies for eco-friendly computing with premium audio and video capabilities.
High performance eco-friendly computing is only two thumb screws away with the ZOTAC ZBOX ID80 mini-PC thanks to a user friendly design that makes mastering the mini-PC quick and easy. Space for a 2.5-inch hard drive and 2 204-pin DDR3-1066 SO-DIMM slots enable users to customize the internals of the ZOTAC ZBOX ID80 to their own needs while USB 3.0 and USB 2.0 ports and a 6-in-1 memory card reader (SD/SDHC/MS/MS Pro/xD/MMC) and provide greater external expansion capabilities for perfect eco-friendly computing.
