存储介质
| SSD安装数量 |
1 |
| 兼容性内存条 |
MMC, MS PRO, SD, xD |
| 总存储容量 |
64 GB |
| 集成读卡器 |
Y |
| 儲存裝置 |
SSD |
| 固态磁盘驱动器 接口 |
Micro Serial ATA |
| 固态磁盘驱动器的容量 |
64 GB |
联网
| 内置调制解调器 |
N |
| 无线局域网连接 |
Y |
| 蓝牙 |
N |
| 布线技术 |
10/100/1000Base-T(X) |
| 以太网的数据传输率 |
10, 100, 1000 Mbit/s |
内存参数
| 最大内部存储 |
4 GB |
| 内置存储器 |
2 GB |
| 内存类型 |
DDR3-SDRAM |
| 内存时钟速度 |
1333 MHz |
| 内存布局 |
1 x 2 GB |
端口 & 界面
| 耳机输出端口 |
1 |
| S/PDIF输出接口 |
Y |
| 麦克风/音频输入插孔 |
Y |
| eSATA端口数量 |
1 |
| USB 3.0（第 1代3.1）Type-A 端口数量 |
2 |
| HDMI端口数量 |
1 |
| DC-IN插口 |
Y |
| DVI端口 |
N |
处理器
| 核心的处理器数量 |
2 |
| 处理器频率 |
1.7 GHz |
| 处理器高速缓存类型 |
L2 |
| 处理器安装数量 |
1 |
| 处理器高速缓存 |
1 MB |
图像
| 板载图形适配器系列 |
AMD Radeon HD 7000 |
| 板载图形适配器 |
Y |
| 独立显卡类型 |
Not available |
另外
| 主板晶片 |
AMD M3L |
| 以太网连接器 |
Y |
| 以太网路(RJ-45)连接接口数量 |
1 |
AMD E2-1800 1.7 GHz, 2GB DDR3 1333 MHz, 64GB mSATA SSD, AMD Radeon HD 7340, Gigabit Ethernet, WLAN 802.11n/g/b, MMC/SD/+, HDMI, eSATA/USB 2.0, 2xUSB 3.0, 2xUSB 2.0, no OS

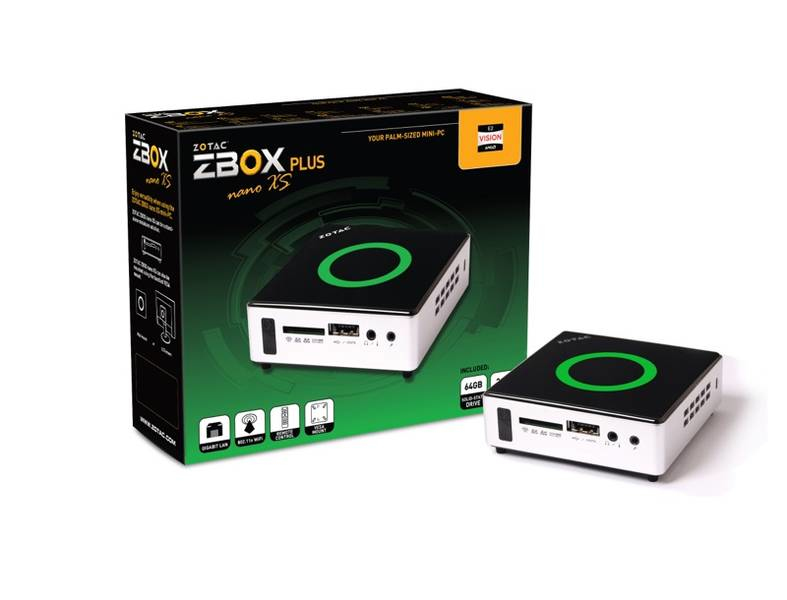

Experience a high-definition computing experience with rich graphics and web content with the extra small and pocket able ZOTAC ZBOX nano XS AD13 Plus. An AMD E2-1800 with Radeon HD 7340 graphics processing forms the heart of the ZOTAC ZBOX nano XS AD13 Plus and delivers stunning hardware-accelerated HD video online and offline, outstanding system-responsiveness and Microsoft DirectX 11 compatibility.
Storage in the ZOTAC ZBOX nano XS AD13 Plus is handled by a 64GB solid-state drive that delivers lightning-fast boot times for an instant-on computing experience. The tiny ZOTAC ZBOX nano XS AD13 Plus packs plenty of expansion capabilities and features with USB 3.0, USB 2.0 and eSATA expansion and an integrated IR receiver with bundled Media Remote to easily take control of the mini-PC from the comfort of a so
