技术细节
| D通道协议 |
PPP |
| 类型 |
Analog/ISDN |
| 支持数据传输率 |
28800/19200/14400 bps |
| 数据压缩 |
ITU V.42bis/MNP-5 |
| 纠错 |
ITU V.42 (LAPM)/MNP-4/MNP-3 |
| 网络经营者的支持(语音/数据) |
EURO-ISDN (DSS1/ETSI)/ISDN 5ESS/ISDN - 1(NI-1)/ISDN 1TR6/ISDN DMS-100 |
调制解调器
| 最大传真传送速率 |
14400 bps |
| 传播方法 |
Analog/ISDN |
| 接口类型 |
Serial RS-232/Parallel |
| 调制解调器速度 |
128 Kbit/s |
| B通道协议 |
PPP, V.120, V.110, X.75 |
| 内存类型 |
DRAM |

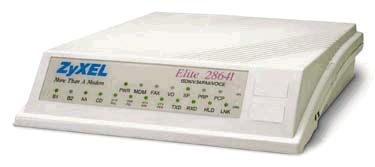

Elite 2864I - ISDN Modem
The Elite 2864I combines advanced ISDN technology with V.34 capabilities and an extensive array of analog features to provide users with a high-performance, multifunctional product.
For unrivaled versatility and connectability with other ISDN devices, the Elite 2864I supports PPP Multilink Protocol, Async to Sync PPP, and Rate Adaption with V.120, V.110, and X.75 protocols. The Elite 2864I operates in a wide range of environments including DOS, Windows® ‘95, Windows NT®, Macintosh®, UNIX®, Novell®, Amiga® and IBM® AS400/RS6000.
Blazing Speeds
The Elite 2864I digital modem allows ISDN's two 64Kbps B Channels to be combined for 128Kbps. For even higher throughput speeds, it supports V.42bis and Stac® compression over ISDN.
Applications on Demand
Designed as a universal solution, the Elite 2864I provides the ability to communicate with ISDN devices and analog devices over an ISDN line. The Elite 2864I may also be connected to local analog telephone lines by replacing the included ISDN module with an analog line module (sold separately). A key feature of the Elite 2864I is the ZyXEL Multi-Auto Answer technique. This process automatically switches the Elite 2864I to the correct protocol for incoming data calls, freeing the user from manual configuration.
Traditionally, users had one telephone line that could be used for a single purpose. With the Elite 2864I, users have two B Channels that can be used for simultaneous communications. For example, you can transmit data at 64Kbps using one B Channel and have voice conversation over the other B Channel. This is accomplished by the built-in analog adapter, which allows use of analog devices such as fax machines, analog modems or analog phones over digital ISDN lines.
Impressive Feature Set
The Elite 2864I incorporates a full range of features along with its core ISDN/V.34 digital modem capabilities. It is fully backward compatible with V.32bis, V.32, and lower speed standards.
The Elite 2864I features built-in G3 fax send and receive functionality. Users may also print incoming faxes directly to a PCL or Postscript compatible printer via the parallel interface. To further enhance standalone fax operation, the Elite allows up to 8 Megabytes of DRAM to be added for storage and retrieval of incoming faxes.
The Elite 2864I’s advanced voice capability includes voice AT commands, voice digitization and compression schemes, and DTMF tone detection. These features easily accommodate advanced telephony applications such as interactive voice messaging.
It integrates high speed serial and parallel interfaces with serial DTE speeds up to 460.8Kbps. The parallel interface connects to a bi-directional PC parallel port for greater DTE speeds.
Upgrades in a Flash
The Elite 2864I’s Flash EPROM memory allows the addition of new features by uploading the latest firmware. Kernel Mode is implemented for recovery from failed flash uploads without the need for factory repairs
