数据传输
| 支持数据传输率 |
10/100/1000 Mbps |
| 最大数据传输率 |
1 Gbit/s |
联网
| 自动 MDI / MDI - X 检测功能 |
Y |
| 流量控制支持 |
Y |
| 10G支持 |
N |
端口 & 界面
| 基本交换 RJ-45 以太网端口数量 |
8 |
| 以太网铜缆技术 |
100BASE-TX, 1000BASE-T, 10BASE-T |
| DC-IN插口 |
Y |
| 千兆以太网(铜)端口数量 |
8 |
设计
| 安全 |
UL 60950-1, EN 60950-1, IEC 60950-1 |

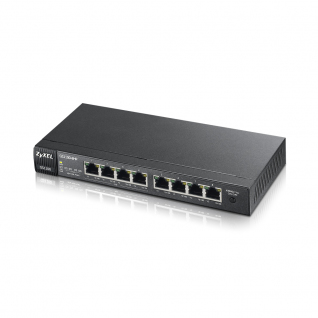

8-port Gigabit Ethernet, Unmanaged, PoE(802.3at), Auto MDI/MDI-X, Black
The ZyXEL GS1100 Series is the best solution for instant Gigabit connectivity in office environments demanding silent operation and better energy efficiency. With power-saving functions, Gigabit Ethernet and a fanless design, the GS1100 Series provides plug-and-play simplicity for high-bandwidth network applications.
The ZyXEL GS1100 Series consists of three unmanaged switches: the GS1100-8HP, GS1100-16 and GS1100-24. The GS1100-16 features 16 GbE ports and the GS1100-24 is a 24-port Gigabit switch with 2 additional open Gigabit SFP slots. The GS1100-8HP is an 8-port Gigabit switch that complies with the IEEE 802.3at Power over Ethernet (PoE) Plus standard, providing 4 PoE ports with up to 30 watts per port.
IEEE 802.3az Energy Efficient Ethernet
Reduces power consumption during the low link utilization periods.
Detect Inactive Link
Adjust power consumption according to the number of active network devices.
Detect Cable Length
Adjust power usage according to the length of connected Ethernet cables.
Power On/Off Switch
Allows customers to turn off switch when not in use.
