端口 & 界面
| 快速以太网(铜缆)端口数量 |
24 |
| 基本交换 RJ-45 以太网端口类型 |
Fast Ethernet (10/100) |
| 控制台端口 |
RS-232 |
| 基本交换 RJ-45 以太网端口数量 |
24 |
| 以太网铜缆技术 |
100BASE-TX, 10BASE-T |
| Combo SFP 端口数量 |
4 |
设计
| 电磁兼容性 |
FCC Part 15 (Class A), CE EMC (Class A) |
| 格式要素 |
1U |
| 机架安装 |
Y |
| 安全 |
UL 60950-1, CSA 60950-1, EN 60950-1, IEC 60950-1 |
管理功能
| 支持多重播放 |
Y |
| 支持管理信息基本原则 |
SNMP MIB II (RFC 1213), RFC 1157 SNMP v1, RFC 1493 Bridge MIBs, RFC 1643 Ethernet MIBs, RFC 1155 SMI, RFC 2674 SNMPv2, SNMPv2c, RFC 1757 RMON, SNMPv2, SNMPv2c, RFC 2012 SNMPv2 MIB, RFC 2013 SNMPv2 MIB |
| 交换层 |
L2 |
| 支持服务质量(QoS) |
Y |
数据传输
| MAC 地址表 |
16000 entries |
| 交换容量 |
12.8 Gbit/s |
| VLAN 数量 |
4000 |
| 队列数量 |
8 |
联网
| 端口镜像 |
Y |
| 广播风暴控制 |
Y |
| VLAN支持 |
Y |
| IGMP侦听 |
Y |
| 自动 MDI / MDI - X 检测功能 |
Y |
| 链路汇集 |
Y |
| 生成树协议 |
Y |
| 流量控制支持 |
Y |
| 动态主机配置协议客户 |
Y |
| 10G支持 |
N |
| 全双工传输 |
Y |
安全
| SSH / SSL支持 |
Y |
| MAC(媒体存储控制)地址过滤 |
Y |

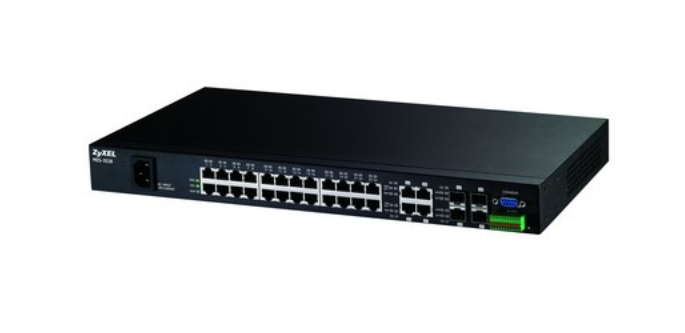

Layer 2+ Metro Ethernet Switch, 24 x 10/100 Base-Tx RJ-45, 4 x GbE RJ-45 / SFP Combo, 19” Rack, 2.628 kg
The Switch is a layer-2 standalone Ethernet switch with additional layer-2, layer-3, and layer-4 features suitable for metro ethernets. The Switch has twenty-four 10/100 Mbps Ethernet ports. It also has four GbE dual personality interfaces with each interface comprising one mini-GBIC slot and one 100/1000 Mbps RJ-45 port, with either port or slot active at a time.
With its built-in web configurator, managing and configuring the Switch is easy. In addition, the Switch can also be managed via Telnet, any terminal emulator program on the console port, or third-party SNMP management.
