Speicher
Unterstützte Arbeitsspeichergeschwindigkeit |
1066, 1333 MHz |
Unterstützte Arbeitsspeicher |
DDR3-SDRAM |
Arbeitsspeicher Typ |
SO-DIMM |
Anzahl der Speichersteckplätze |
1 |
RAM-Speicher maximal |
8 GB |
Anschlüsse und Schnittstellen
Serielle Anschlüsse |
1 |
Anzahl DisplayPort Anschlüsse |
1 |
Anzahl USB 3.0 (3.1 Gen 1) Typ-A Ports |
2 |
Anzahl VGA (D-Sub) Anschlüsse |
1 |
DC-Anschluss |
Y |
Speichermedien
unterstützte Speicherlaufwerksgrößen |
2.5 " |
Anzahl der unterstützten Speicherlaufwerke |
1 |
Unterstützte Speicherlaufwerke |
HDD |
Erweiterungssteckplätze
Mini PCI-Express-Slots |
1 |
PCI-Express-Slots-Version |
3.0 |
Hauptplatine
Anzahl unterstützter Prozessoren |
1 |
Prozessor
Prozessor Boost-Taktung |
2.8 GHz |
Prozessor Lithografie |
22 nm |
Thermal Design Power (TDP) |
17 W |
Pufferspeicher L3 |
4 MB |
Anzahl Prozessorkerne |
2 |
Eingebauter Prozessor |
Y |
Prozessor-Taktfrequenz |
1.7 GHz |
Grafik
Eingebaute Grafikadapter |
Y |
Prozessor Besonderheiten
Intel® Fast Memory Access |
Y |
Intel® Flex Memory Access |
Y |
Execute Disable Bit |
Y |
Leerlauf Zustände |
Y |
Thermal-Überwachungstechnologien |
Y |
Intel® Trusted-Execution-Technik |
Y |
Intel® Quick-Sync-Video-Technik |
Y |
Intel® Insider™ |
N |
Intel® 64 |
Y |
Intel® Clear Video Technologie |
N |
Intel® Dual Display Capable Technology |
Y |
Eingebettete Optionen verfügbar |
Y |
Intel® Virtualisierungstechnik für direkte I/O (VT-d) |
Y |
Intel® Anti-Theft Technologie (Intel® AT) |
N |
Intel® Identity-Protection-Technologie (Intel® IPT) |
Y |
Intel® Hyper-Threading-Technik (Intel® HT Technology) |
Y |
Intel® Turbo-Boost-Technologie |
2.0 |
Intel® My-WiFi-Technik (Intel® MWT) |
Y |
Intel® vPro™ -Technik |
Y |
Intel® VT-x mit Extended Page Tables (EPT) |
Y |
Intel® FDI-Technik |
Y |
Verbesserte Intel SpeedStep Technologie |
Y |
Intel® Demand Based Switching |
N |
Intel® Wireless-Display (Intel® WiDi) |
N |
Intel® Clear Video HD Technology für (Intel® CVT HD) |
Y |
Netzwerk
LAN-Controller |
Intel 82579LM |
WLAN |
N |
Bluetooth |
N |
Design
LED-Anzeigen |
Y |
Kühlung |
Active |
Energie
Netzteil Ausgangsspannung |
19 V |
Netzteiltyp |
External AC adapter |
Zusätzlich
InTru™-3D-Technik |
Y |
Motherboard Chipsatz |
Intel QM77 Express |
Grafikkarte |
HD Graphics 4000 |
Eingebauter Ethernet-Anschluss |
Y |
Intel® AES New Instructions (Intel® AES-NI) |
Y |

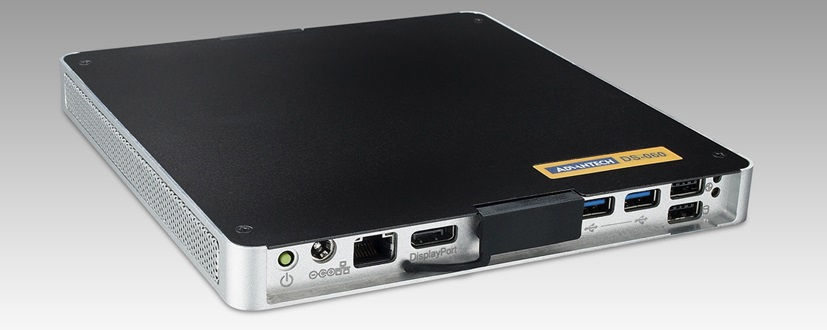

Intel Core i7-3517UE (4M Cache, up to 2.80 GHz), AMI uEFI 64 Mbit, DDR3 1066/1333MHz, VGA, DP, 2 x USB 3.0, 19 V DC
- Vereinheitlichtes 19 mm dickes Gehäuse, betrieben mit mehreren Intel-Plattformen (bis zu 45 W)
- Zwei 1080P-Displays über Onboard DisplayPort/VGA
- 19 VDC Strom
- Große Erweiterbarkeit über interne Mini PCIe-Schnittstelle (z. B. WLAN, 3G oder TV-Tuner)
- Unterstützt iManager, SUSIAccess und Embedded Software-APIs
- Kompatibel mit Energy Star 5.0
