Erweiterungssteckplätze
| PCI-Slots |
3 |
| PCI-Express x16-Slots |
1 |
| PCI-Express x1-Slots |
2 |
Leistung
| Motherboardformfaktor |
ATX |
| Audio-System |
HDA |
| Komponente für |
PC |
Speicher
| Unterstützte Arbeitsspeichergeschwindigkeit |
800, 1066, 1333, 1600, 1800 MHz |
| Ohne ECC |
Y |
| Speicherkanäle |
Dual |
| Unterstützte Speichermodulkapazitäten |
1GB, 2GB, 4GB, 512MB |
| Anzahl der Speichersteckplätze |
4 |
| RAM-Speicher maximal |
16 GB |
BIOS
| BIOS-Speichergröße |
4 MB |
| BIOS-Typ |
AMI |
Rückwandplatine Anschlüsse
| Parallel Port |
1 |
| Serielle Anschlüsse |
1 |
| Anzahl PS/2 Anschlüsse |
2 |
| Kopfhörerausgänge |
1 |
| Mikrofon-Eingang |
Y |
Interne Anschlüsse
| Anzahl USB 2.0 Schnittstellen |
2 |
| SATA Anschlüsse |
4 |
| Zahl der parallelen ATA Stecker |
1 |
| ATX Stromstecker (24-pol.) |
Y |
| Power Fan Connector |
Y |
| Diskettenlaufwerkstecker |
Y |
| Anzahl Molex Anschlüsse 4pin |
1 |
| CD/AUX Audio-Eingang |
Y |
| CPU Ventilatorstecker |
Y |
| Chassis Intrusion Stecker |
Y |
| Front Panel Audiostecker |
Y |
Netzwerk
| Wake-on-LAN bereit |
Y |
| Netzwerkfunktionen |
Ethernet |
Grafik
| Eingebaute Grafikadapter |
N |
Verpackungsinhalt
| Treiber enthalten |
Y |
| Schnellinstallationsanleitung |
Y |
Zusätzlich
| Motherboard Chipsatz |
AMD 480X CrossFire |
| System-Bus |
2 GT/s |
| Anzahl Ethernet-LAN-Anschlüsse (RJ-45) |
1 |

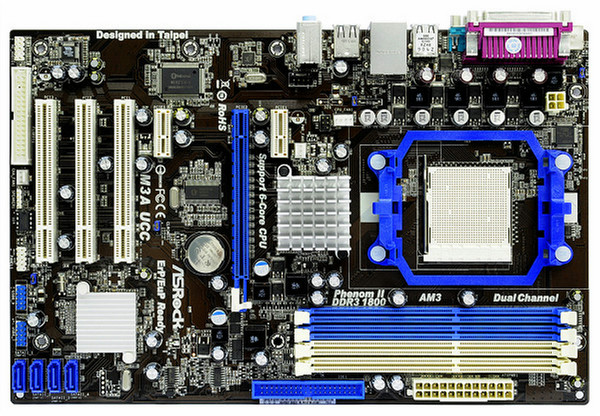

AM3, AMD 480X CrossFire/SB600, 4 x DDR3 DIMM, Gigabit Ethernet, SATAII, ATA133, ATX
ASRock UCC
Key to Unlock CPU Core
Unlock CPU potential up to 6 cores, AMD X2 / X3 Core ⇒ X4 Core, AMD X4 Core ⇒ X6 Core
100% CPU Performance Boost!
ASRock AIWI
ASRock AIWI - Turn Your iPhone Into Game Joystick
Playing Games By Holding Your iPhone or iPod touch
Using AIWI to connect your apple devices to ASRock system, and you can interact with the PC games with delicate touches and body motion while getting responsive shakes and vibrations that correspond from the game stores.
ASRock App Charger
Fast Charge & Charge Anytime
Simply installing the App Charger driver, it makes your iPhone charge up to 40% faster than before. ASRock App Charger supports continuous charging when your PC enters Standby mode (S1), Suspend to RAM (S3), hibernation mode (S4) or power off (S5). The App Charger technology has been fully applied on ASRock Full series motherboards.
ASRock SmartView
It is the smart start page for IE that combines your most visited web sites, your history, your Facebook friends and your real-time newsfeed into an enhanced view for a more personal Internet experience. ASRock motherboards are exclusively equipped with the SmartView utility that helps you keep in touch with friends on-the-go.
EuP / ErP Ready
EuP / ErP, stands for Energy Using Product, was a provision regulated by European Union to define the power consumption for the completed system. According to EuP / ErP, the total AC power of the completed system shall be under 1.00W in off mode condition. To meet EuP / ErP standard, the EuP / ErP ready motherboard and the EuP / ErP ready power supply are required. (The EuP / ErP ready power supply must meet the standard of 5v standby power efficiency is higher than 50% under 100 mA current consumption.).
Instant Flash
ASRock Instant Flash is an exclusive and the most user-friendly BIOS flash utility developed by ASRock. It is embedded in Flash ROM which is used to update the system BIOS without having to enter operating systems like MS-DOS or Windows.
Instant Boot
ASRock has overcome the technical obstacles and exclusively invented a new technology that allows you to turn on your PC and boot up to Windows® in 4 seconds! ASRock Instant Boot not only excels in the Boot Up speed (3~4 sec.), it also provides clean OS, and saves the most power energy.
OC DNA
OC DNA, it’s an exclusive utility developed by ASRock’s outstanding RD team, provides a convenient way for user to share the OC settings with others. It helps you to save your overclocking settings under the operating system and simplifies the complicated recording process of overclocking settings. With OC DNA, you can save your OC settings as a profile and send the profile to your friends! Your friends then can load the OC profile to their own system to get the same OC settings as yours!
ASRock Software Suite
ASRock software suite is designed with the customer-oriented concept, delivers the best possible experience for today’s most demanding users.
