Leistung
Motherboardformfaktor |
Micro ATX |
Audio-System |
Realtek ALC892 |
Komponente für |
PC |
Speicher
Unterstützte Arbeitsspeichergeschwindigkeit |
1066, 1333 MHz |
Ohne ECC |
Y |
Speicherkanäle |
Dual |
Unterstützte Speichermodulkapazitäten |
1GB, 2GB, 4GB, 8GB |
Anzahl der Speichersteckplätze |
4 |
RAM-Speicher maximal |
32 GB |
BIOS
BIOS-Speichergröße |
32 MB |
ACPI-Version |
2.0a |
Prozessor
Max. number of SMP processors |
1 |
Interne Anschlüsse
Anzahl USB 2.0 Schnittstellen |
8 |
S/PDIF aus Stecker |
Y |
SATA Anschlüsse |
6 |
Zahl der parallelen ATA Stecker |
1 |
ATX Stromstecker (24-pol.) |
Y |
Power Fan Connector |
Y |
TPM-Verbinder |
Y |
Zahl der IEEE1394-Stecker |
1 |
SATA III Anschlüsse |
2 |
SATA II Anschlüsse |
4 |
EPS Stromstecker (8-pin) |
Y |
CPU Ventilatorstecker |
Y |
Zahl der COM Stecker |
1 |
Chassis Intrusion Stecker |
Y |
Zahl der Chassisventilatorstecker |
1 |
Zahl der EATX Energie Stecker |
1 |
Front Panel Audiostecker |
Y |
Weitere Spezifikationen
Redundante Controller |
Marvell 88SE6111 |
Spezielle Eigenschaften |
MemOK! |
Netzwerk
Wake-on-LAN bereit |
Y |
Netzwerkfunktionen |
Gigabit Ethernet |
Grafik
Maximaler Grafikkartenspeicher |
1748 MB |
Eingebaute Grafikadapter |
Y |
Rückwandplatine Anschlüsse
Anzahl DVI-D Anschlüsse |
1 |
Anzahl PS/2 Anschlüsse |
1 |
Anzahl IEEE 1394/Firewire Anschlüsse |
1 |
S/PDIF-Ausgang |
Y |
Mikrofon-Eingang |
Y |
Anzahl eSATA Anschlüsse |
1 |
Anzahl DisplayPort Anschlüsse |
1 |
Anzahl USB 3.0 (3.1 Gen 1) Typ-A Ports |
2 |
Anzahl HDMI Anschlüsse |
1 |
Anzahl VGA (D-Sub) Anschlüsse |
1 |
Erweiterungssteckplätze
PCI-Slots |
1 |
PCI-Express x16-Slots |
2 |
PCI-Express x1-Slots |
1 |
PCI-Express-Slots-Version |
2.0 |
Zusätzlich
Motherboard Chipsatz |
Intel H67 |
Dual-Link-DVI |
Y |
Anzahl Ethernet-LAN-Anschlüsse (RJ-45) |
1 |

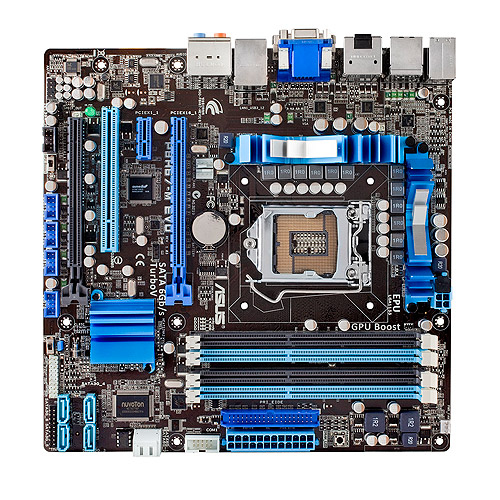

ASUS P8H67-M EVO. Unterstützte Arbeitsspeichergeschwindigkeit: 1066,1333 MHz, Speicherkanäle: Dual, Unterstützte Speichermodulkapazitäten: 1GB,2GB,4GB,8GB. Prozessorfamilie: Intel, Kompatible Prozessoren: Core i3,Core i5,Core i7, Prozessorsockel: LGA 1155 (Socket H2). Netzwerkfunktionen: Gigabit Ethernet, LAN-Controller: Realtek RTL8111E, Ethernet Schnittstellen Typ: Gigabit Ethernet. Komponente für: PC, Motherboard Chipsatz: Intel H67, Motherboardformfaktor: micro ATX. Maximaler Grafikkartenspeicher: 1748 MB, Parallele Verarbeitungstechnologie: Quad-GPU CrossFireX
