Rückwandplatine Anschlüsse
| Anzahl PS/2 Anschlüsse |
1 |
| Anzahl USB 3.0 (3.1 Gen 1) Typ-A Ports |
2 |
| Anzahl VGA (D-Sub) Anschlüsse |
1 |
Interne Anschlüsse
| Serielle Port-Headers |
1 |
| USB 3.0 (3.1 Gen 1) Anschlüsse |
1 |
| TPM-Verbinder |
Y |
| Power Fan Connector |
Y |
| ATX Stromstecker (24-pol.) |
Y |
| Chassis Intrusion Stecker |
Y |
| Anzahl USB 2.0 Schnittstellen |
1 |
Speicher
| Speicherkanäle |
Quad |
| Unterstützte DIMM-Modulkapazitäten |
64GB, 32GB, 16GB, 8GB, 4GB |
| Zahl der DIMM Slots |
8 |
| RAM-Speicher maximal |
512 GB |
| Unterstützte Arbeitsspeicher |
DDR4-SDRAM |
Erweiterungssteckplätze
| PCI-Express x8 (Gen 3.x)-Anschlüsse |
2 |
| PCI-Express x8 (Gen 2.x)-Anschlüsse |
1 |
| PCI-Express x16 (Gen 3.x)-Anschlüsse |
2 |
Leistung
| Integrierter BMC mit IPMI |
Y |
Grafik
| On-board Grafikadapter-Speicher |
32 MB |
Prozessor
| Prozessorhersteller |
Intel |
Prozessor Besonderheiten
| Intelligent Platform Management Interface (IPMI)-Unterstützung |
Y |
Laufwerk Controller
| RAID-Unterstützung |
Y |
| Festplatten-Schnittstelle |
Serial ATA III |
Zusätzlich
| Motherboard Chipsatz |
Intel C612 |
| Eingebauter Ethernet-Anschluss |
Y |
| Anzahl Ethernet-LAN-Anschlüsse (RJ-45) |
3 |

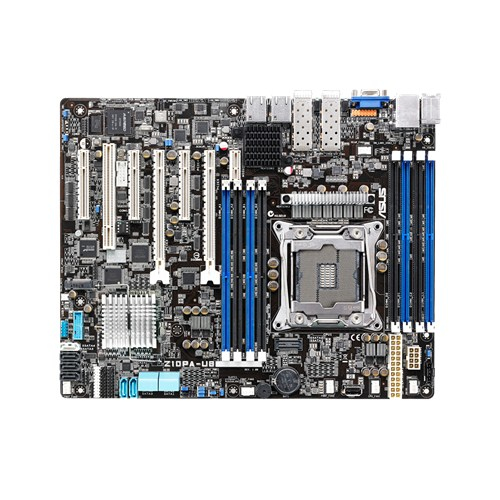

ASUS Z10PA-U8/10G-2S. Komponente für: Server, Motherboardformfaktor: ATX. Prozessorhersteller: Intel, Prozessorsockel: LGA 2011-v3. Unterstützte Arbeitsspeicher: DDR4-SDRAM, Unterstützte Arbeitsspeichergeschwindigkeit: 1333,1600,1866,2133,2400 MHz, RAM-Speicher maximal: 512 GB. Festplatten-Schnittstelle: Serial ATA III, RAID Level: 0, 1, 5, 10. Motherboard Chipsatz: Intel C612
