Sicherheit
| Firewall |
HTTP/S, SMTP, POP3, IMAP, FTP |
Datenübertragung
| IPS/IDS Durchsatz |
2000 Mbit/s |
| Firewall Durchsatz |
3900 Mbit/s |
| Maximum firewall Verbindungen |
600000 |
| Maximum firewall Verbindungen pro Sekunde |
15000 |
| VPN Durchsatz |
1700 Mbit/s |
Netzwerk
| Anzahl VPN-Tunnels |
4000 |
| Quality of Service (QoS) Unterstützung |
Y |
| DHCP-Client |
Y |
| DHCP-Server |
Y |
| Anzahl VPN Anschlüsse |
4000 |
| Anzahl der VLANs |
256 |
| Zahl der Benutzer |
1500 user(s) |
Protokolle
| Management-Protokolle |
Web GUI (HTTP, HTTPS), SSH, SNMP v2 |
| Unterstützte Netzwerkprotokolle |
TCP/IP, UDP, ICMP, HTTP, HTTPS, IPSec, ISAKMP/IKE, SNMP, DHCP, PPPoE, L2TP, PPTP, RADIUS |
| Router Protokoll |
OSPF, RIP-2, RIP-1 |
Weitere Spezifikationen
| Sicherheit |
XAUTH/RADIUS, Active Directory, SSO, LDA |
Design
| Rack-Einbau |
Y |
| Formfaktor |
1U |
Zusätzlich
| Anzahl Ethernet-LAN-Anschlüsse (RJ-45) |
8 |

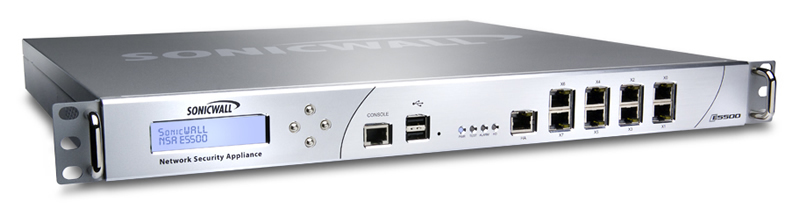

DELL NSA E5500 + 2 Yr CGSS, SonicWALL. Firewall Durchsatz: 3900 Mbit/s, VPN Durchsatz: 1700 Mbit/s. Zahl der Benutzer: 1500 Benutzer. Management-Protokolle: Web GUI (HTTP, HTTPS), SSH, SNMP v2, Unterstützte Netzwerkprotokolle: TCP/IP, UDP, ICMP, HTTP, HTTPS, IPSec, ISAKMP/IKE, SNMP, DHCP, PPPoE, L2TP, PPTP, RADIUS, Router Protokoll: OSPF,RIP-1,RIP-2. Unterstützte Sicherheitsalgorithmen: 128-bit WEP,256-bit AES,3DES,DES,MD5,PEAP,SHA-1,WEP,WPA, Firewall: HTTP/S, SMTP, POP3, IMAP, FTP. Stromverbrauch (typisch): 81 W, Stromversorgung: 250 W
