Prozessor
Prozessorbetriebsmodi |
64-bit |
Eingebettete Optionen verfügbar |
N |
FSB Gleichwertigkeit |
N |
Konfliktloser-Prozessor |
N |
Physical Address Extension (PAE) |
Y |
Speicherkanäle, vom Prozessor unterstützt |
Triple |
Durch den Prozessor (max) unterstützte Speicherbandbreite |
19.2 GB/s |
Speichertaktraten, vom Prozessor unterstützt |
800 MHz |
Prozessor Cache Typ |
Smart Cache |
Prozessor-Code |
SLBF8 |
Physical Address Extension (PAE) |
40 bit |
Thermal Design Power (TDP) |
80 W |
Prozessor-Paketgröße |
42.5 mm |
Thermal-Überwachungstechnologien |
N |
Leerlauf Zustände |
Y |
Execute Disable Bit |
Y |
Anzahl der QPI links |
2 |
Prozessor-Cache |
4 MB |
Anzahl installierter Prozessoren |
1 |
Anzahl Prozessorkerne |
4 |
CPU-Multiplikator (Bus-/Kernverhältnis) |
16 |
Prozessor Lithografie |
45 nm |
Prozessor-Taktfrequenz |
2.13 GHz |
Stepping |
D0 |
Prozessorsystemtyp |
DP |
Bus typ |
QPI |
Speichertypen, vom Prozessor unterstützt |
DDR3-SDRAM |
ECC vom Prozessor unterstützt |
Y |
Tcase |
76 °C |
Maximaler interner Speicher, vom Prozessor unterstützt |
144 GB |
Prozessor Besonderheiten
Intel® Hyper-Threading-Technik (Intel® HT Technology) |
N |
Intel® Anti-Theft Technologie (Intel® AT) |
N |
Intel® Smart Cache |
Y |
Intel® Virtualisierungstechnik für direkte I/O (VT-d) |
Y |
CPU Konfiguration (max) |
2 |
Intel® Dual Display Capable Technology |
N |
Intel® Clear Video Technologie |
N |
Intel® 64 |
Y |
Intel® Insider™ |
N |
Intel® Quick-Sync-Video-Technik |
N |
ARK Prozessorerkennung |
37096 |
Intel® Virtualization Technologie (VT-X) |
Y |
Intel® Trusted-Execution-Technik |
N |
Intel® Flex Memory Access |
N |
Intel® Fast Memory Access |
N |
Intel® Rapid-Storage-Technik |
N |
Intel® Turbo-Boost-Technologie |
N |
Intel® Clear Video Technology für Mobile Internet Devices (Intel® CVT for MID) |
N |
Intel® My-WiFi-Technik (Intel® MWT) |
N |
Intel® Enhanced Halt State |
Y |
Intel® Clear Video HD Technology für (Intel® CVT HD) |
N |
Intel® Wireless-Display (Intel® WiDi) |
N |
Intel® Demand Based Switching |
Y |
Verbesserte Intel SpeedStep Technologie |
Y |
Intel® FDI-Technik |
N |
Intel® VT-x mit Extended Page Tables (EPT) |
Y |
Intel® vPro™ -Technik |
N |
Energie
Anzahl von Stromversorgungseinheiten |
2 |
Stromversorgung - Eingang Frequenz |
50 - 60 Hz |
Speicher
Speichertaktfrequenz |
1333 MHz |
ECC |
Y |
RAM-Speicher |
4 GB |
Interner Speichertyp |
DDR3-SDRAM |
RAM-Speicher maximal |
192 GB |
Speichermedien
Festplatten-Formfaktor |
3.5 " |
Maximale Anzahl Laufwerke pro Gehäuse |
6 |
Hot-Swap |
Y |
Anschlüsse und Schnittstellen
Installationsslots |
5x PCI-Express2 x4, 2x PCI- Express2 x8 |
Serielle Anschlüsse |
2 |
Anzahl VGA (D-Sub) Anschlüsse |
2 |
Netzwerk
Netzwerkfähig |
Y |
Netzwerkfunktionen |
Ethernet, Fast Ethernet, Gigabit |
Unterstützte Netzwerkprotokolle |
10Base-T/100Base-TX/1000Base-T |
Design
Optisches Laufwerk - Typ |
DVD-RW |
Gehäusetyp |
Rack (2U) |
Weitere Spezifikationen
Slot Typ |
6x 3.5" SATA/SAS (hot-plug), 2x 3.5", 1x 5.25 |
Zusätzlich
Motherboard Chipsatz |
Intel 5520 |
InTru™-3D-Technik |
N |
Intel® AES New Instructions (Intel® AES-NI) |
N |
Eingebauter Ethernet-Anschluss |
Y |
System-Bus |
4.8 GT/s |
Anzahl Ethernet-LAN-Anschlüsse (RJ-45) |
2 |

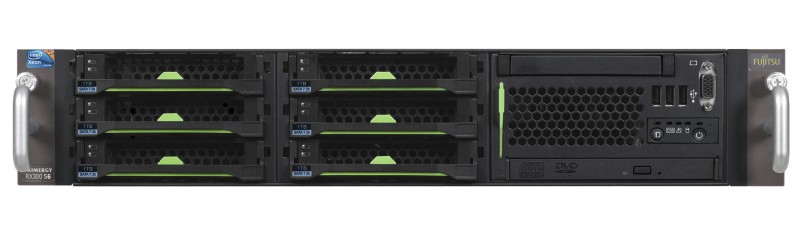

VFY:R3006SX010IN - Primergy RX300 S6, 1 x Intel Xeon E5506 / 2.13 GHz, 1x 4GB DDR3 PC3-10600 (1333MHz), DVD±RW (±R DL) / DVD-RAM, 5x PCI-Express2 x4, 2x PCI-Express2 x8, 6x 3.5" für SATA/SAS-Festplatten (hot-plug), 1x 5.25" für DVD, 1x 3.5" für bedienbare Laufwerke, 1x 3.5" für Local Service Panel oder Display, 2x Seriell, 10x USB, 2x VGA, 2x RJ45, 1x Service LAN, Rack (2U), 25kg
Der PRIMERGY RX300 S6 ist ein 2HE-Rack-Server, der für Virtualisierungszwecke optimiert wurde. Er bietet hohe, skalierbare I/O-Leistung, umfangreiche Speicheroptionen, Unterstützung wichtiger Hypervisor-Produkte und beste Performance dank aktueller CPU-Technologie.
