Speicher
Unterstützte Arbeitsspeichergeschwindigkeit |
1600, 1866, 2133 MHz |
Ohne ECC |
Y |
ECC |
Y |
Zahl der DIMM Slots |
4 |
Unterstützte Arbeitsspeicher |
DDR4-SDRAM |
Unterstützte UDIMM Modulkapazität |
16GB |
Unterstützte RDIMM Modulkapazität |
32GB |
Speicherspannung |
1.2 V |
Interne Anschlüsse
ATX Stromstecker (24-pol.) |
Y |
Power Fan Connector |
Y |
TPM-Verbinder |
Y |
SATA III Anschlüsse |
6 |
EPS Stromstecker (8-pin) |
Y |
Clear-CMOS-Taste |
Y |
CPU Ventilatorstecker |
Y |
Zahl der Chassisventilatorstecker |
2 |
Serielle Port-Headers |
1 |
Grafik
On-board Grafikadapter-Speicher |
512 MB |
Prozessor Besonderheiten
Intel® Trusted-Execution-Technik |
Y |
Intel® Virtualisierungstechnik (Intel® VT) |
VT-d, VT-x |
Technische Details
Thermal Design Power (TDP) |
45 W |
Integriertes LAN |
Y |
Maximale Anzahl der PCI-Express-Lanes |
32 |
Prozessor Codename |
Broadwell |
Speicherkanäle, vom Prozessor unterstützt |
Dual |
Intel® Virtualisierungstechnik für direkte I/O (VT-d) |
Y |
ECC vom Prozessor unterstützt |
Y |
Prozessor
Intel® Xeon-Serie |
D-1500 |
Prozessorhersteller |
Intel |
Lithographie |
14 nm |
Netzwerk
LAN-Controller |
Intel I210 |
Ethernet Schnittstellen Typ |
Fast Ethernet, Gigabit Ethernet |
WLAN |
N |
Erweiterungssteckplätze
PCI-Express x16 (Gen 3.x)-Anschlüsse |
1 |
Design
Motherboardformfaktor |
Mini ITX |
Komponente für |
Server |
Leistung
Trusted Platform Module (TPM) |
Y |
Rückwandplatine Anschlüsse
Anzahl USB 3.0 (3.1 Gen 1) Typ-A Ports |
2 |
Anzahl VGA (D-Sub) Anschlüsse |
1 |
Laufwerk Controller
Festplatten-Schnittstelle |
Serial ATA III |
Zusätzlich
PCI Express slots Anzahl |
1 |
Eingebauter Ethernet-Anschluss |
Y |
Intel® AES New Instructions (Intel® AES-NI) |
Y |
Anzahl Ethernet-LAN-Anschlüsse (RJ-45) |
3 |

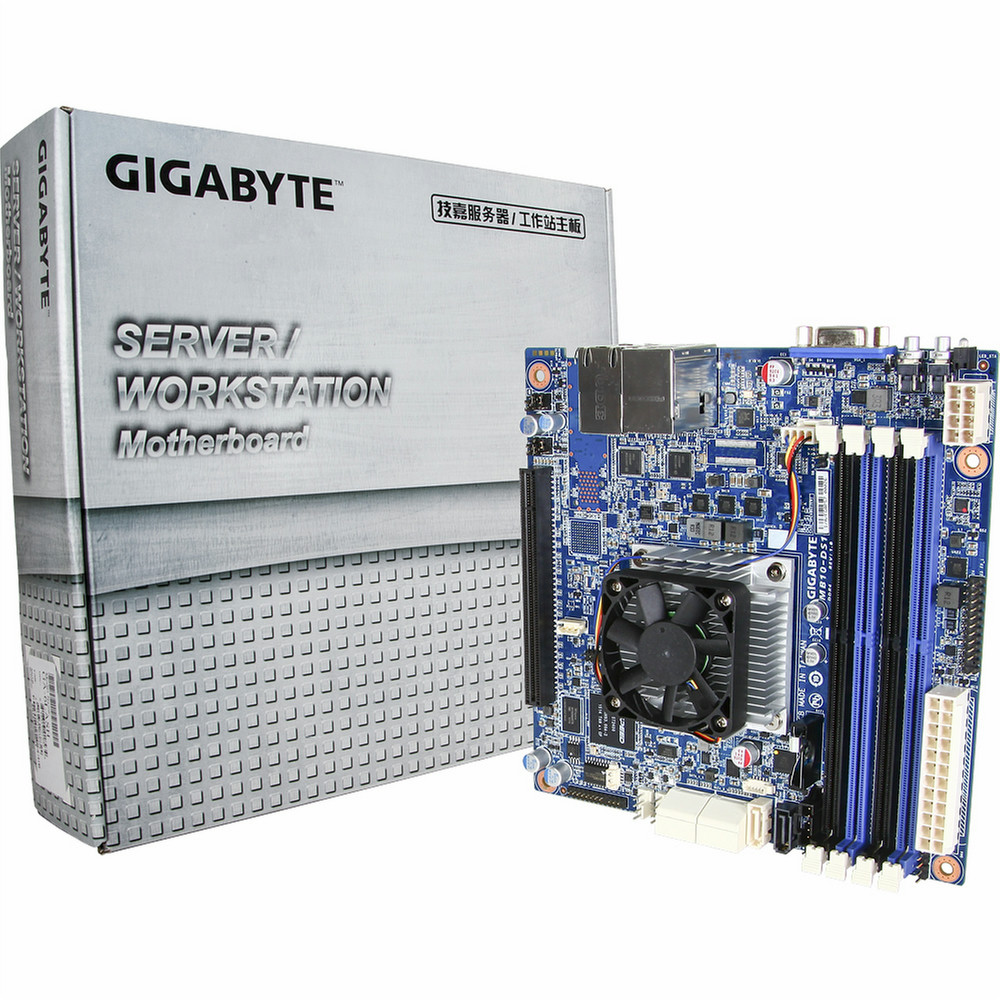

Gigabyte MB10-DS1. Motherboardformfaktor: mini ITX, Komponente für: Server. Prozessorhersteller: Intel, Prozessorsockel: BGA 1667, Intel® Xeon-Serie: D-1500. Unterstützte Arbeitsspeicher: DDR4-SDRAM, Unterstützte Arbeitsspeichergeschwindigkeit: 1600,1866,2133 MHz, Unterstützte RDIMM Modulkapazität: 32GB. Festplatten-Schnittstelle: Serial ATA III. Intel® Virtualisierungstechnik (Intel® VT): VT-d,VT-x
