Grafik
| Eingebaute Grafikadapter |
N |
Prozessor
| Prozessor-Cache |
4 MB |
| Prozessor Lithografie |
65 nm |
| Prozessor Cache Typ |
L2 |
| Frontsidebus des Prozessors |
1333 MHz |
| FSB Gleichwertigkeit |
Y |
| Prozessorbetriebsmodi |
64-bit |
| Anzahl Prozessorkerne |
2 |
| Komponente für |
Server/Workstation |
| Prozessor-Taktfrequenz |
2 GHz |
Funktionen
| Execute Disable Bit |
Y |
| Leerlauf Zustände |
Y |
| Thermal-Überwachungstechnologien |
Y |
| Thermal Design Power (TDP) |
65 W |
| Prozessor-Paketgröße |
37.5 mm |
| Anzahl der Processing Die Transistoren |
291 M |
| Eingebettete Optionen verfügbar |
Y |
Prozessor Besonderheiten
| Intel® Virtualization Technologie (VT-X) |
Y |
Energie
| VID Spannungsbereich |
1 - 1.5 V |
Weitere Spezifikationen
| Intel® Virtualisierungstechnik (Intel® VT) |
VT-x |
Zusätzlich
| Processing die Größe |
143 mm² |

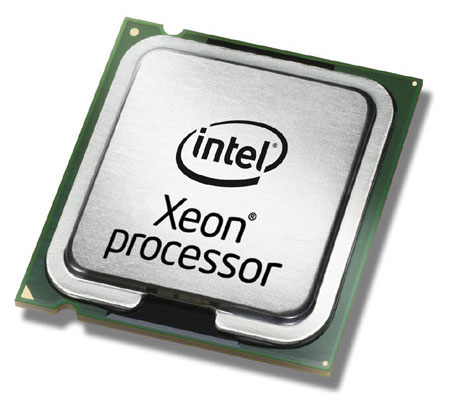

Intel Xeon Processor 5130 (4M Cache, 2.00 GHz, 1333 MHz FSB)
Intel Virtualization Technology allows one hardware platform to function as multiple “virtual” platforms. It offers improved manageability by limiting downtime and maintaining productivity by isolating computing activities into separate partitions.
Intel 64 architecture delivers 64-bit computing on server, workstation, desktop and mobile platforms when combined with supporting software. Intel 64 architecture improves performance by allowing systems to address more than 4 GB of both virtual and physical memory.
Idle States are used to save power when the processor is idle. C0 is the operational state, meaning that the CPU is doing useful work. C1 is the first idle state, C2 the second, and so on, where more power saving actions are taken for numerically higher C-states.
Enhanced Intel SpeedStep Technology is an advanced means of enabling high performance while meeting the power-conservation needs of mobile systems. Conventional Intel SpeedStep Technology switches both voltage and frequency in tandem between high and low levels in response to processor load. Enhanced Intel SpeedStep Technology builds upon that architecture using design strategies such as Separation between Voltage and Frequency Changes, and Clock Partitioning and Recovery.
Thermal Monitoring Technologies protect the processor package and the system from thermal failure through several thermal management features. An on-die Digital Thermal Sensor detects the core's temperature, and the thermal management features reduce package power consumption and thereby temperature when required in order to remain within normal operating limits.
Execute Disable Bit is a hardware-based security feature that can reduce exposure to viruses and malicious-code attacks and prevent harmful software from executing and propagating on the server or network.
