Interne Anschlüsse
Serielles Port via internem Header |
Y |
Anzahl USB 2.0 Schnittstellen |
6 |
SATA Anschlüsse |
6 |
USB 3.0 (3.1 Gen 1) Anschlüsse |
2 |
SATA III Anschlüsse |
6 |
Leistung
Motherboardformfaktor |
Micro ATX |
Extended Life Program (XLP) |
Y |
Intel® Rapid-Storage-Technik |
Y |
Motherboard ARK ID |
70903 |
Motherboard Chipsatz Familie |
Intel |
Intel® Active Management Technologie Version |
9.0 |
Trusted Platform Module (TPM) |
Y |
Intel® Active Management Technologie (Intel® AMT) |
Y |
Prozessor mit Intel-Graphics-Technik erforderlich |
Y |
Audio-System |
HDA |
Komponente für |
PC |
Intel® Matrix-Storage-Technik (Intel® MST) |
Y |
Energy Star-zertifiziert |
Y |
Speicher
Unterstützte Arbeitsspeichergeschwindigkeit |
1333, 1600 MHz |
ECC |
N |
Unterstützte Arbeitsspeicher |
DDR3-SDRAM |
Speicherspannung |
1.2, 1.25, 1.35, 1.5, 1.55, 1.6, 1.65, 1.7, 1.8 V |
Speicherkanäle |
Dual |
Arbeitsspeicher Typ |
DIMM |
Anzahl der Speichersteckplätze |
4 |
RAM-Speicher maximal |
32 GB |
Rückwandplatine Anschlüsse
Parallel Port |
1 |
Serielle Anschlüsse |
1 |
Anzahl DVI-D Anschlüsse |
1 |
Anzahl PS/2 Anschlüsse |
1 |
Anzahl DisplayPort Anschlüsse |
1 |
Anzahl USB 3.0 (3.1 Gen 1) Typ-A Ports |
4 |
Anzahl VGA (D-Sub) Anschlüsse |
1 |
Prozessor
Max. number of SMP processors |
1 |
Prozessor Verlustleistung (max) |
95 W |
Weitere Spezifikationen
Anzahl unterstützter Prozessoren |
1 |
Grafischer Ausgang |
VGA, DVI-D, DisplayPort* v1.2 |
Zahl der DIMM Slots |
4 |
CPU Konfiguration (max) |
1 |
Eingebettete Optionen verfügbar |
N |
Grafik
Eingebaute Grafikadapter |
Y |
Anzahl der Display unterstützt |
3 |
Prozessor Besonderheiten
Intel® Trusted-Execution-Technik |
Y |
Intel® Anti-Theft Technologie (Intel® AT) |
Y |
Intel® Virtualisierungstechnik (Intel® VT) |
Y |
Intel® vPro™ -Technik |
Y |
Technische Details
Thermal Design Power (TDP) |
95 W |
PCI-Unterstützung |
2 |
Status |
End of Interactive Support |
Gesamtanzahl der SATA-Anschlüsse |
6 |
Intel® Virtualisierungstechnik für direkte I/O (VT-d) |
Y |
Marktsegment |
DT |
Erfordert einen Prozessor mit Intel Graphics Technology |
Y |
Geboren am |
Q2'13 |
Startdatum |
2013-06-01T07:00:00 |
Produktbezeichnung |
Intel Desktop Board DQ87PG |
Unterstützte RAID-Konfiguration |
0,1,5,10 |
Audio-Kanäle |
6 2 |
Maximaler Speicher |
32 GB |
Maximaler interner Speicher, vom Prozessor unterstützt |
32 GB |
Formfaktor |
Micro ATX |
ECC vom Prozessor unterstützt |
N |
Anzahl an unterstützen Displays (On-Board-Grafik) |
3 |
Erweiterungssteckplätze
PCI-Slots |
2 |
PCI-Express x1-Slots |
1 |
PCI-Express x1 (Gen 2.x)-Anschlüsse |
1 |
PCI-Express x16 (Gen 3.x)-Anschlüsse |
1 |
Design
Produktfamilie |
Desktop board |
Produktreihe |
Intel desktop board with Intel Q87 |
Zusätzlich
Motherboard Chipsatz |
Intel Q87 |
RAM-Speicher maximal |
32768 MB |
Intel HD-Audio-Technik |
Y |
Anzahl Ethernet-LAN-Anschlüsse (RJ-45) |
1 |

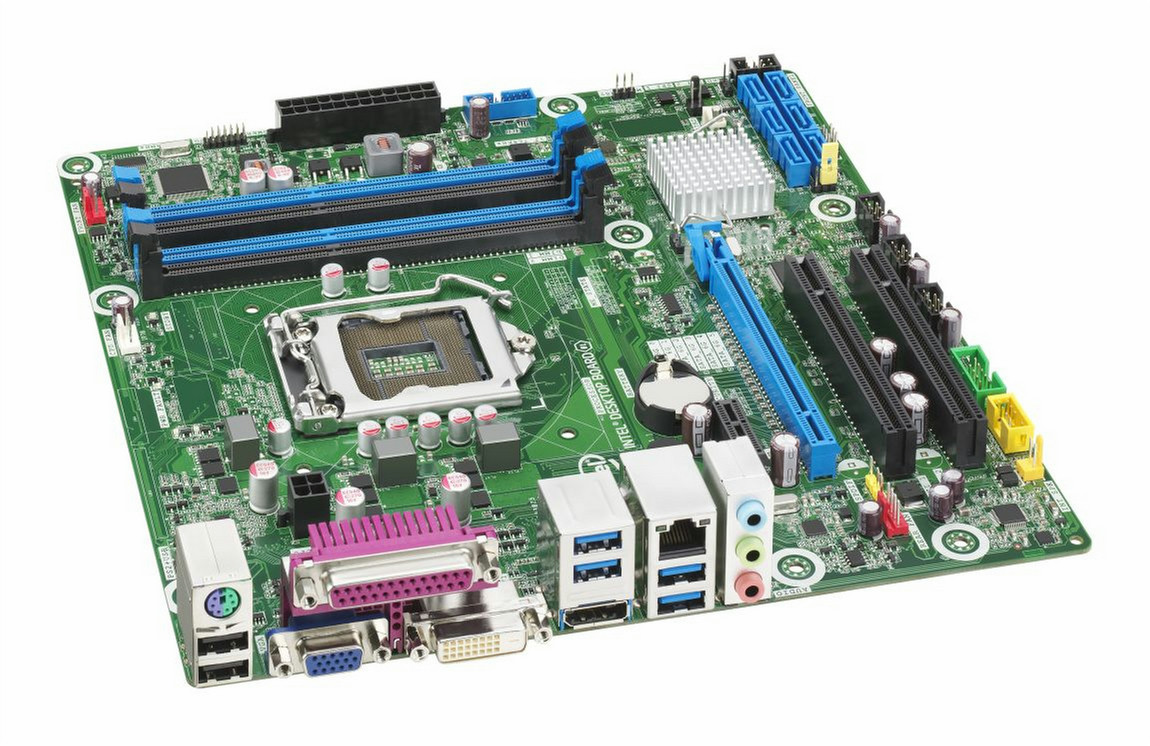

DQ87PG: Micro ATX, LGA1150, 95W, DDR3-1600/1333, VGA, DVI-D, DisplayPort, PCIe 3.0 x16, 6x SATA 6.0Gb/s
Als ultimative Unternehmenslösung unterstützt das Intel® PC-Mainboard DQ87PG die vierte Generation der Intel® Core™ vPro™ Prozessoren, um die Sicherheit und Produktivität in allen Unternehmensbereichen zu verbessern.
Das Mainboard unterstützt die Intel® Active-Management-Technik (Intel® AMT) 9.0 sowie die Intel® Identity-Protection-Technik (Intel® IPT) und die Intel® Anti-Theft-Technik (Intel® AT). Neben Standardvernetzungsfunktionen bietet das Intel PC-Mainboard DQ87PG großartige Erweiterungsoptionen mit USB 3.0, 6,0-Gbit/s-SATA und eSATA. Zudem eignet sich für die Ansteuerung von drei voneinander unabhängigen Bildschirmen.
