Datenübertragung
| MAC-Adressentabelle |
8000 entries |
| Datenrate |
10/100/1000 Mbps |
| Routing-/Switching-Kapazität |
48 Gbit/s |
| Max. Datenübertragungsrate |
1 Gbit/s |
Weitere Spezifikationen
| Paketübertragungsgeschwindigkeit |
14880/148800/1488000 p/s |
| Luftfeuchtigkeit (außer Betrieb) |
10 - 90% |
| Netzwerkfunktionen |
Ethernet, Fast Ethernet, Gigabit Ethernet |
Netzwerk
| Auto MDI/MDI-X |
Y |
| Unterstützung Datenflusssteuerung |
Y |
| Vollduplex |
Y |
Anschlüsse und Schnittstellen
| Anzahl der basisschaltenden RJ-45 Ethernet Ports |
24 |
| Anzahl Gigabit Ethernet (Kupfer) Anschlüsse |
24 |
| DC-Anschluss |
Y |
| Kupfer Ethernet Verkabelungstechnologie |
100BASE-TX, 1000BASE-T, 10BASE-T |
Leistung
| Datenpaket-Pufferspeicher |
0.5 MB |
| Stapelbar |
Y |
Management-Funktionen
| Quality of Service (QoS) Unterstützung |
Y |
| Web-basiertes Management |
Y |
Protokolle
| Unterstützte Netzwerkprotokolle |
CSMA/CD |
Power over Ethernet (PoE)
| Energie Über Ethernet (PoE) Unterstützung |
N |
Zusätzlich
| Jumbo Frames Unterstützung |
Y |
| Übertragungstechnik |
Wired |

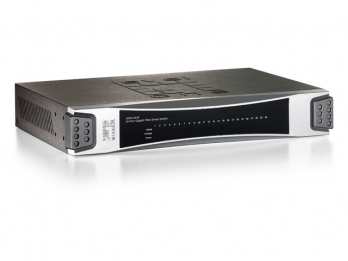

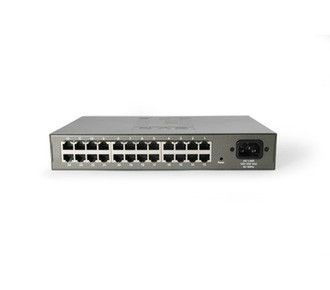

GSW-2440 24 Port OfficeCon Web Smart Gigabit Switch, 48Gbps Backplane, 500K Bytes RAM, Jumbo frame, QoS, Flow Control
Gigabit Ethernet Solution
LevelOne GSW-2440 Gigabit switch provides 24 Gigabit ports for fast transfer of files over the Local Area Network (LAN). As a Web Smart switch, it has advanced features allowing administrators to customize their network for advanced features.
Fast and Reliable Technology
GSW-2440 offers users with fast and reliable network. The store-and-forward architecture filters errors and forwards packets in a non-blocking environment. Flow control ensures stable and accurate data transfers. The 802.3x and backpressure flow control mechanisms work respectively for full and half duplex modes. This device supports Nway auto-negotiation protocol that detects the networking speed and the duplex modes (Full/Half) automatically. Auto-MDI/MDI-X function alleviates the effort to use crossover cables.
Web-based Management Interface
A friendly web-based UI lets users easily configure and maintain the device through any web browser. You can partition the switch into 24 groups using port-based VLAN technology. This switch also supports Quality of Service (QoS) to prioritise traffic for time-sensitive applications.
