Leistung
Motherboardformfaktor |
Mini ITX |
Unterstützte Linux-Betriebssysteme |
Y |
Motherboard Chipsatz Familie |
Intel |
Audio Kanäle |
7.1 channels |
Unterstützte Speicherlaufwerke |
HDD, SSD |
RAID Level |
1, 5, 10 |
Komponente für |
PC |
Unterstützte Windows-Betriebssysteme |
Y |
Speicher
Unterstützte Arbeitsspeichergeschwindigkeit |
2133, 2400, 2600, 2800, 3000, 3200, 3600, 3800 MHz |
Ohne ECC |
Y |
Unterstützte Arbeitsspeicher |
DDR4-SDRAM |
Speicherkanäle |
Dual |
Arbeitsspeicher Typ |
DIMM |
Anzahl der Speichersteckplätze |
2 |
RAM-Speicher maximal |
32 GB |
BIOS
BIOS-Typ |
UEFI |
Clear-CMOS-Taste |
Y |
Clear CMOS-Jumper |
Y |
Interne Anschlüsse
Anzahl USB 2.0 Schnittstellen |
1 |
ATX Stromstecker (24-pol.) |
Y |
TPM-Verbinder |
Y |
USB 3.0 (3.1 Gen 1) Anschlüsse |
1 |
SATA III Anschlüsse |
3 |
EPS Stromstecker (8-pin) |
Y |
CPU Ventilatorstecker |
Y |
Chassis Intrusion Stecker |
Y |
Zahl der Chassisventilatorstecker |
2 |
Front Panel Audiostecker |
Y |
Serielle Port-Headers |
1 |
Anzahl der M.2 (M)-Steckplätze |
2 |
Frontpanel-Stecker |
Y |
Rückwandplatine Anschlüsse
WiFi-AP-Antennenbuchse |
2 |
USB 3.1 (3.1 2, Gen) Anzahl der Steckplätze vom Typ A |
1 |
USB 3.1 (3.1 2, Gen) Anzahl der Steckplätze vom Typ C |
1 |
Anzahl PS/2 Anschlüsse |
1 |
Anzahl USB 2.0 Anschlüsse |
2 |
Kopfhörerausgänge |
1 |
S/PDIF-Ausgang |
Y |
Mikrofon-Eingang |
Y |
Anzahl DisplayPort Anschlüsse |
1 |
Anzahl USB 3.0 (3.1 Gen 1) Typ-A Ports |
2 |
Anzahl HDMI Anschlüsse |
1 |
Netzwerk
LAN-Controller |
Intel I219-V |
Ethernet Schnittstellen Typ |
Gigabit Ethernet |
Bluetooth |
Y |
WLAN-Standards |
IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
WLAN |
Y |
Prozessor
Prozessorsockel |
LGA 1151 (Socket H4) |
Kompatible Prozessoren |
Celeron, Core i3, Core i5, Core i7, Pentium |
Gewicht & Abmessungen
Tiefe |
170 mm |
Breite |
170 mm |
Zusätzlich
Motherboard Chipsatz |
Intel Z270 |
Bereit für Intel Optane Technologie |
Y |
Eingebauter Ethernet-Anschluss |
Y |
Anzahl Ethernet-LAN-Anschlüsse (RJ-45) |
1 |

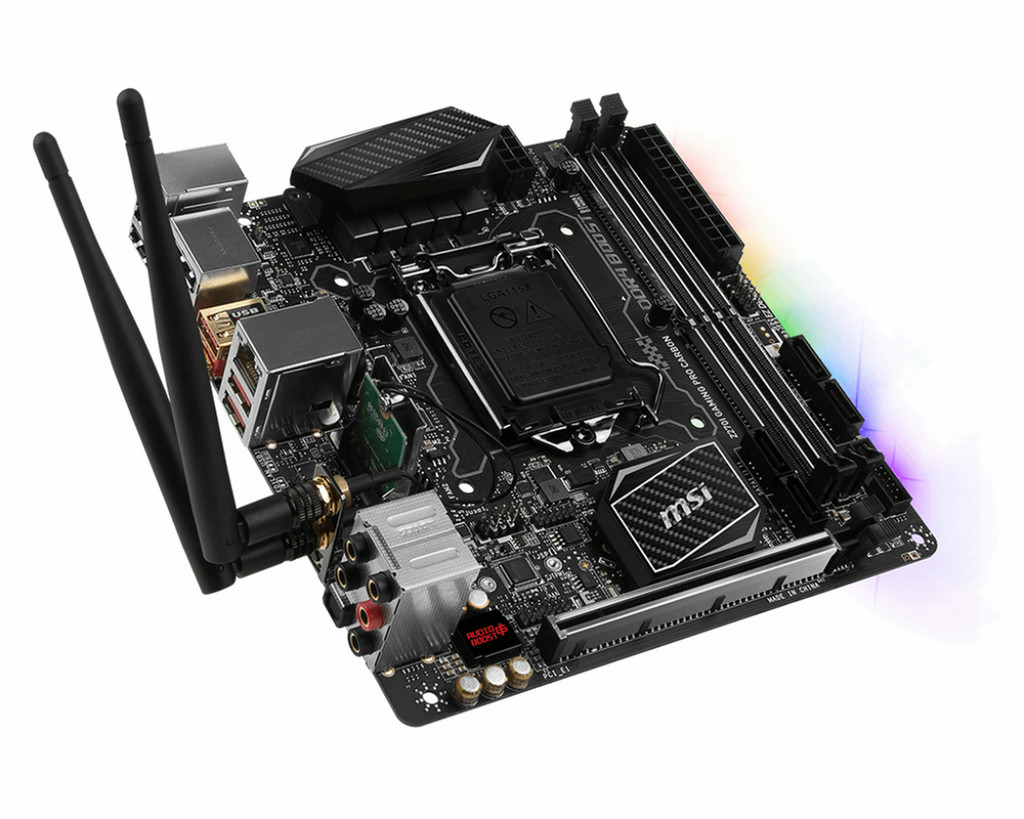

MSI Z270I Gaming Pro Carbon AC. Unterstützte Arbeitsspeicher: DDR4-SDRAM, Arbeitsspeicher Typ: DIMM, Unterstützte Arbeitsspeichergeschwindigkeit: 2133,2400,2600,2800,3000,3200,3600,3800 MHz. Prozessorfamilie: Intel, Kompatible Prozessoren: Celeron,Core i3,Core i5,Core i7,Pentium, Prozessorsockel: LGA 1151 (Socket H4). LAN-Controller: Intel I219-V, Ethernet Schnittstellen Typ: Gigabit Ethernet, WLAN-Standards: IEEE 802.11a,IEEE 802.11ac,IEEE 802.11b,IEEE 802.11g,IEEE 802.11n. Komponente für: PC, Motherboard Chipsatz Familie: Intel, Motherboard Chipsatz: Intel Z270. BIOS-Typ: UEFI
