Funktionen
| Leistungsfaktor |
0.9 |
| Lichtleistung |
26000 lm |
| Schutzart |
I |
| Typen kompatibler Glühbirnen |
LED |
| Gesamtleistung |
217 W |
| Farbtemperatur |
4000 K |
| Anzahl an Lampen |
80 |
| IK-Kodex |
IK08 |
| Lampentechnologie |
LED |
Technische Details
| Anzahl der LEDs |
80 |
| Optische Abdeckung/Linsenmaterial |
Glass |
| Treiberstrom |
1000 mA |
| Optische Abdeckung/Linsentyp |
Glass flat |
| Optiktyp |
Asymmetrical |
| Number of gear units |
1 |
| 12NC Logistikcode(s) |
912300023660 |
| Treiber-Fehlerrate bei 5000 Stunden |
0.5% |
Betriebsbedingungen
| Durchschnittliche Umgebungstemperatur |
25 °C |
| Umgebungstemperatur (max.) |
35 °C |
| Umgebungstemperatur (min.) |
-40 °C |
220-240 V, 50/60 Hz, 217 W, 4000 K, IP66, 53 A, 0.3 ms, 26000 lm, 120 lm/W

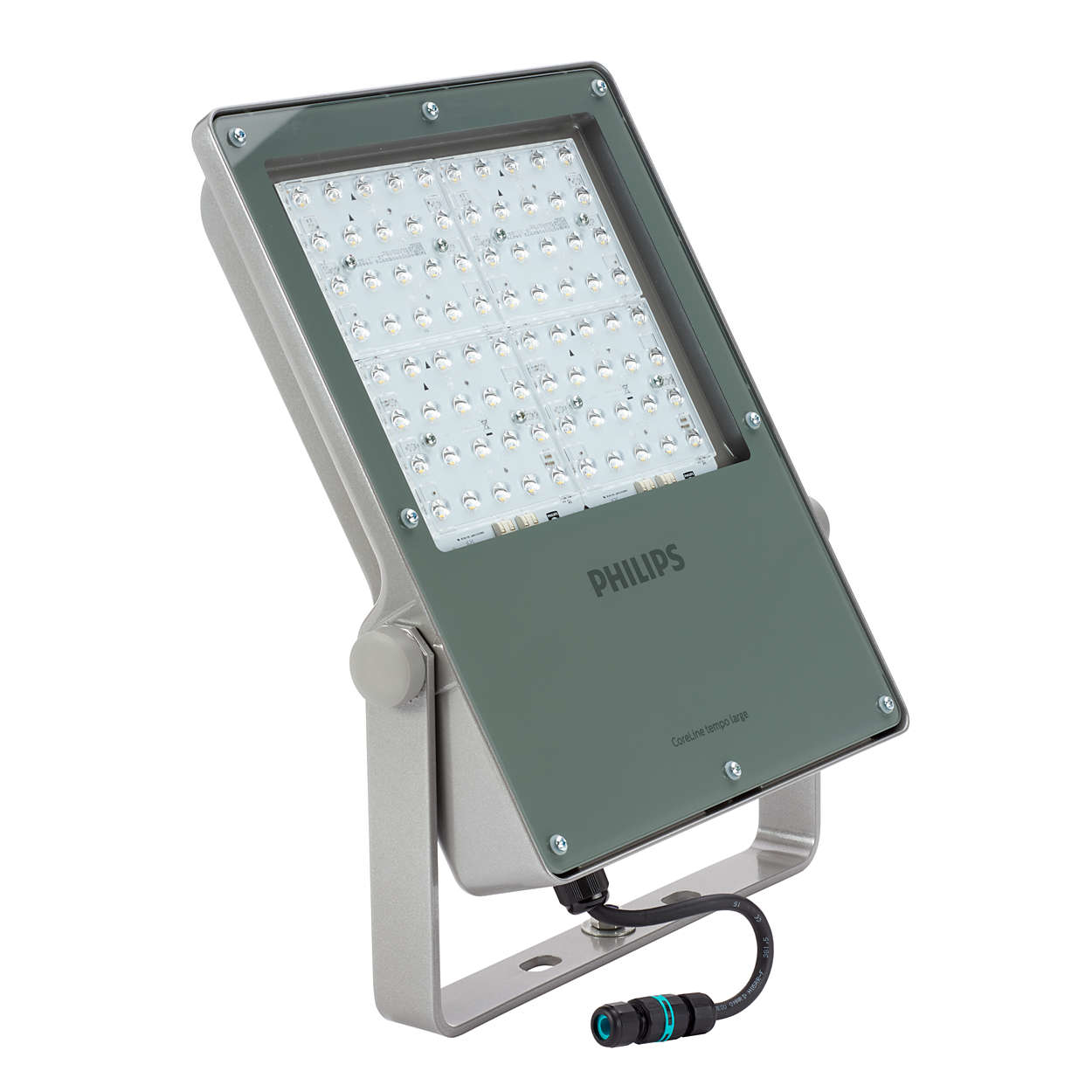

CoreLine tempo large is a highly efficient range of floodlights designed for 1:1 retrofit replacement of conventional technology, while retaining the same electrical installation and poles. A limited range of options makes it easy to find the best lux-for-lux replacement.The easy-to-install CoreLine tempo large offers lumen packages for many different application areas as well as a choice of high - performance asymmetrical and symmetrical optics. Ushaped universal mounting bracket and external quick 3-poles IP68 connector.
