Funktionen
| IK-Kodex |
IK08 |
| Lampentechnologie |
LED |
| Lichtleistung |
8000 lm |
| Schutzart |
I |
| Typen kompatibler Glühbirnen |
LED |
| Gesamtleistung |
60 W |
| Farbtemperatur |
4000 K |
| Anzahl an Lampen |
30 |
Betriebsbedingungen
| Umgebungstemperatur (max.) |
35 °C |
| Umgebungstemperatur (min.) |
-40 °C |
| Durchschnittliche Umgebungstemperatur |
25 °C |
Technische Details
| Anzahl der LEDs |
30 |
| Optische Abdeckung/Linsenmaterial |
Glass |
| Treiberstrom |
780 mA |
| Optische Abdeckung/Linsentyp |
Glass clear |
| Optiktyp |
Symmetrical |
| Number of gear units |
1 |
| 12NC Logistikcode(s) |
912300023683 |
| Treiber-Fehlerrate bei 5000 Stunden |
0.5% |
220-240 V, 50/60 Hz, 60 W, 4000 K, IP66, 53 A, 0.3 ms, 8000 lm, 133 lm/W

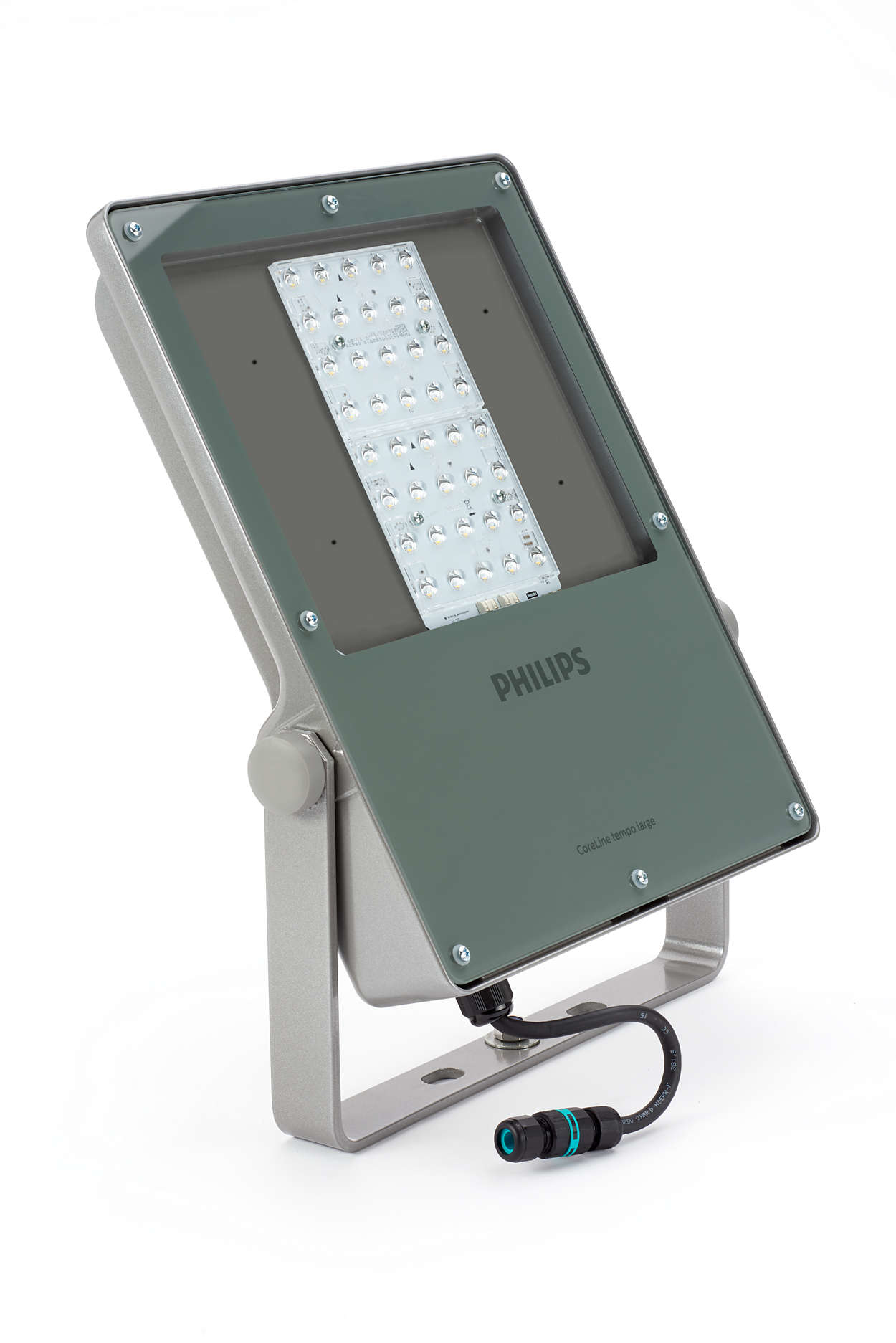

CoreLine tempo large is a highly efficient range of floodlights designed for 1:1 retrofit replacement of conventional technology, while retaining the same electrical installation and poles. A limited range of options makes it easy to find the best lux-for-lux replacement.The easy-to-install CoreLine tempo large offers lumen packages for many different application areas as well as a choice of high - performance asymmetrical and symmetrical optics. Ushaped universal mounting bracket and external quick 3-poles IP68 connector.
