Technische Details
| Treiber-Fehlerrate bei 5000 Stunden |
0.5% |
| Lampen-Familiencode |
GRN170S |
| Optic material |
Acrylate |
| Ambient temperature range |
-30 - 45 °C |
| Durchschnittliche Umgebungstemperatur |
25 °C |
| Optiktyp |
Medium beam |
| Code mechanischer Aufprallschutz |
IK07 |
| Treiber enthalten |
Y |
| Durchschnittliche Nutzungsdauer L90B50 |
25000 h |
| Durchschnittliche Nutzungsdauer L80B50 |
50000 h |
| Durchschnittliche Nutzungsdauer L70B50 |
70000 h |
| Initial chromaticy |
(0.38, 0.38) SDCM <3 |
| LED integriert |
Y |
| Glühdrahtprüfung |
850/5 |
| Lichtquelle |
12 pcs |
Design
| Plafond Farbe |
Aluminium |
| Deckenform |
Rectangular |
| Schutzart |
I |
| Schutzart (IP-Code) |
IP65 |
| Material |
Aluminium, Glass, Stainless steel |
Leistung
| RoHS-Kompatibel |
Y |
| Zertifizierung |
CE, ENEC |
| Strahlungswinkel |
114 ° |
Energie
| Energiequelle |
AC |
| AC Eingangsspannung |
220-240 V |
| AC Eingangsfrequenz |
50/60 Hz |
| Arbeitsspannung |
16 V |
Lampen
| Kompatible Glühbirne Energieeffizienzklassen |
A, A+, A++ |
| Farbtemperatur |
4000 K |
| Farbwiedergabeindex |
80 |
| Maximum Watt der Ersatzlampe |
110 W |
| Lichtleistung |
17000 lm |
Gewicht & Abmessungen
| Länge |
600 mm |
| Gewicht |
15200 g |
| Breite |
450 mm |
| Höhe |
150 mm |
Zusätzlich
| Initial LED luminous efficacy |
155 lm/W |
| Produktfarbe |
Aluminium |
| Lichtfarbe |
Neutral white |
110W, 17000 lm, 155 lm/W, 4000K, >80 CRI, IP65, IK07, 220-240V

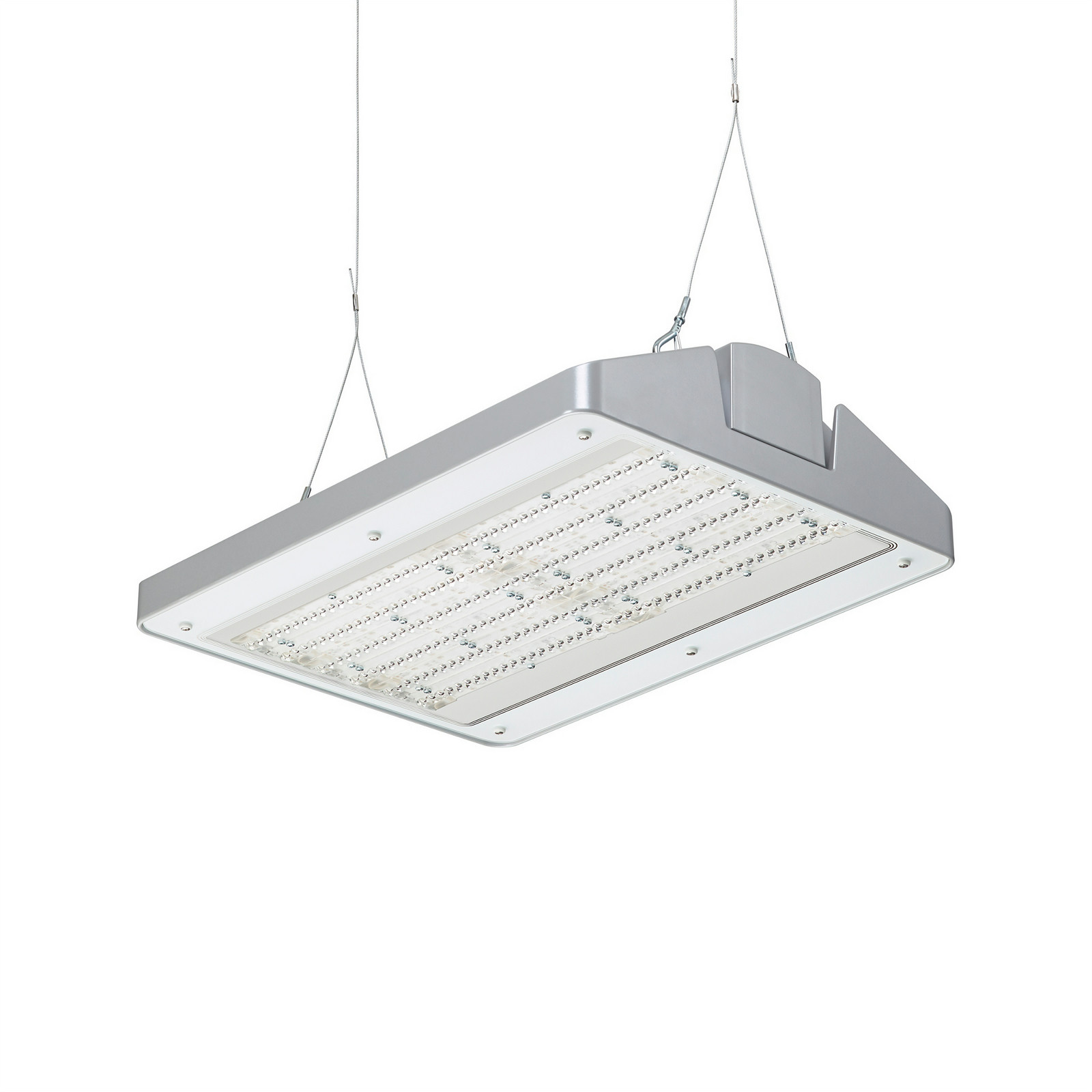

With the introduction of the GentleSpace LED luminaire in 2011, Philips achieved a breakthrough in high-bay lighting, offering a huge reduction in power consumption, a long service life and an innovative design. Now, with GentleSpace gen2, Philips continues to improve even further: an improved total cost of ownership, even in extreme conditions with the the GS-2 Xtreme version, which can be used up to +60 °C or 100,000 hrs of lifetime (L80), both ensured by an integrated over-heat protection. In addition, a wide variety of options – e.g. optics, coatings, mounting possibilities, cover materials and suitable for explosive zones 2/22 – are available to ensure an ideal solution for your application. Additionally, the GentleSpace gen2 can be equipped for use in a central emergency grid (PSED).
