Speicher
Unterstützte Arbeitsspeichergeschwindigkeit |
533, 667 MHz |
Zahl der DIMM Slots |
16 |
RAM-Speicher maximal |
64 GB |
Unterstützte Arbeitsspeicher |
DDR2-SDRAM |
Speicherspannung |
1.5 V |
Erweiterungssteckplätze
PCI-X-Slots |
4 |
PCI-Slots |
1 |
PCI-Express x16-Slots |
2 |
Interne Anschlüsse
Zahl der parallelen ATA Stecker |
1 |
ATX Stromstecker (24-pol.) |
Y |
Power Fan Connector |
Y |
SATA II Anschlüsse |
6 |
Integrierte SAS ports |
8 |
Parallel Verbinder |
Y |
CPU Ventilatorstecker |
Y |
Serielle Port-Headers |
1 |
Anzahl USB 2.0 Schnittstellen |
4 |
Prozessor
Anzahl unterstützter Prozessoren |
2 |
Prozessorhersteller |
Intel |
Anzahl der unterstützten Prozessorkerne |
2 |
Grafik
On-board Grafikadapter-Speicher |
32 MB |
Netzwerk
Ethernet Schnittstellen Typ |
Fast Ethernet, Gigabit Ethernet |
WLAN |
N |
LAN-Controller |
Intel 82563EB |
Rückwandplatine Anschlüsse
Anzahl PS/2 Anschlüsse |
2 |
Anzahl VGA (D-Sub) Anschlüsse |
1 |
Kopfhörerausgänge |
1 |
Mikrofon-Eingang |
Y |
Laufwerk Controller
RAID-Unterstützung |
Y |
Festplatten-Schnittstelle |
NL-SAS, Parallel ATA, Serial ATA II |
Design
Komponente für |
Server |
Motherboardformfaktor |
Extended ATX |
BIOS
BIOS-Typ |
Phoenix |
BIOS-Speichergröße |
8 MB |
Zusätzlich
Motherboard Chipsatz |
Intel 5000P |
Eingebauter Ethernet-Anschluss |
Y |
Anzahl Ethernet-LAN-Anschlüsse (RJ-45) |
2 |

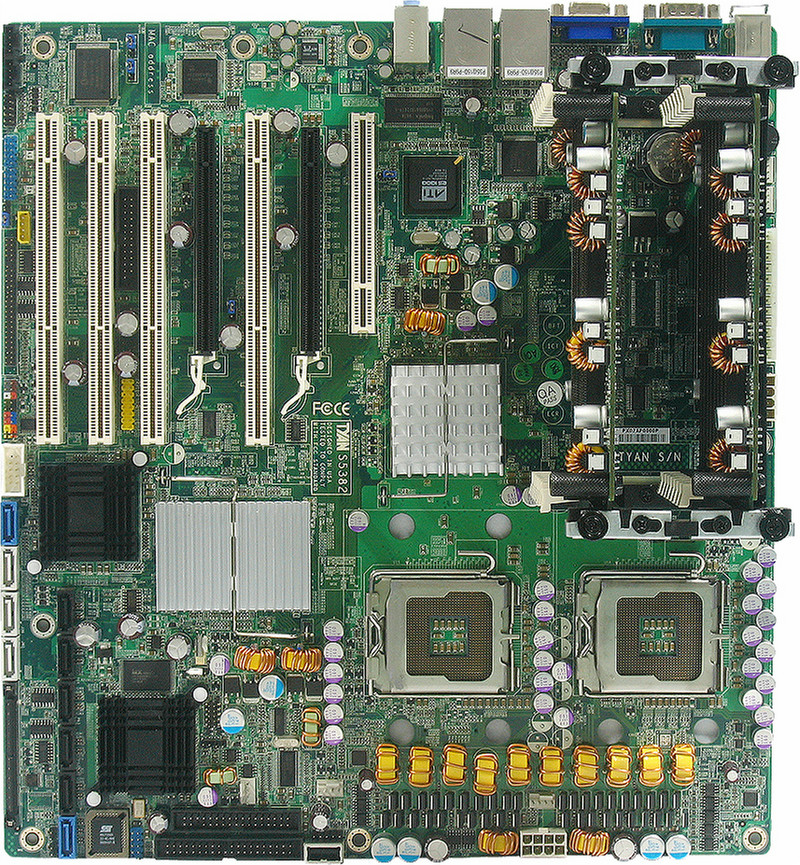

Tyan Tempest i5000PW (S5382). Motherboardformfaktor: Erweitertes ATX, Komponente für: Server. Prozessorhersteller: Intel, Prozessorsockel: LGA 771 (Socket J). Unterstützte Arbeitsspeicher: DDR2-SDRAM, Unterstützte Arbeitsspeichergeschwindigkeit: 533,667 MHz, RAM-Speicher maximal: 64 GB. Festplatten-Schnittstelle: NL-SAS, Parallel ATA, Serial ATA II, RAID Level: 1, 5, 10, 1E. Motherboard Chipsatz: Intel 5000P
