性能
| 主板元件 |
ATX |
| 音频系统 |
Realtek ALC892 |
基本輸出輸入系統/BIOS
| BIOS内存大小 |
8 MB |
| 基本输入输出系统类型 |
AMI |
| ACPI的版本 |
1.1 |
内置输入/输出系统
| USB 2.0接口 |
3 |
| 串列ATA连接器数量 |
6 |
| ATX电源接头 |
Y |
| PCI Express电源连接器（6针） |
1 |
| 软盘驱动器接口 |
Y |
| CD/AUX音频输入 |
Y |
| CPU风扇接口 |
Y |
| COM连接器数量 |
1 |
其他功能
| 控制器接口类型 |
SATAII |
| 专用功能部件 |
- ASRock OC Tuner\n- Intelligent Energy Saver\n- Instant Boot\n- ASRock Instant Flash\n- ASRock OC DNA\n- Hybrid Booster:\n - CPU Frequency Stepless Control\n - ASRock U-COP\n - Boot Failure Guard (B.F.G.) |
联网
| 网路唤醒功能 |
Y |
| 网路功能 |
10/100/1000 Mb/s |
内存参数
| 无错误检测和更正 |
Y |
| 內存插槽数量 |
4 |
| 最大内部存储 |
16 GB |
扩展槽
| PCI 插槽 |
3 |
| PCI Express x16 插槽 |
1 |
| PCI Express × 1插槽 |
2 |
背板输出端口
| PS/2连接埠数量 |
2 |
| 耳机输出端口 |
1 |
| S/PDIF输出接口 |
Y |
| 麦克风/音频输入插孔 |
Y |
| eSATA端口数量 |
1 |
| USB 3.0（第 1代3.1）Type-A 端口数量 |
1 |
另外
| 主板晶片 |
AMD 770 |
| 以太网路(RJ-45)连接接口数量 |
1 |

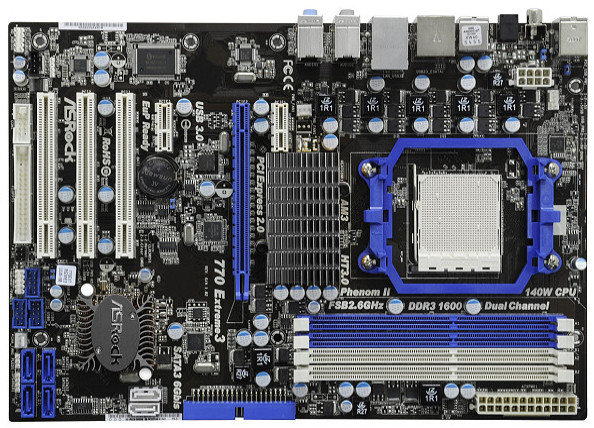

770 Extreme3 - Support Phenom II X6 CPU, USB 3.0, SATA3, 4 x DDR3 DIMM, ATX, AMD 770+AMD SB710, 7.1 CH HD Audio
1. Phenom II X6 6-Core CPU Ready
2. ASRock DuraCap (2.5 x longer life time), 100% Japan-made high-quality Conductive Polymer Capacitors
3. Supports CPU up to 140W
4. Supports AMD OverDrive™ with ACC feature (Advanced Clock Calibration)
5. Supports Dual Channel DDR3 1600
6. 2 x SATA3 6.0 Gb/s connectors, 1 x USB 3.0 port, 1 x eSATAII Connector, PCIE Gigabit LAN
7. Supports ASRock Instant Boot, Instant Flash, OC Tuner, IES, OC DNA
8. 7.1 CH HD Audio with Content Protection (Realtek ALC892 Audio Codec), Premium Blu-ray audio support
9. ErP/EuP Ready
* Free Software: CyberLink DVD Suite - OEM and Trial; Creative Sound Blaster X-Fi MB - Trial
USB 3.0
10X Faster Speed! Speed up to 5 Gb/s
Delivering data transfer rates up to 10X faster than USB 2.0 with optimized power efficiency. USB 3.0 technology advances the data transfer rate up to 5Gb/s.
SATA3
Enjoy 6 Gb/s hight transfer speed now!
Maximum your harddisk performance with SATA3.0. SATA3 technology enables the incredible data transfer rate up to 6 Gb/s speed which is 2X faster speed over SATA2
EuP / ErP Reday
EuP / ErP, stands for Energy Using Product, was a provision regulated by European Union to define the power consumption for the completed system. According to EuP / ErP, the total AC power of the completed system shall be under 1.00W in off mode condition. To meet EuP / ErP standard, the EuP / ErP ready motherboard and the EuP / ErP ready power supply are required. (The EuP / ErP ready power supply must meet the standard of 5v standby power efficiency is higher than 50% under 100 mA current consumption.).
Premium Blu-ray Audio
An outstanding technology developed on ASRock motherboard! It provides the excellent audio output of 24-bit/192 kHz with its respective Blu-ray DRM compatible driver/software.
OC DNA
OC DNA, it’s an exclusive utility developed by ASRock’s outstanding RD team, provides a convenient way for user to share the OC settings with others. It helps you to save your overclocking settings under the operating system and simplifies the complicated recording process of overclocking settings. With OC DNA, you can save your OC settings as a profile and send the profile to your friends! Your friends then can load the OC profile to their own system to get the same OC settings as yours!
Instant Boot
ASRock has overcome the technical obstacles and exclusively invented a new technology that allows you to turn on your PC and boot up to Windows® in 4 seconds! ASRock Instant Boot not only excels in the Boot Up speed (3~4 sec.), it also provides clean OS, and saves the most power energy.
Instant Flash
ASRock Instant Flash is an exclusive and the most user-friendly BIOS flash utility developed by ASRock. It is embedded in Flash ROM which is used to update the system BIOS without having to enter operating systems like MS-DOS or Windows.
ASRock Software Suite
ASRock software suite is designed with the customer-oriented concept, delivers the best possible experience for today’s most demanding users.
