图像
| 图形适配器系列 |
AMD |
| 最大图形显示内存 |
512 MB |
内存参数
| 支持的内存类型 |
DDR3-SDRAM |
| 无缓冲内存 |
Y |
| 无错误检测和更正 |
Y |
| 内存插槽类型 |
DIMM |
| 内存通道支持 |
Dual |
| 內存插槽数量 |
2 |
| 最大内部存储 |
16 GB |
性能
| 主板南桥 |
AMD SB710 |
| 音频系统 |
Realtek ALC662 |
| 主板芯片组系列 |
AMD |
| 组件应用 |
PC |
内置输入/输出系统
| ATX电源接头 |
Y |
| USB 2.0接口 |
2 |
| 机箱防盗接口 |
Y |
| CPU风扇接口 |
Y |
| SATA II连接器数量 |
4 |
| 机箱风扇接头数量 |
1 |
基本輸出輸入系統/BIOS
| BIOS内存大小 |
8 MB |
| 基本输入输出系统类型 |
AMI |
| ACPI的版本 |
1.1 |
扩展槽
| PCI 插槽 |
1 |
| PCI Express X16（Gen 2.x）插槽 |
1 |
背板输出端口
| PS/2连接埠数量 |
2 |
| VGA（D-SUB）端口数量 |
1 |
| 麦克风/音频输入插孔 |
Y |
| 耳机输出端口 |
1 |
另外
| 主板晶片 |
AMD 760G |
| 以太网连接器 |
Y |
| 系统总线 |
5.2 GT/s |
| 图形适配器 |
Radeon HD 3000 |
| 以太网路(RJ-45)连接接口数量 |
1 |

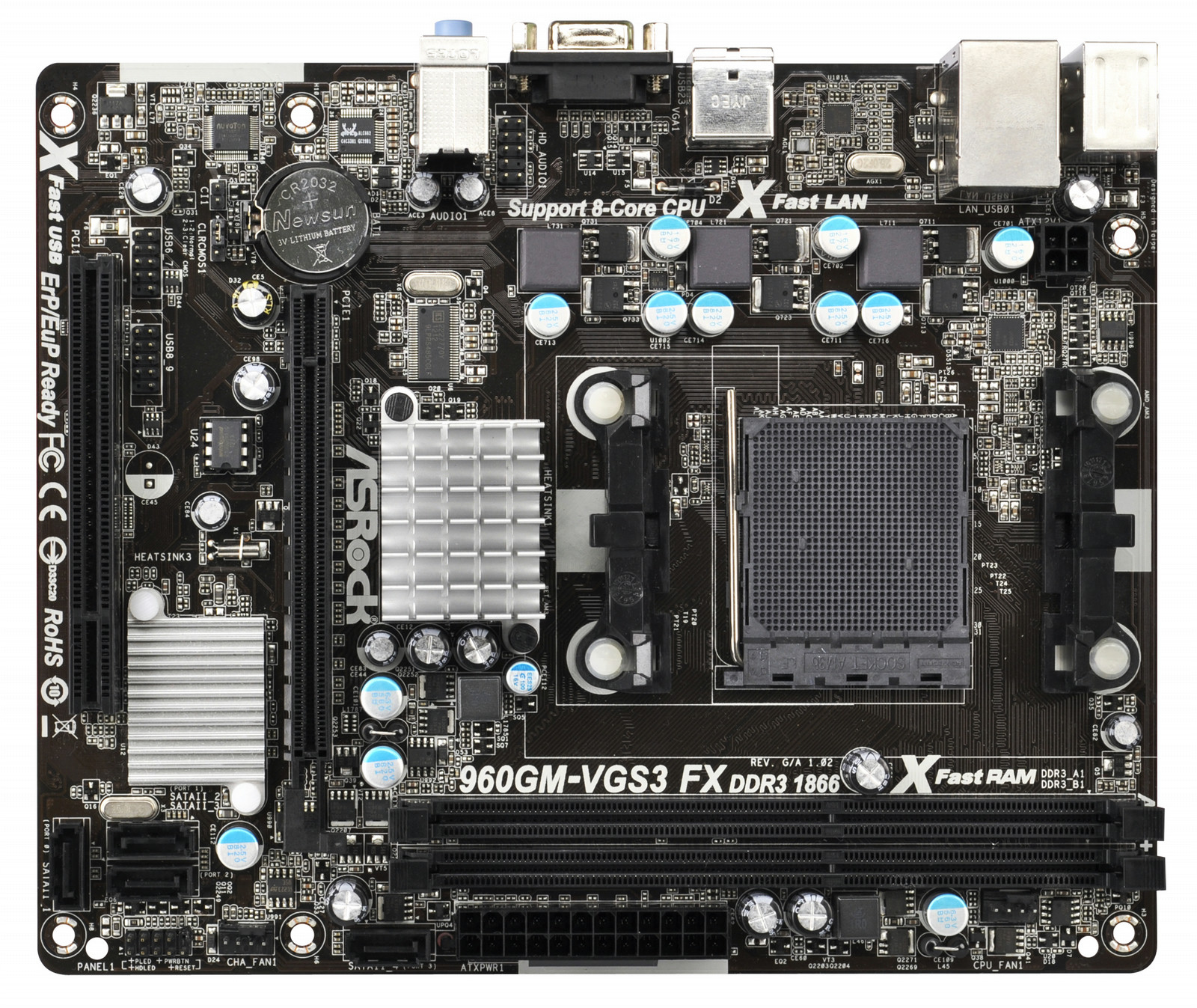

Micro ATX, AM3+, AMD 760G/SB710, 2 x DDR3 DIMM, 8Mb AMI Legal BIOS, AMD Radeon 3000, 5.1 CH HD Audio, Gigabit LAN, 4 x SATA2
<b>X-Boost</b>
ASRock’s X-Boost Technology is a smart auto-overclocking function and is brilliantly designed to unlock the hidden cores of your CPUs. Simply press "X" when turning on the PC, X-Boost will automatically overclock the relative components to get up to 116% performance boost! With the smart X-Boost, overclocking CPU or unlock CPU cores can become a near one-button process.
<b>XFast 555 Technology : XFast RAM / XFast LAN / XFast USB</b>
5X Faster for Photoshop Execution
XFast RAM will create a virtual disk from the system memory to boost the performance. For Photoshop, It can even perform 5X faster than before.
Lower Latency In Game
XFast LAN can lower latency in the game after setting online game priority higher.
USB Performance Comparison
ATTO Disk Benchmark 4K Read
<b>AM3+ 8-Core Processor Support</b>
This board is designed to build up the most powerful system and delivers the most demanding technology for users nowadays. Just enjoy next generation computing with ASRock 8-Core CPU Ready motherboard.
<b>C.C.R. (Combo Cooler Retention Module)</b>
The unique combo cooler retention module greatly improves heat dissipation and is backward compatible with AMD previous AM3/AM2+ coolers.
<b>ASRock App Charger</b>
Simply installing the App Charger driver, it makes your iPhone charge up to 40% faster than before. ASRock App Charger supports continuous charging when your PC enters Standby mode (S1), Suspend to RAM (S3), hibernation mode (S4) or power off (S5). The App Charger technology has been fully applied on ASRock Full series motherboards.
<b>OC DNA</b>
OC DNA, it’s an exclusive utility developed by ASRock’s outstanding RD team, provides a convenient way for user to share the OC settings with others. It helps you to save your overclocking settings under the operating system and simplifies the complicated recording process of overclocking settings. With OC DNA, you can save your OC settings as a profile and send the profile to your friends! Your friends then can load the OC profile to their own system to get the same OC settings as yours!
