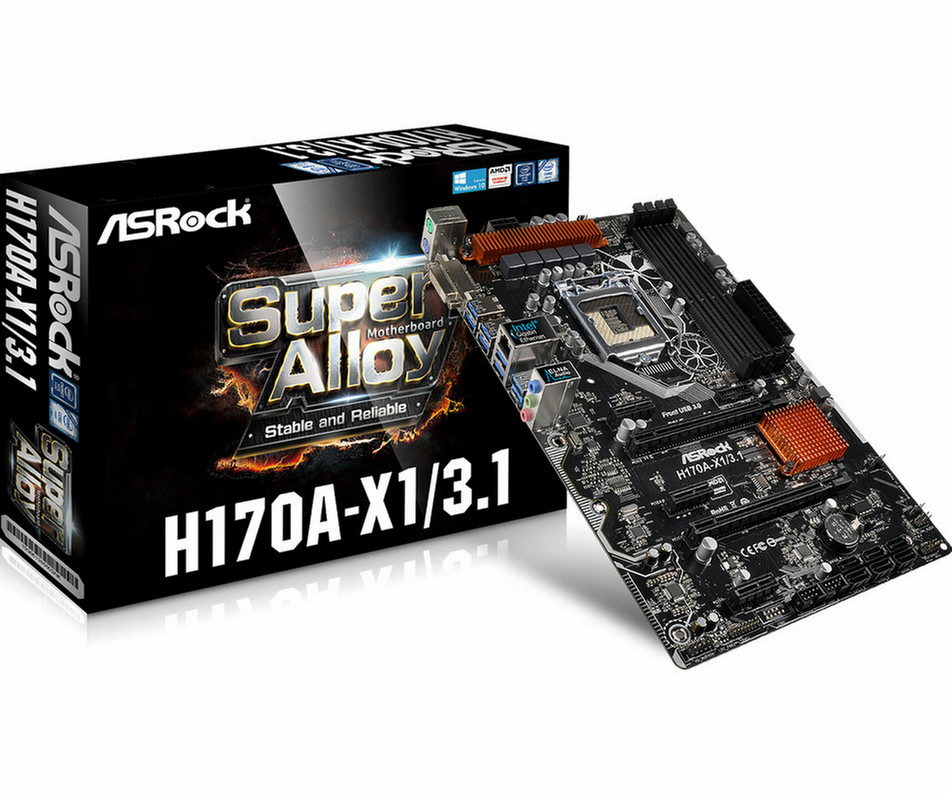

Asrock H170A-X1/3.1 Intel H170 LGA1151 ATX motherboard

Asrock H170A-X1/3.1 Intel H170 LGA1151 ATX motherboard

MPN: H170A-X1/3.1
发送方式:
交货来源:
德国
更新价格... 📣 询问价格 Не поставляется
运输成本:
От

凡购买和价格 (Advertising *)

顶部
в наличии
* Alle Preise inkl. der jeweils geltenden gesetzlichen Mehrwertsteuer, ggfs. zzgl. Versandkosten. Alle Angaben ohne Gewähr. Preisänderungen sind in der Zwischenzeit möglich.

技术特点

顶部

性能

主板元件 ATX
主板芯片组系列 Intel
英特尔® 极限内存认证标准 (Intel® XMP) Y
PC健康监测 CPU, FAN, Temperature, Voltage
音频系统 Realtek ALC892
组件应用 PC
冷却方式 Passive

内存参数

可支持内存时钟速度 2133 MHz
无错误检测和更正 Y
无缓冲内存 Y
支持的内存类型 DDR4-SDRAM
内存插槽类型 DIMM
內存插槽数量 4
最大内部存储 64 GB

基本輸出輸入系統/BIOS

BIOS内存大小 16 MB
基本输入输出系统类型 UEFI AMI
ACPI的版本 5.0

内置输入/输出系统

USB 2.0接口 2
ATX电源接头 Y
TPM(可信任安全平台模组)接口 Y
USB 3.0(第 1代3.1)连接器 1
SATA III连接器数量 6
PS电源接口 (8针) Y
CPU风扇接口 Y
机箱风扇接头数量 2
前面板音频接头 Y

联网

网路唤醒功能 Y

背板输出端口

DVI-D接口数量 1
USB3.1(第 2 代3.1)Type-A 端口数量 1
USB3.1(第 2 代3.1)Type-C 端口数量 1
PS/2连接埠数量 2
USB 3.0(第 1代3.1)Type-A 端口数量 6

处理器的特殊功能

英特尔®中小企业通锐软件(SBA) Y
英特尔®Turbo Boost技术 2.0

扩展槽

PCI Express X16(Gen 3.x)插槽 2
PCI Express x1(Gen 3.x)插槽 3

内容包装

包括驱动器 Y

图像

分立图形支持 Y
HDCP Y

另外

主板晶片 Intel H170
以太网连接器 Y
以太网路(RJ-45)连接接口数量 1
Socket 1151, DDR4, DVI-D, USB 3.1 Premium 50A Power Choke
Compared to traditional chokes, ASRock’s premium 50A power chokes effectively make the saturation current up to three times better, thus providing enhanced and improved Vcore voltage to the motherboard.

High Density Glass Fabric PCB
What you’ve never understood about your computer is that it is scared to death of water, H2O, humidity or whatever you’d like to name it. And even though you do not see the water, actually there may be lots of excessive moist in the air killing your motherboard silently and slowly. No, your motherboard doesn’t melt when in contact with water like the wicked witch of the west, but it dies of short circuit. Luckily, ASRock has a new High Density Glass Fabric PCB design that reduces the gaps between the PCB layers to protect the motherboard against electrical shorts caused by humidity.

DDR4 Non-Z OC
Overclocking DDR4 memory modules is no longer limited to Z170 models. With ASRock’s DDR4 Non-Z OC users may overclock the memory of H170/Q170/B150/H110/C232 models using certain memory sticks, such as Kingston or Samsung memory DIMMs. The enhanced CAS latency brings up to 5% performance boost.

USB 3.1 10 Gb/s Type-A + C
A pair of onboard Type-A and Type-C USB 3.1 connectors for delivering up to 10Gbps data transfer rates.

Supports NVIDIA® Quadro and AMD FirePro Workstation Graphics Cards
Two PCIe Gen3 x16 slots that not only support ordinary graphics cards, but are also fully compatible with professional NVIDIA® Quadro and AMD FirePro workstation graphics solutions.
* This motherboard has passed SPECviewperf 12 tests using NVIDIA® Quadro® & NVS™ graphics cards.

UEFI EZ Mode
EZ mode is a dashboard which contains multiple readings of the system’s current status. You can check the most crucial information of your system, such as CPU speed, DRAM frequency, SATA information, fan speed, etc.

Intel® LAN
Intel® LAN provides the best throughput performance, lower CPU utilization, enhanced stability and is able to deliver ultimate network experience to users!

Supports DDR4 2133
Supports the latest DDR4 memory modules and most extreme memory performance!

ELNA Audio Caps
Who says high quality audio is only available on high-end motherboards? ASRock applied ELNA audio capacitors on mainstream and entry-level motherboards! Compared with traditional solid caps, the leakage current of ELNA audio caps is merely 3uA. This is the key to reduce noise level significantly and satisfy even the pickiest audiophiles.

Solid Capacitor Design
ASRock applied solid capacitors on this motherboard. With these solid caps, this motherboard is allowed to perform more stably and ensure longer lifetime.

Flexible PCIe Slots
A new flexible PCIe Gen3 x1 slot design that allows users to install add-on cards of all kinds of sizes.
* The bandwidth of your devices will be limited to PCIe Gen3 x1.

A-Tuning
A-Tuning is ASRock's multi purpose software suite with a new interface, more new features and improved utilities.

Win 7 USB Patcher
Due to chipset limitation, when you want to install Windows® 7 on this MB, you may need to use “Win 7 USB Patcher” to create a new ISO file, or check this page for more details on how to install Windows® 7 OS.

Live Update & APP Shop
ASRock Live Update & APP Shop is designed for your convenience. We provide various apps and support software for users to download. You can also easily optimize your system and keep your motherboard up to date with ASRock Live Update & APP Shop.

Full Spike Protection
Some sensitive digital components on the motherboard are vulnerable to power surges, the excessive current may cause your system to malfunction immediately. ASRock Full Spike Protection includes various technologies to prevent your motherboard’s components from being damaged by these unexpected voltage spikes.

ASRock Cloud
ASRock Cloud* technology makes your mobile devices connect to your PC seamlessly and supports multi devices for accessing File Explorer cloud service simultaneously!

USB Key
In a world where time is money, why waste precious time everyday typing usernames to log in to Windows? Why should we even bother memorizing those foot long passwords? Nobody has time for that! Just plug in the USB Key and let your computer log in to windows automatically!

Restart to UEFI
Fast Boot is so fast that it is impossible for users to enter the UEFI setup utility during POST. Therefore, ASRock Restart to UEFI technology allows users to easily enter the UEFI setup utility automatically when turning on the PC next time. It is designed for those who constantly need to enter the UEFI setup utility.

ASRock OMG (Online Management Guard)
Limit and control your children's time spent on the internet. ASRock OMG (Online Management Guard) technology allows you to establish an internet curfew or restrict internet access at specified times. Administrators are able to schedule the starting and ending hours of internet access granted to other users.

UEFI Tech Service
Contact ASRock Tech Service by sending a support request from the UEFI setup utility if you are having trouble with your personal computer. Users may try to choose the category of the issue they have encountered, describe the problem in detail, and then attach an optional picture or log file for our technical support team.

Easy Driver Installer
For users that don’t have an optical disk drive to install the drivers from our support CD, Easy Driver Installer is a handy tool in the UEFI that installs the LAN driver to your system via an USB storage device, then downloads and installs the other required drivers automatically through the internet. Completely no CD or optical disk drive required!

ASRock XFast RAM fully utilizes the memory space that cannot be used under Windows® 32-bit operating systems. It shortens the loading time of previously visited websites, making web surfing faster than ever. And it also boosts the speed of Adobe Photoshop 5 times faster. Another advantage of ASRock XFast RAM is that it reduces the frequency of accessing your SSDs or HDDs in order to extend their lifespan.

When Internet Explorer loads very slowly for no clear reason, it's usually due to inefficient management. ASRock is rolling out super efficient web management in the motherboard industry. XFast LAN is a convenient tool that controls internet related applications easily and efficiently. Creating a perfect Internet environment, all you need is a smart manager. ASRock XFast LAN allows you to enjoy more speed, easier multitasking, enhanced multimedia experience, and more – all without weighing you down.
