背板输出端口
| VGA（D-SUB）端口数量 |
1 |
| 麦克风/音频输入插孔 |
Y |
| 耳机输出端口 |
1 |
| PS/2连接埠数量 |
2 |
| COM接口数量 |
1 |
| 串口数量 |
1 |
性能
| 音频系统 |
HD Audio |
| PC健康监测 |
Temperature, Power supply, FAN, CPU |
| 组件应用 |
PC |
| 冷却方式 |
Passive |
| 主板芯片组系列 |
NVIDIA |
处理器
| 处理器热功耗（最大） |
95 W |
| 核心的处理器数量 |
8 |
| 支持处理器前端总线 |
1000 MHz |
内存参数
| 内存插槽类型 |
DIMM |
| 内存通道支持 |
Dual |
| 支持的内存类型 |
DDR3-SDRAM |
| 內存插槽数量 |
2 |
| 最大内部存储 |
16 GB |
| 无缓冲内存 |
Y |
| 错误更正代码 |
N |
| 无错误检测和更正 |
Y |
内置输入/输出系统
| 前面板音频接头 |
Y |
| CPU风扇接口 |
Y |
| USB 2.0接口 |
2 |
| 串列ATA连接器数量 |
4 |
| 机箱风扇接头数量 |
1 |
| 机箱防盗接口 |
Y |
| 周边（莫仕）电 源连接器（4针） |
1 |
| SATA II连接器数量 |
4 |
| 软盘驱动器接口 |
Y |
| ATX电源接头 |
Y |
基本輸出輸入系統/BIOS
| BIOS内存大小 |
8 MB |
| 基本输入输出系统类型 |
AMI |
扩展槽
| PCI Express x16 插槽 |
1 |
| PCI 插槽 |
2 |
| PCI Express × 1插槽 |
1 |
内容包装
| 包括驱动器 |
Y |
| 试用软件 |
AntiVirus, Start8 |
图像
| 图形适配器系列 |
NVIDIA |
| 最大图形显示内存 |
256 MB |
| DirectX版本 |
9.0 |
另外
| 以太网路(RJ-45)连接接口数量 |
1 |
| 以太网连接器 |
Y |
| 系统总线 |
2 GT/s |
| 图形适配器 |
GeForce 7025 |
| 主板晶片 |
NVIDIA nForce 630a |

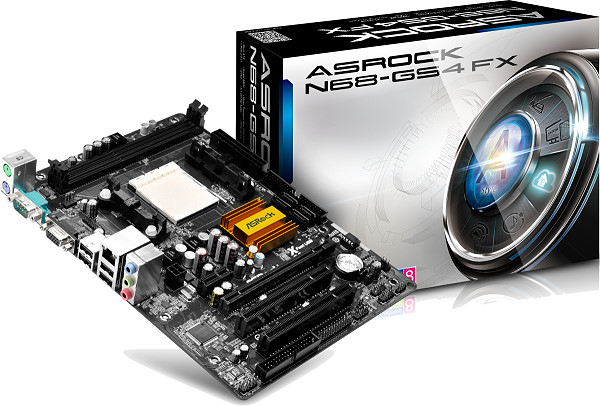

Micro ATX, Socket AM3+, NVIDIA GeForce 7025, 2xDDR3, 4xSATA2, 6xUSB 2.0, 2xPS/2, D-Sub, Serial Port, Gigabit Ethernet
<b>AM3+ 8-Core Processor Support</b>
This board is designed to build up the most powerful system and delivers the most demanding technology for users nowadays. Just enjoy next generation computing with ASRock 8-Core CPU Ready motherboard.
<b>High Density Glass Fabric PCB</b>
What you’ve never understood about your computer is that it is scared to death of water, H2O, humidity or whatever you’d like to name it. And even though you do not see the water, actually there may be lots of excessive moist in the air killing your motherboard silently and slowly. No, your motherboard doesn’t melt when in contact with water like the wicked witch of the west, but it dies of short circuit. Luckily, ASRock has a new High Density Glass Fabric PCB design that reduces the gaps between the PCB layers to protect the motherboard against electrical shorts caused by humidity.
<b>C.C.R. (Combo Cooler Retention Module)</b>
The unique combo cooler retention module greatly improves heat dissipation and is backward compatible with AMD previous AM3/AM2+ coolers.
<b>Instant Boot</b>
ASRock has overcome the technical obstacles and exclusively invented a new technology that allows you to turn on your PC and boot up to Windows in 4 seconds! ASRock Instant Boot not only excels in the Boot Up speed (3~4 sec.), it also provides clean OS, and saves the most power energy.
<b>Instant Flash</b>
ASRock Instant Flash is an exclusive and the most user-friendly BIOS flash utility developed by ASRock. It is embedded in Flash ROM which is used to update the system BIOS without having to enter operating systems like MS-DOS or Windows.
<b>Fast Charge & Charge Anytime</b>
Simply installing the App Charger driver, it makes your iPhone charge up to 40% faster than before. ASRock App Charger supports continuous charging when your PC enters Standby mode (S1), Suspend to RAM (S3), hibernation mode (S4) or power off (S5). The App Charger technology has been fully applied on ASRock Full series motherboards.
<b>OC DNA</b>
OC DNA, it’s an exclusive utility developed by ASRock’s outstanding RD team, provides a convenient way for user to share the OC settings with others. It helps you to save your overclocking settings under the operating system and simplifies the complicated recording process of overclocking settings. With OC DNA, you can save your OC settings as a profile and send the profile to your friends! Your friends then can load the OC profile to their own system to get the same OC settings as yours!
