性能
| 主板元件 |
Extended ATX |
| 超频功能 |
Untied Overclocking Technology |
| 主板芯片组系列 |
Intel |
| 音频输出通道数量 |
7.1 channels |
| 英特尔® 极限内存认证标准 （Intel® XMP) |
Y |
| 音频系统 |
HD Audio with Content Protection (Realtek ALC892 Audio Codec) |
| 组件应用 |
PC |
内存参数
| 可支持内存时钟速度 |
2133, 2400, 2800, 2933, 3000 MHz |
| 无错误检测和更正 |
Y |
| 错误更正代码 |
Y |
| 无缓冲内存 |
Y |
| 支持的内存类型 |
DDR4-SDRAM |
| 注册 |
Y |
| 内存通道支持 |
Quad |
| 内存插槽类型 |
DIMM |
| 內存插槽数量 |
8 |
| 最大内部存储 |
128 GB |
基本輸出輸入系統/BIOS
| BIOS内存大小 |
16 MB |
| 基本输入输出系统类型 |
UEFI AMI |
| 清除CMOS按钮 |
Y |
| ACPI的版本 |
5.0 |
处理器
| SMP（适用于表面安装的封装形式）处理器的最大数量 |
1 |
内置输入/输出系统
| USB 2.0接口 |
2 |
| S/PDIF输出端口 |
Y |
| ATX电源接头 |
Y |
| 风扇电源接头 |
Y |
| PCI Express电源连接器（6针） |
2 |
| USB 3.0（第 1代3.1）连接器 |
2 |
| SATA III连接器数量 |
10 |
| 支持存储驱动器界面 |
M.2, SAS-3, Serial ATA III |
| CPU风扇接口 |
Y |
| COM连接器数量 |
1 |
| 机箱风扇接头数量 |
3 |
| 前面板音频接头 |
Y |
| SATA Express 连接器数量 |
2 |
| M.2 (M) 插槽数量 |
2 |
| 前面板接头 |
Y |
| 12V 电源接头 |
Y |
| 音频连接器 |
Y |
联网
| 网路唤醒功能 |
Y |
| 局域网控制器 |
Intel I211-AT, Intel I218V |
| 以太网接口类型 |
Gigabit Ethernet |
背板输出端口
| 组合耳机/麦克风接口 |
Y |
| PS/2连接埠数量 |
1 |
| 耳机输出端口 |
1 |
| S/PDIF输出接口 |
Y |
| 麦克风/音频输入插孔 |
Y |
| eSATA端口数量 |
2 |
| USB 3.0（第 1代3.1）Type-A 端口数量 |
4 |
扩展槽
| PCI Express x16 插槽 |
5 |
| PCI Express X16（Gen 3.x）插槽 |
5 |
图像
| 图形适配器系列 |
AMD, NVIDIA |
| 分立图形支持 |
Y |
内容包装
| 包括驱动器 |
Y |
| 包括的实用程序 |
Y |
| 快速安装向导 |
Y |
另外
| 主板晶片 |
Intel X99 |
| 以太网连接器 |
Y |
| 以太网路(RJ-45)连接接口数量 |
2 |

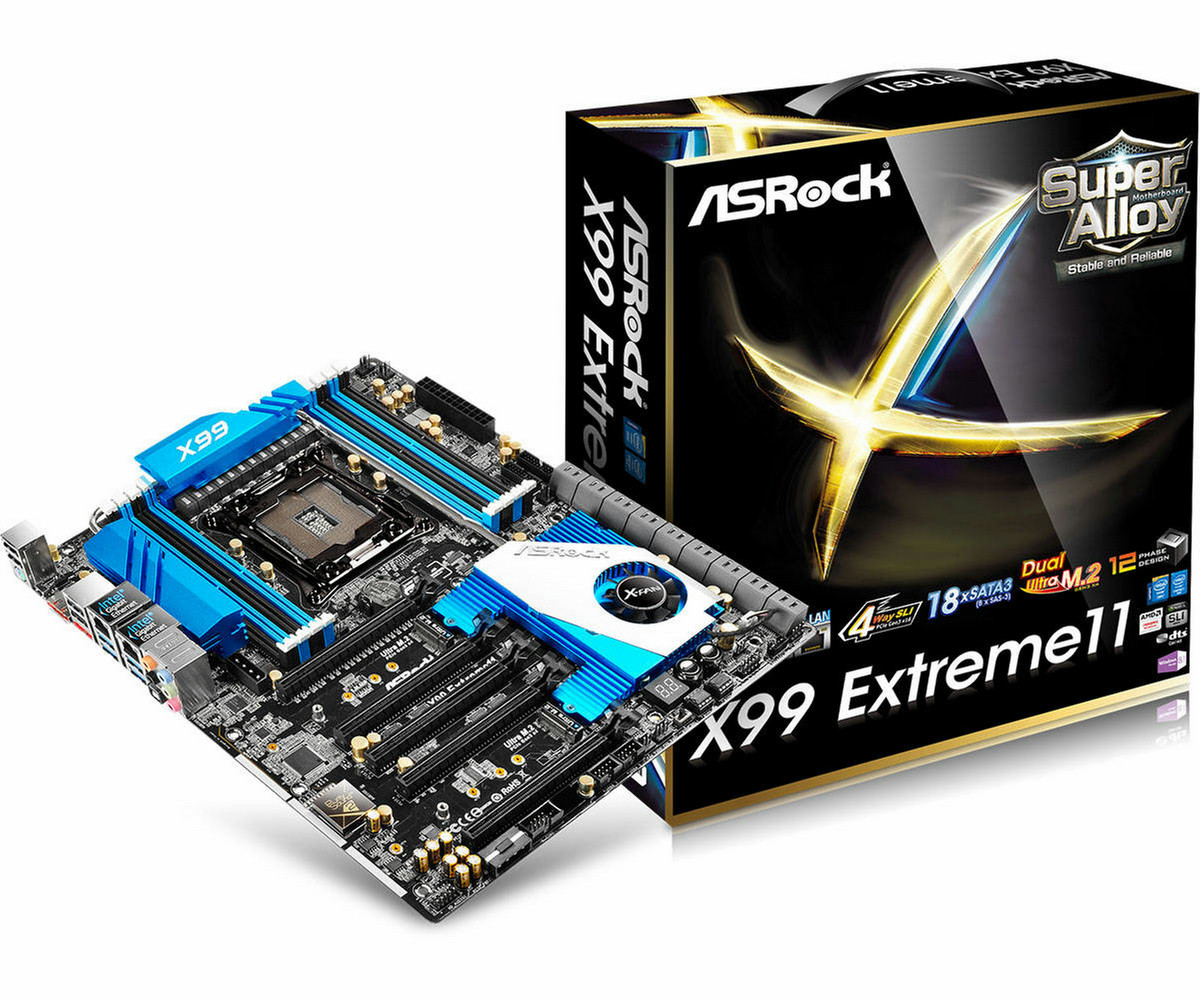

EATX, X99, LGA 2011-3, 8 x DDR4 DIMM, 5 x PCIe 3.0 x16, 1 x Optical SPDIF, 4 x USB 3.0, 4 x USB 2.0, 10 x SATA 3, 8 x SAS3, 2 x Ultra M.2, 2 x eSATA, 7.1 CH HD Audio
A-Tuning
A-Tuning is ASRock's multi purpose software suite with a new interface, more new features and improved utilities, including XFast RAM and a whole lot more.
USB Key
In a world where time is money, why waste precious time everyday typing usernames to log in to Windows? Why should we even bother memorizing those foot long passwords? Nobody has time for that! Just plug in the USB Key and let your computer log in to windows automatically!
Restart to UEFI
Fast Boot is so fast that it is impossible for users to enter the UEFI setup utility during POST. Therefore, ASRock Restart to UEFI technology allows users to easily enter the UEFI setup utility automatically when turning on the PC next time. It is designed for those who constantly need to enter the UEFI setup utility.
ASRock OMG (Online Management Guard)
Limit and control your children's time spent on the internet. ASRock OMG (Online Management Guard) technology allows you to establish an internet curfew or restrict internet access at specified times. Administrators are able to schedule the starting and ending hours of internet access granted to other users.
UEFI Tech Service
Contact ASRock Tech Service by sending a support request from the UEFI setup utility if you are having trouble with your personal computer. Users may try to choose the category of the issue they have encountered, describe the problem in detail, and then attach an optional picture or log file for our technical support team.
Dehumidifier
Dampness kills most electronics, so it's a better idea to keep your personal computer dry. Now users may prevent motherboard damages due to dampness by enabling Dehumidifier. When it is enabled, the computer will power on automatically to dehumidify the system after entering S4/S5 state.
Easy Driver Installer
For users that don’t have an optical disk drive to install the drivers from our support CD, Easy Driver Installer is a handy tool in the UEFI that installs the LAN driver to your system via an USB storage device, then downloads and installs the other required drivers automatically through the internet. Completely no CD or optical disk drive required!
