性能
主板元件 |
Micro ATX |
主板芯片组系列 |
Intel |
可信任平台模组(全面生产管理) |
Y |
音频系统 |
SupremeFX Shielding |
组件应用 |
PC |
内存参数
可支持内存时钟速度 |
2133 MHz |
无错误检测和更正 |
Y |
无缓冲内存 |
Y |
支持的内存类型 |
DDR4-SDRAM |
内存插槽类型 |
DIMM |
支持的内存模块容量 |
4GB, 8GB, 16GB |
內存插槽数量 |
4 |
最大内部存储 |
64 GB |
基本輸出輸入系統/BIOS
基本输入输出系统类型 |
UEFI AMI |
清除CMOS跳线 |
Y |
ACPI的版本 |
5.0 |
内置输入/输出系统
USB 2.0接口 |
1 |
ATX电源接头 |
Y |
TPM(可信任安全平台模组)接口 |
Y |
USB 3.0(第 1代3.1)连接器 |
1 |
SATA III连接器数量 |
6 |
PS电源接口 (8针) |
Y |
CPU风扇接口 |
Y |
机箱风扇接头数量 |
1 |
前面板音频接头 |
Y |
处理器的特殊功能
英特尔®快速同步视频技术 |
Y |
英特尔® 内线™ |
Y |
英特尔®Turbo Boost技术 |
2.0 |
英特尔®清晰视频高清技术 |
Y |
扩展槽
PCI Express X16(Gen 3.x)插槽 |
1 |
PCI Express x1(Gen 3.x)插槽 |
2 |
背板输出端口
PS/2连接埠数量 |
1 |
耳机输出端口 |
1 |
麦克风/音频输入插孔 |
Y |
USB 3.0(第 1代3.1)Type-A 端口数量 |
4 |
HDMI端口数量 |
1 |
处理器
英特尔®酷睿™ i3/ i5 / i7 系列 |
i3-6xxx, i5-6xxx, i7-6xxx |
另外
InTru™3D技术 |
Y |
主板晶片 |
Intel B150 |
以太网连接器 |
Y |
以太网路(RJ-45)连接接口数量 |
1 |

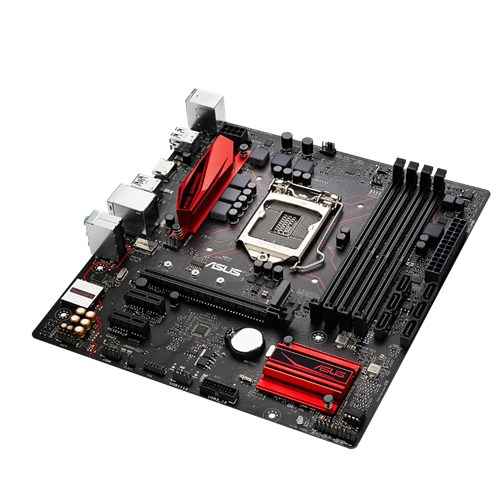

B150M PRO GAMING, 4 DIMM's DDR4 2133MHz, LGA1151, 6x SATA 6Gb/s, M.2 Socket 3
- LGA1151 socket for 6th-genereation Intel® Core™ i7 / Core i5 / Core i3, Pentium® and Celeron processors
- Dual-channel DDR4 2133 support
- SupremeFX: Flawless audio that makes you part of the game
- Intel Gigabit Ethernet and LANGuard: Top-speed protected networking
- M.2: Ultra-speedy transfers for faster gaming
- Gamer's Guardian: Highly-durable components and smart DIY features
Shielded audio, superior sound
ASUS-exclusive SupremeFX technology delivers high-fidelity, near-lossless audio no matter how frantic your game becomes. The purity and stability of the remarkable 115dB signal-to-noise ratio (SNR) is assured, with a shielded design, electromagnetic-interference (EMI) cover and voltage-protected 5V power supply. Supreme FX's superior components, including the trusted Realtek ALC1150 codec, maximize acoustic performance and eliminate interference – so you hear only the very best from your gaming headset or speakers
Only the quickest shot survive, so B150M Pro Gaming banishes lag — letting you annihilate your foes as fast as your trigger finger! Our engineers pack in only the best networking technology, including tournament-level Intel® Gigabit Ethernet and ASUS-exclusive LANGuard to keep your connection fast, so always fire first and watch your enemies fall.
Signal-coupling technology and premium surface-mounting ensure a more reliable connection and better throughput, plus electrostatically-guarded and surge-protected components (ESD Guards) for 1.9X-greater tolerance to static electricity and 2.5X-greater protection (up to 15KV) against surges!
With x4 PCI Express 3.0/2.0 bandwidth, M.2 supports up to 32Gbit/s data-transfer speeds. It is the perfect choice for an operating system or application drive, making your whole PC or professional apps work as fast as possible
Maxed-out performance means maximum gaming thrills, and with exclusive AI Suite 3's dashboard-style control panel you'll fine-tune almost every aspect of your B150M Pro Gaming-based system. Get the best balance between performance, cooling, stability, efficiency and aesthetics — all via a simple and intuitive interface.
Award-winning BIOS design
The smoothest, slickest mouse-controlled graphical BIOS has been improved to make it even more appealing. Whether you're a PC novice or a seasoned overclocker, the EZ and Advanced Modes help you find your way. In EZ Mode you can get set up very quickly, applying the date and time, fan profiles and Intel Extreme Memory Profile (XMP) memory profiles. Switch to Advanced Mode to set up favorites and shortcuts, record and review recent changes with Last Modified or make notes in Quick Notes.
GAMER'S GUARDIAN FOR REAL-WORLD PROTECTION
Protect your back in the game and let B150M Pro Gaming protect all sides in the real world! Motherboard self-protection with loads of brilliant defenses, including our unique smart DIY features ensures long-term gaming is in your future.
